Isuzu Truck
>>
2006
>>
Ascender 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Pedal View
Pedal View

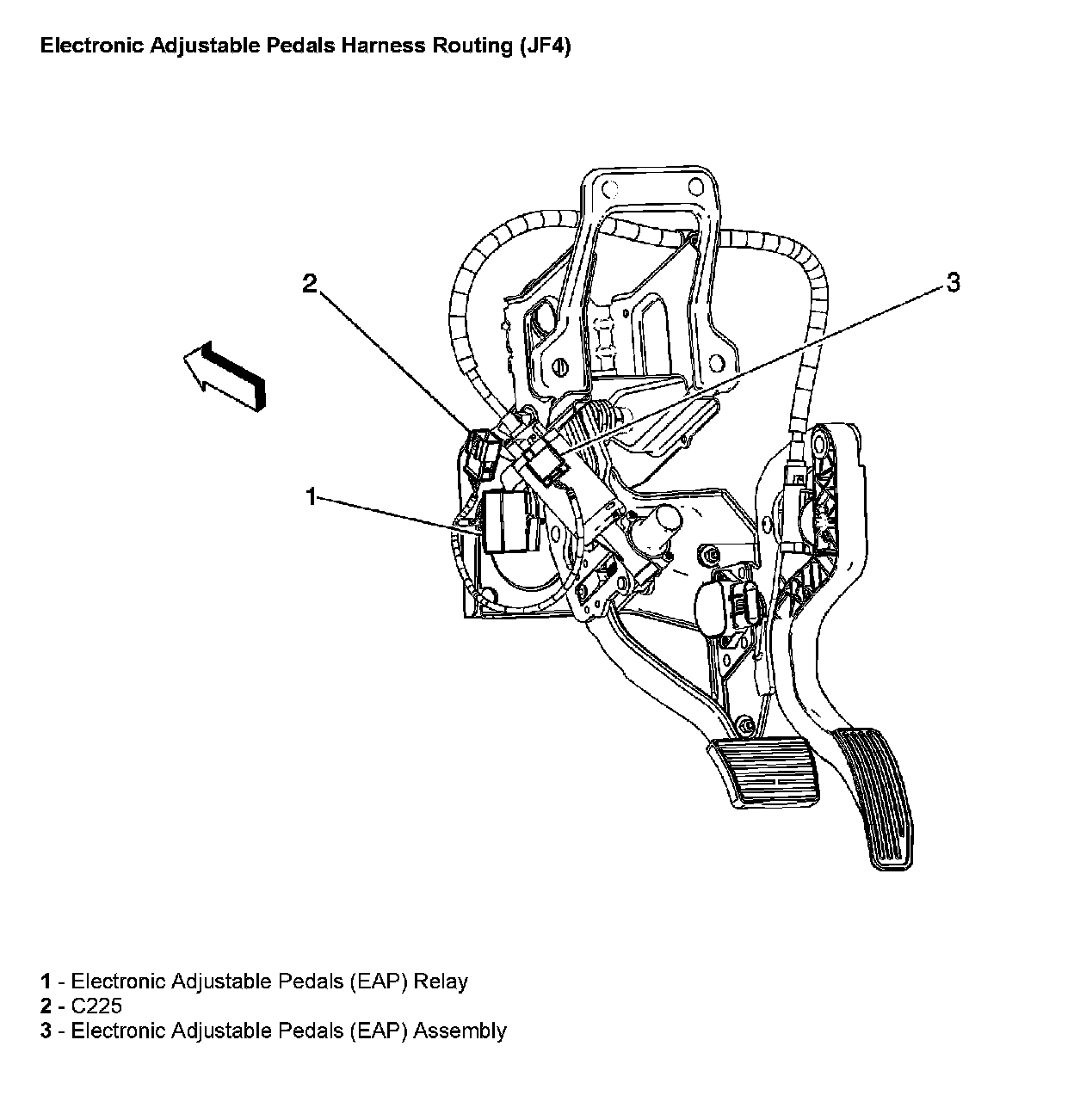

Electronic Adjustable Pedals Harness Routing (With RPO Code JF4):
