Engine Protection Shield Replacement

Engine Protection Shield Replacement

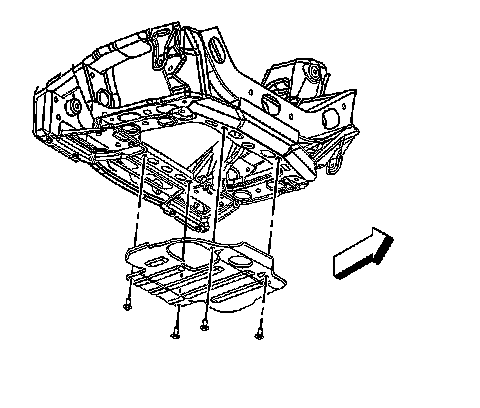

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the engine shield mounting bolts.
3. Remove the engine shield.

Installation Procedure




1. Install the engine shield.

Notice: Refer to Fastener Notice.

2. Install the engine shield mounting bolts.

Tighten the engine shield mounting bolts to 20 N.m (15 lb ft).

3. Lower the vehicle.
