Radiator Support Shield Replacement

Radiator Support Shield Replacement

Removal Procedure




1. Raise and support the vehicle.

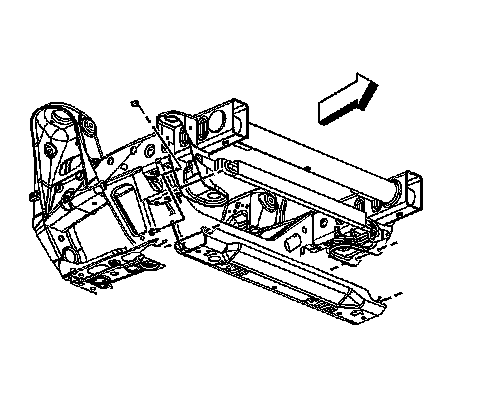

2. Remove the radiator support shield mounting nuts and bolts.
3. Remove the radiator support shield.

Installation Procedure




1. Install the radiator support shield.

Notice: Refer to Fastener Notice.

2. Install the radiator support shield mounting nuts and bolts.

Tighten the radiator support shield mounting nuts to 20 N.m (15 lb ft).

3. Lower the vehicle.
