Engine Control Module

Component Connector End Views

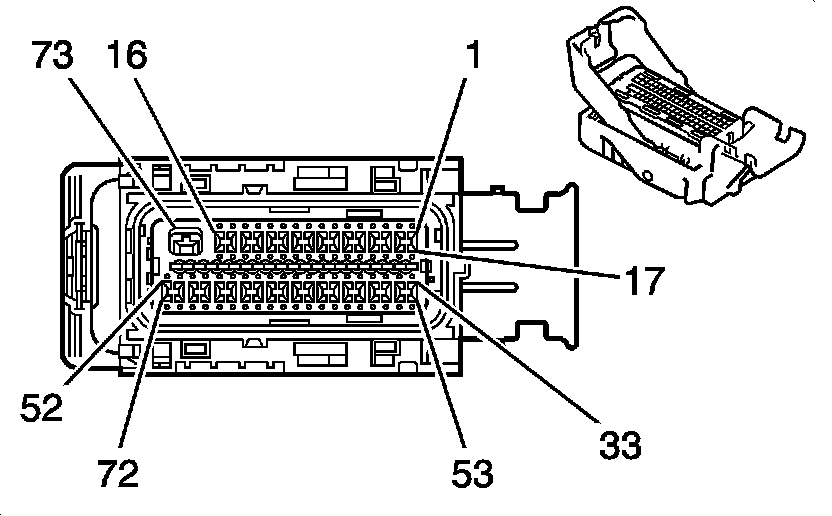

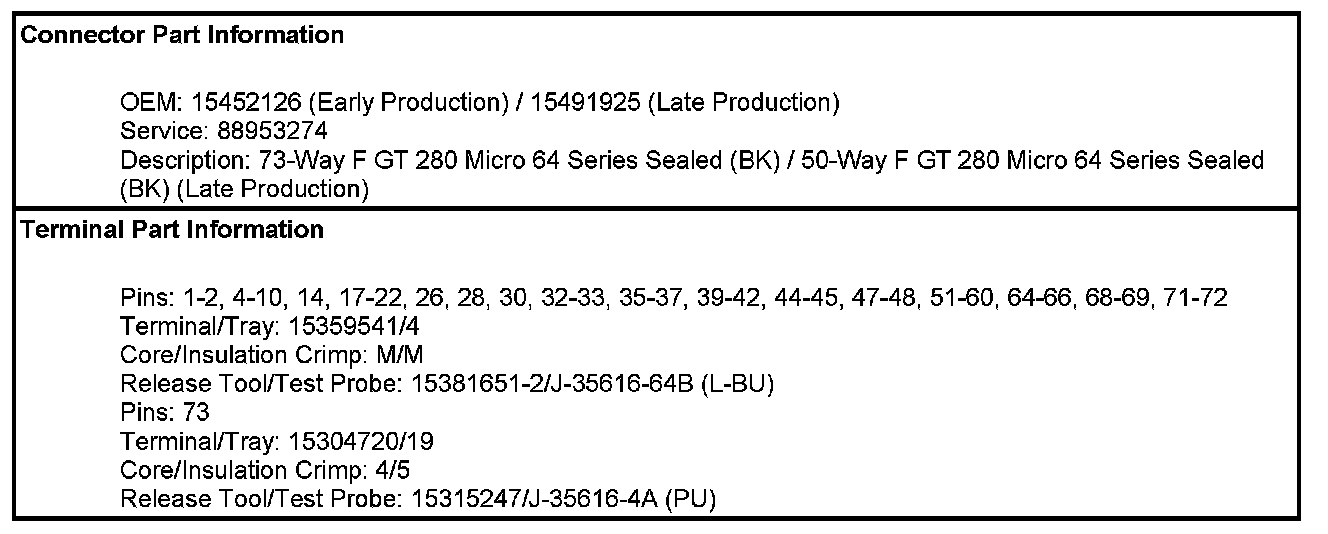

Engine Control Module (ECM) C3

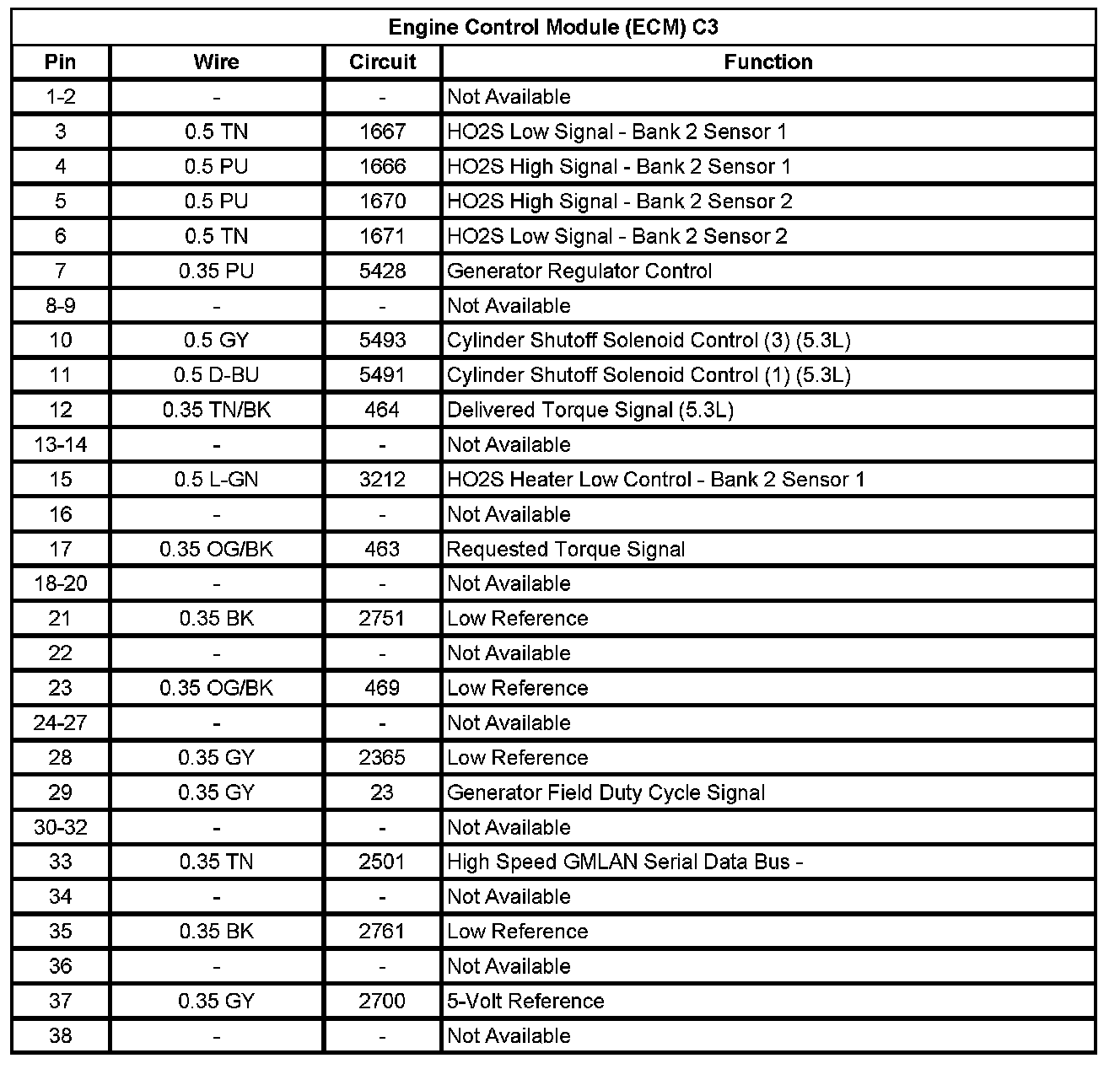

Engine Control Module (ECM) C3 (Pin 1 To 38):

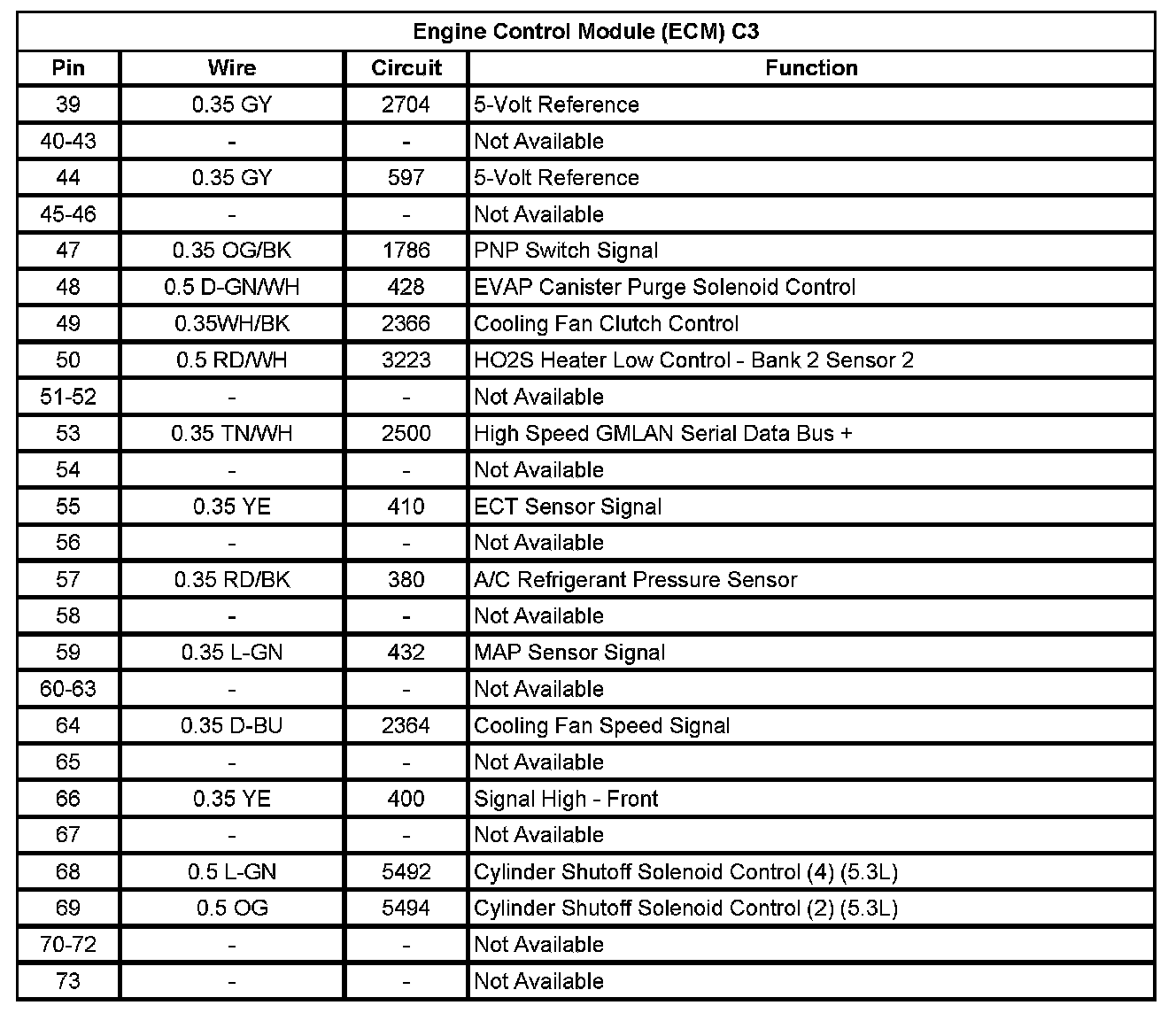

Engine Control Module (ECM) C3 (Pin 39 To 73):

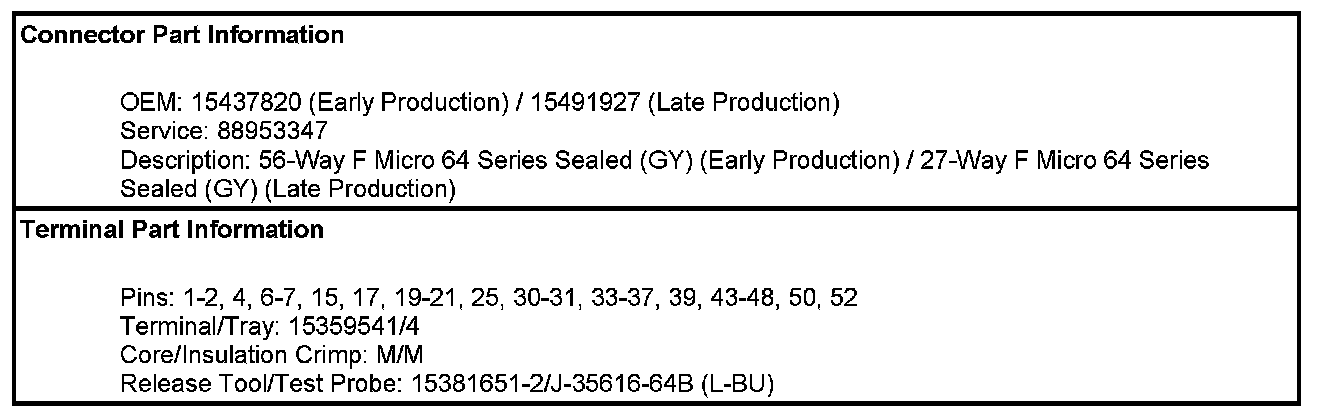

Powertrain Control Module (PCM) X1 (4.2L)

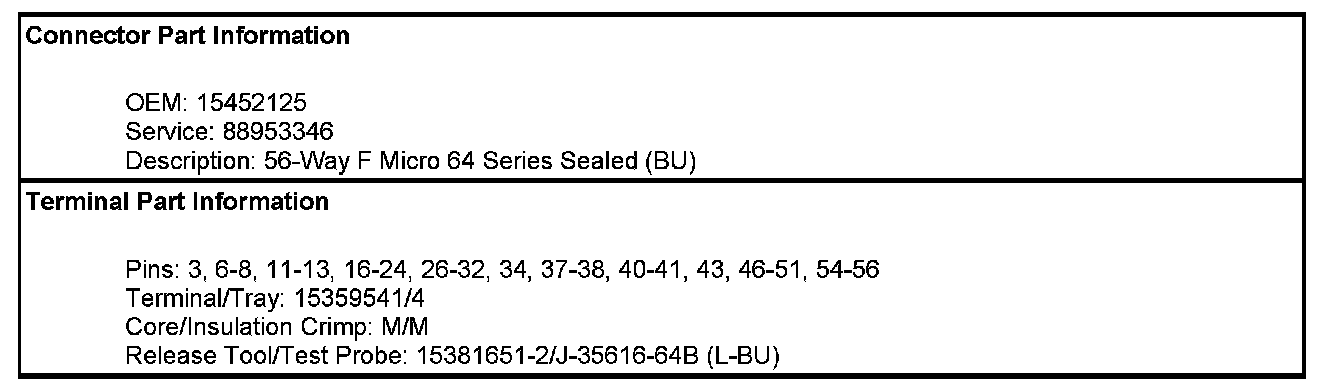

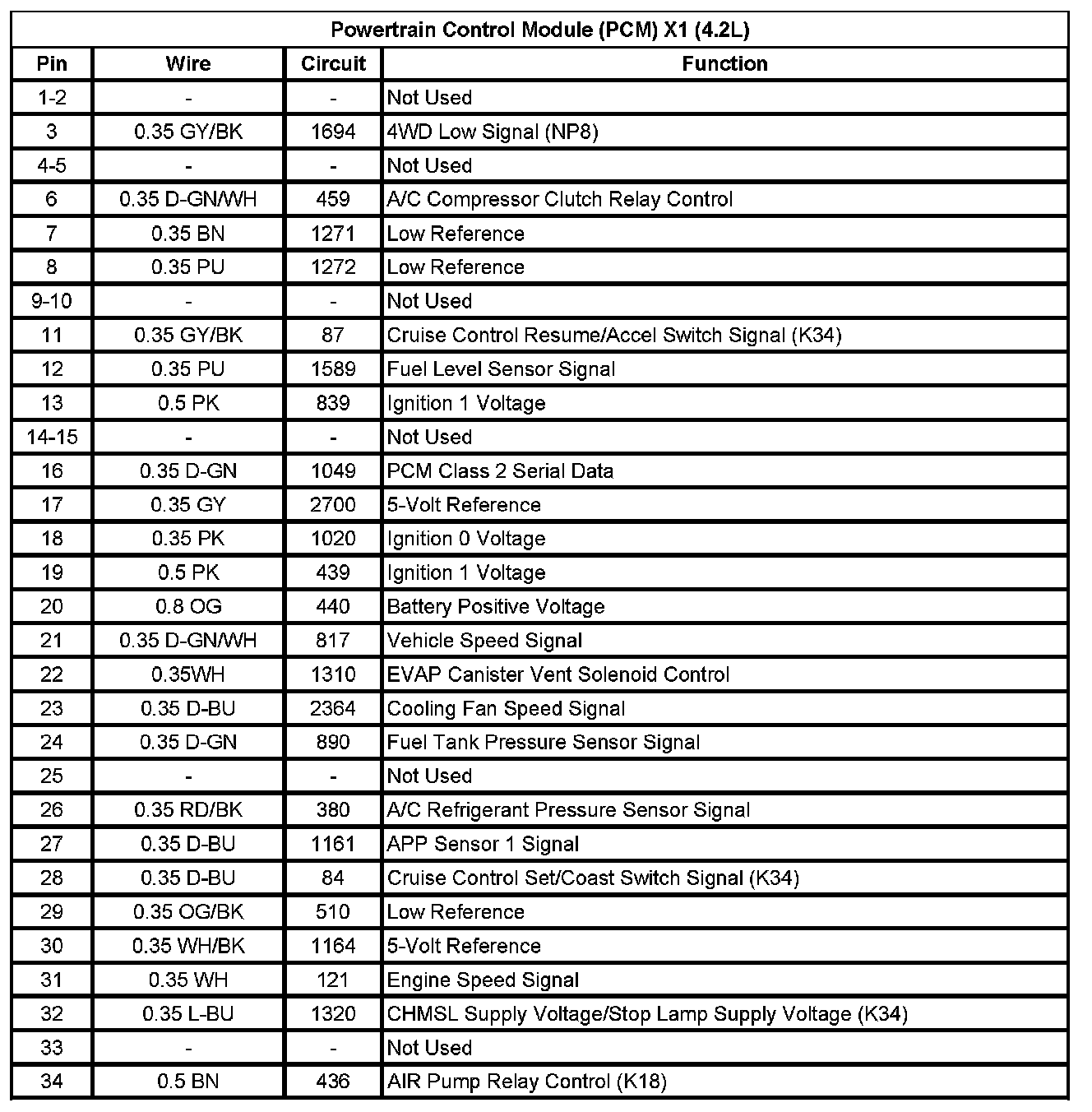

Powertrain Control Module (PCM) X1 (4.2L) (Pin 1 To 34):

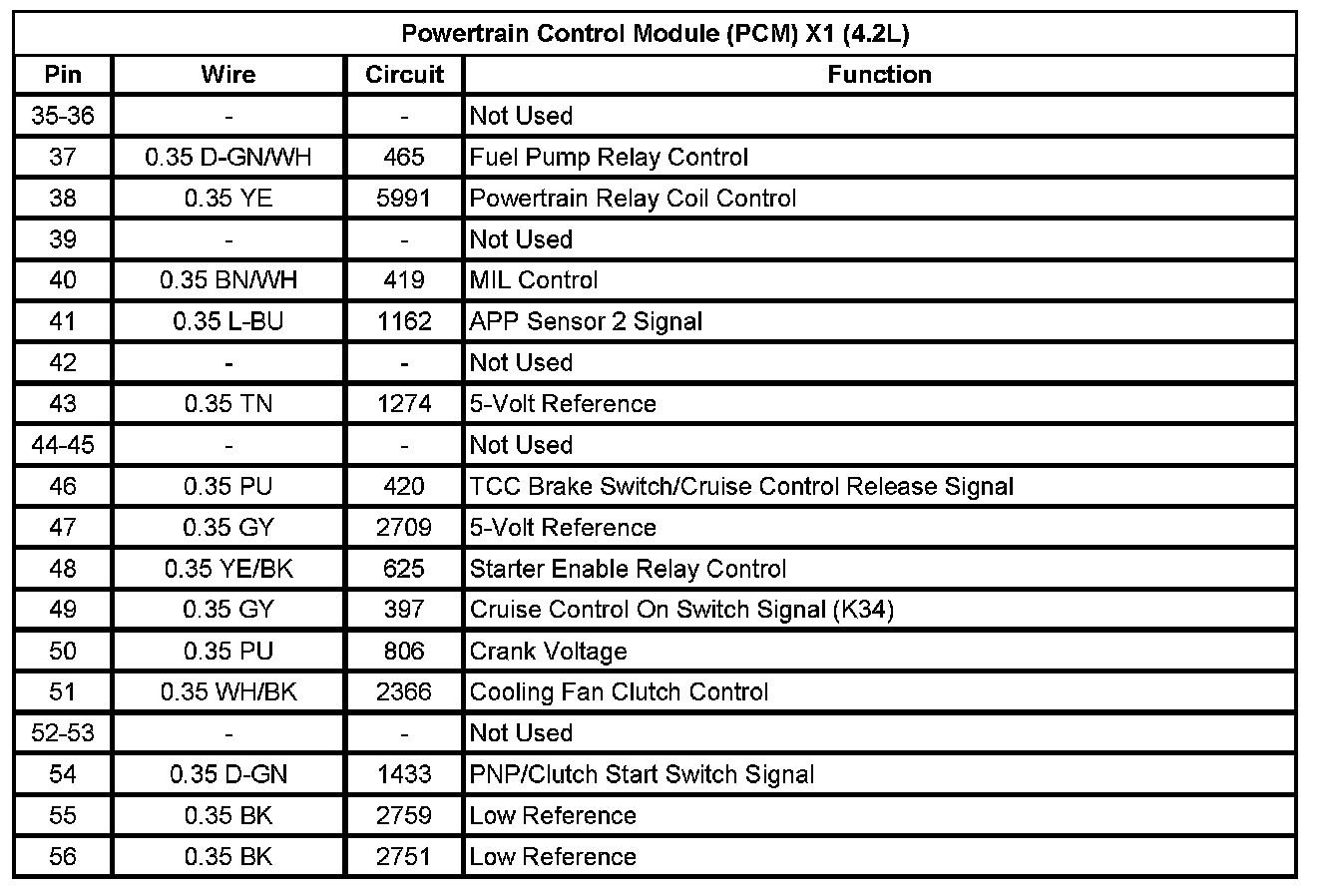

Powertrain Control Module (PCM) X1 (4.2L) (Pin 35 To 56):

Powertrain Control Module (PCM) X2 (4.2L)

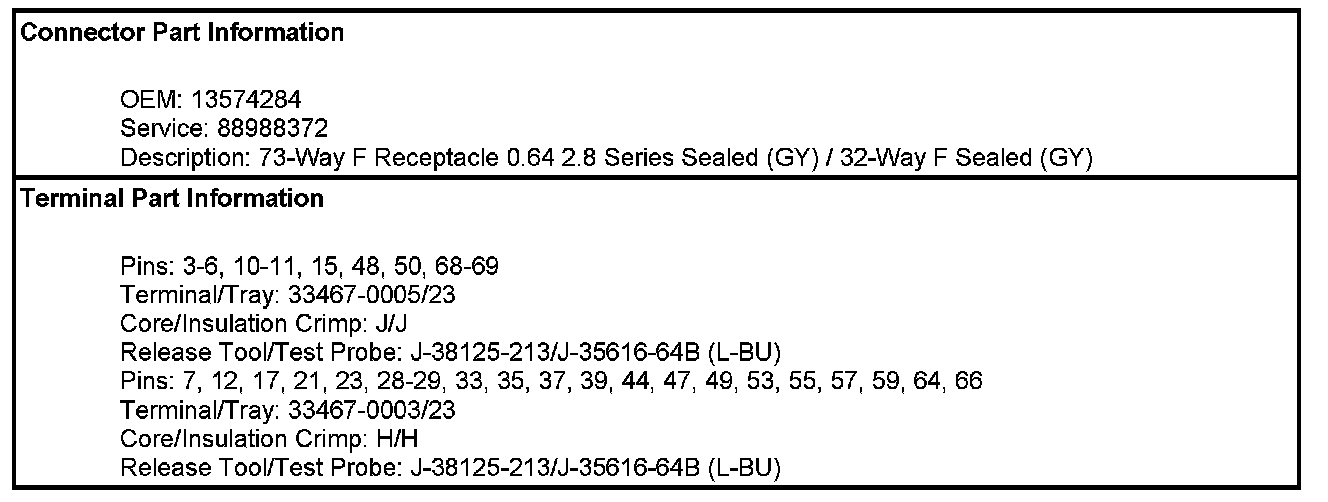

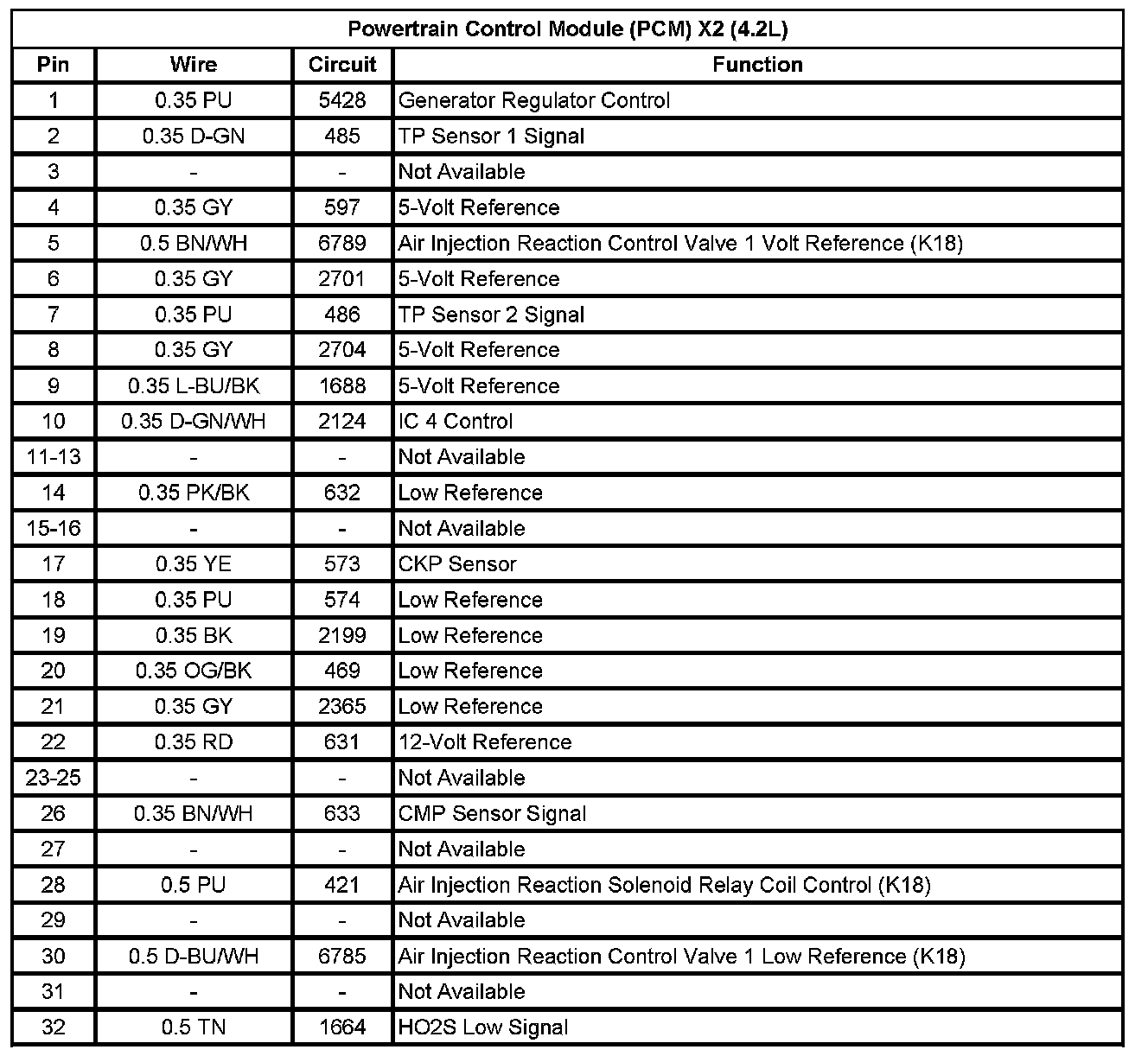

Powertrain Control Module (PCM) X2 (4.2L) (Pin 1 To 32):

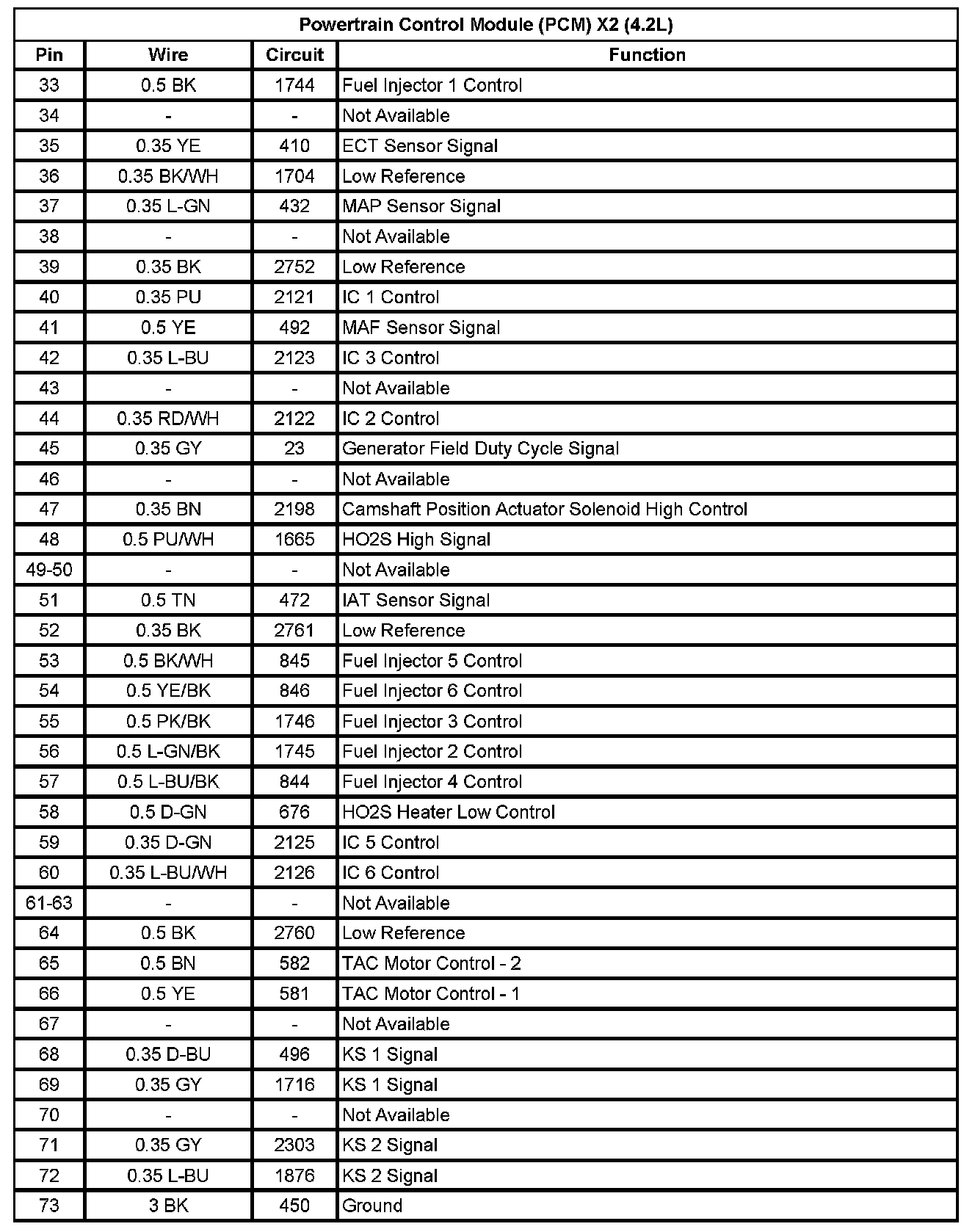

Powertrain Control Module (PCM) X2 (4.2L) (Pin 33 To 73):

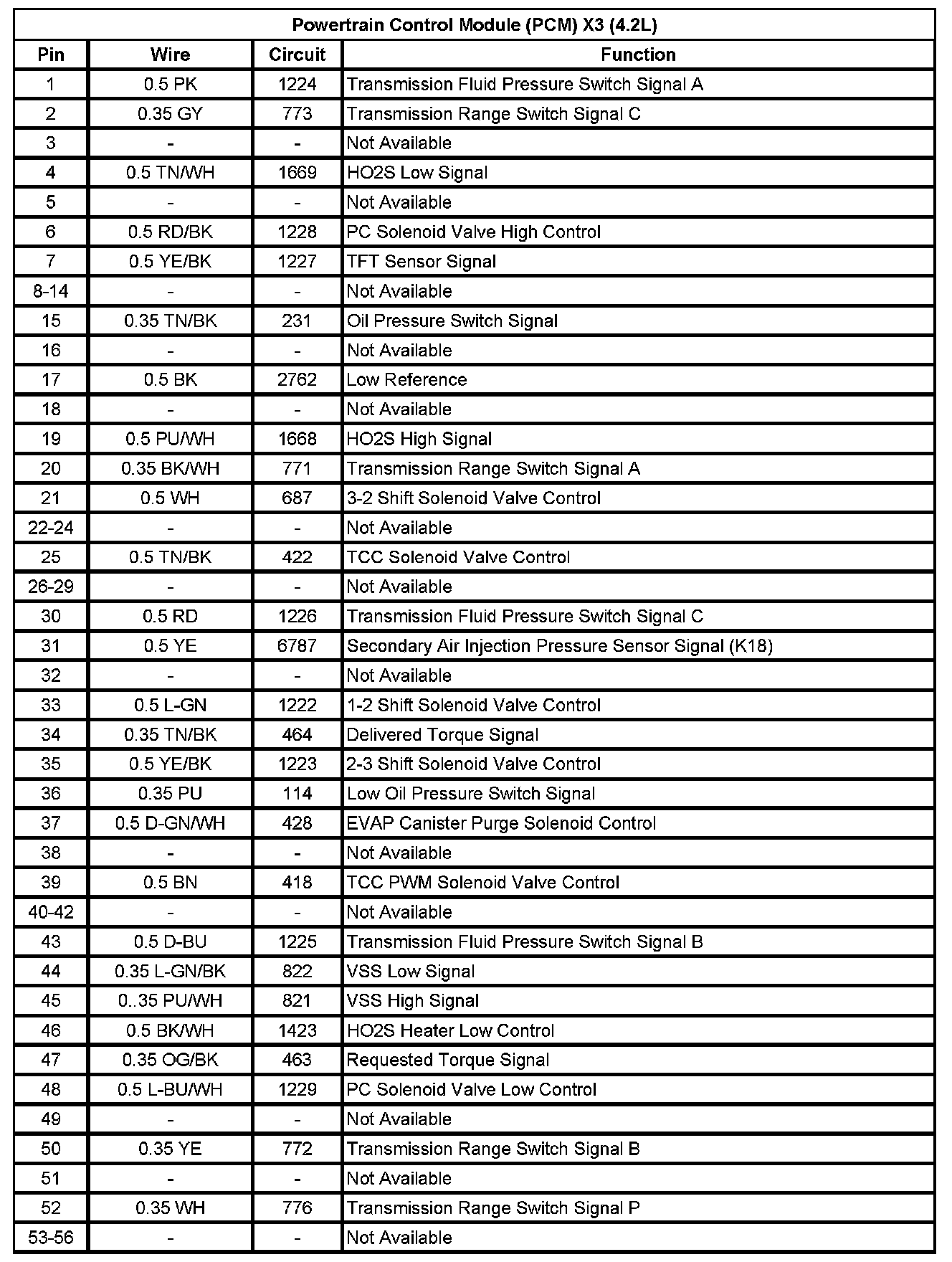

Powertrain Control Module (PCM) X3 (4.2L)
