Home >> Isuzu >> 1988 >> I-Mark L4-1471cc 1.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> With Turbo

With Turbo

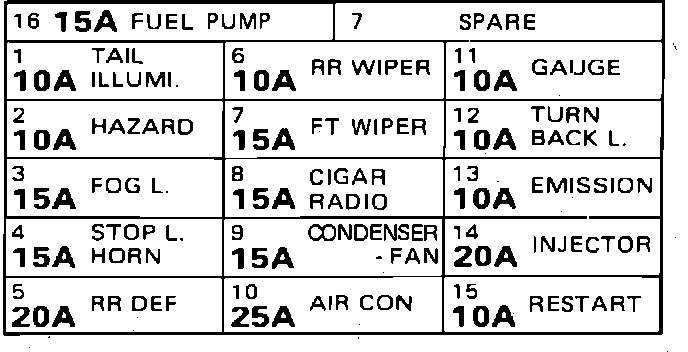

Fuse Panel. With Turbo:
