Brake Lamp: Service and Repair

Rear Lamp Assembly

Removal

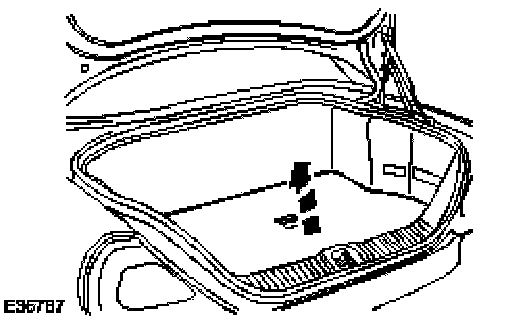

1. Reposition the luggage compartment floor covering.

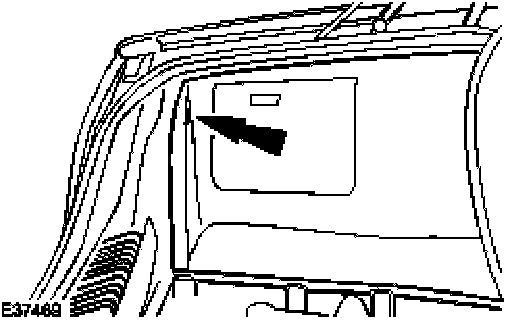

2. Detach and reposition the luggage compartment side trim panel.

NOTE: Left-hand shown, right-hand similar

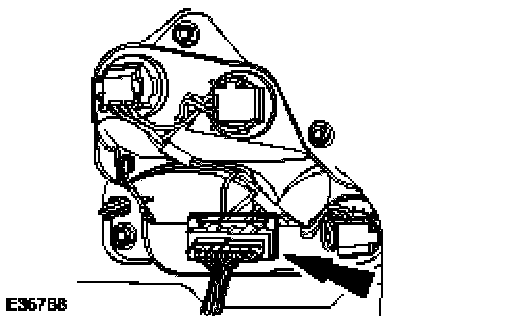

3. Disconnect the rear lamp assembly electrical connector.







4. Remove the rear lamp assembly.
- Remove the rear lamp assembly retaining nuts.

Installation
1. To install, reverse the removal procedure.
