Control Arm Bushing: Service and Repair

Rear Lower Arm Bushing

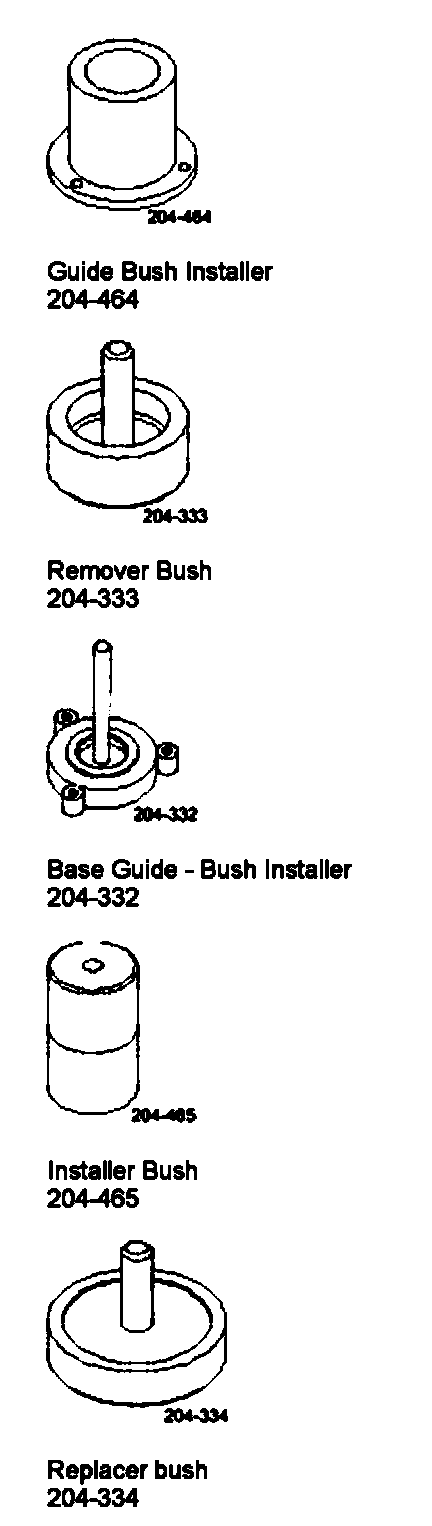

Special Service Tools

Removal
1. Remove the rear arm.





2. NOTE: Note the orientation of the bushing before removal.

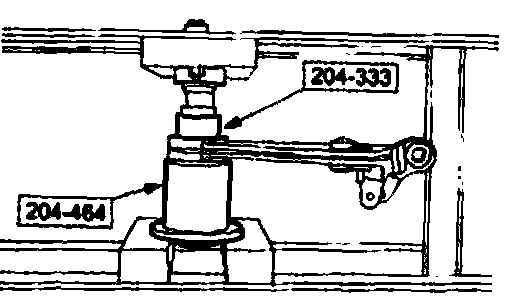

Using the special tools remove the rear lower arm bushing.

Installation

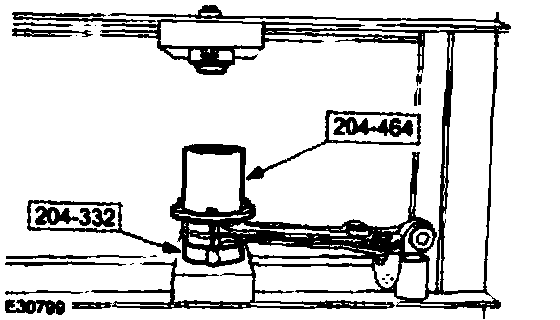

1. Install the special tools to the rear lower arm.

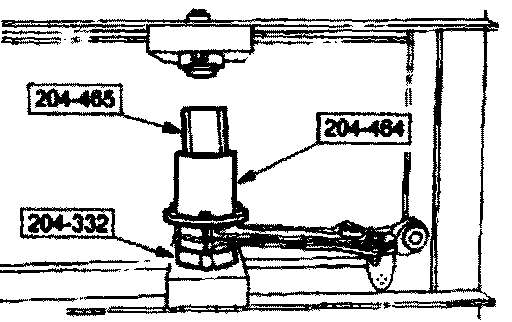

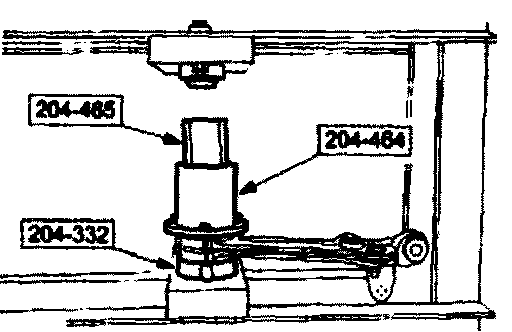

2. Use the installer, align the special tools to the rear lower arm.
Tighten the retaining bolts,





3. NOTE: Make sure the bushing is correctly orientated.

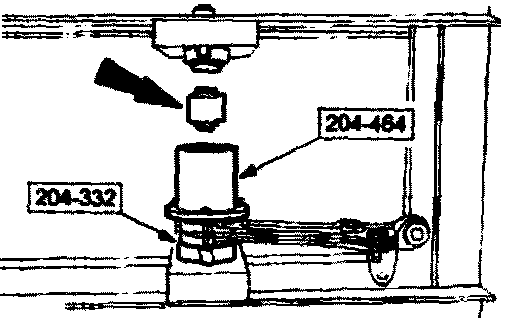

Install the rear lower arm bushing to the special tool.

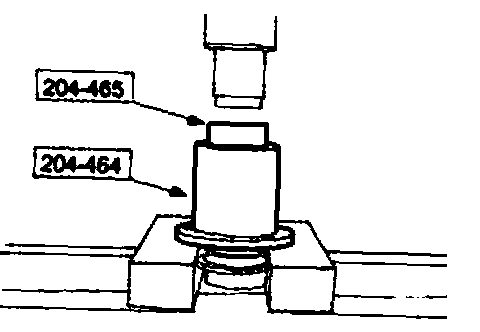

4. Using the special tools, partially install the rear lower arm bushing.





5. Remove the special tool from the rear lower arm bushing.

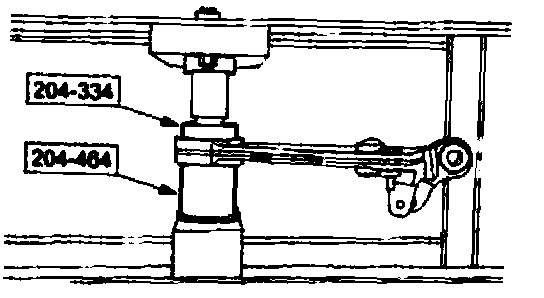

6. Using the special tool, completely install the rear lower arm bushing.
7. Install the rear lower arm.
