Procedures

Rear Door Window Glass

Removal
1. Lower the rear window until it is half down.
2. Remove the rear quarter window glass.







3. Disconnect the rear door speaker electrical connector.







4. Detach the rear door wiring harness.







5. Detach the rear door wiring harness grommet.

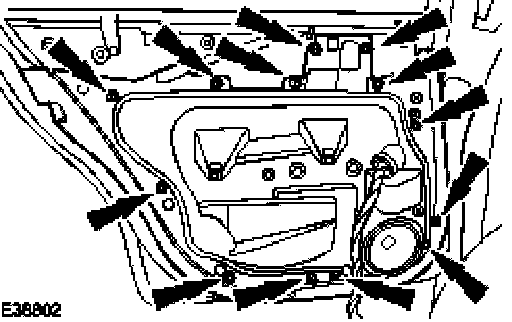

6. Remove the rear door inner weathershield.

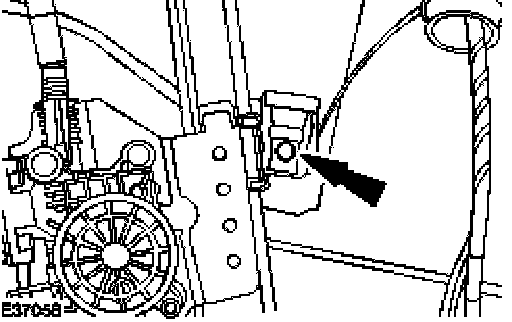

7. Remove the rear door window glass retaining bolt.







8. Detach the rear door window glass from the rear door window regulator retaining clip.
9. Remove the rear door window glass.

Installation







1. To install reverse the removal procedure.
- Tighten to 7 Nm.

NOTE: Make sure the rear door window glass is correctly located to the rear door window regulator.
