Driver Side Register

Driver Side Register

Removal
1. Remove the floor console assembly.

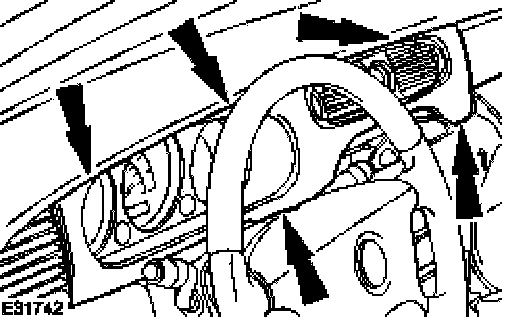

2. Remove the instrument panel finish panel.

CAUTION: Make sure damage does not occur to the instrument panel finish panel.

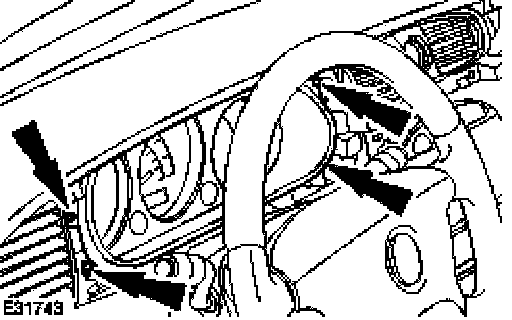

3. Remove the instrument cluster finish panel.

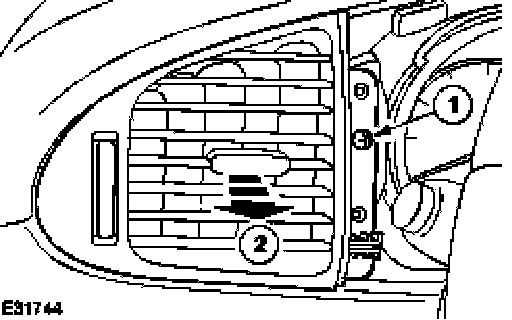

4. Detach the driver side register.
- Remove the driver side register retaining screw.
- Detach the driver side register.

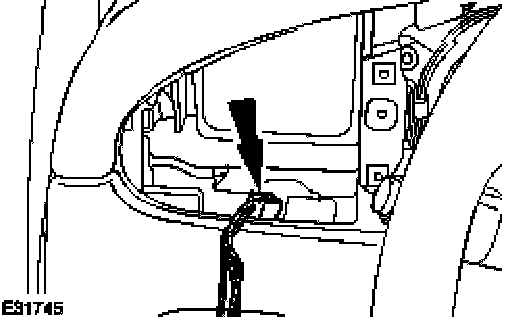

5. Remove the driver side register.
- Disconnect the driver side register electrical connector.

Installation
1. To install, reverse the removal procedure.
