Blower Motor Resistor: Service and Repair

Blower Motor Resistor

Removal
1. Remove the floor console.

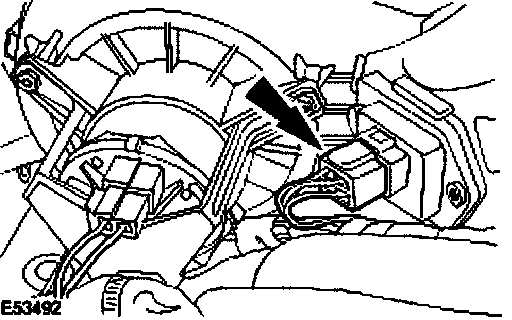

2. Disconnect the blower motor resistor.







3. Remove the blower motor resistor.
- Remove the blower motor resistor retaining screw.







Installation
1. To install, reverse the removal procedure.
