Alignment

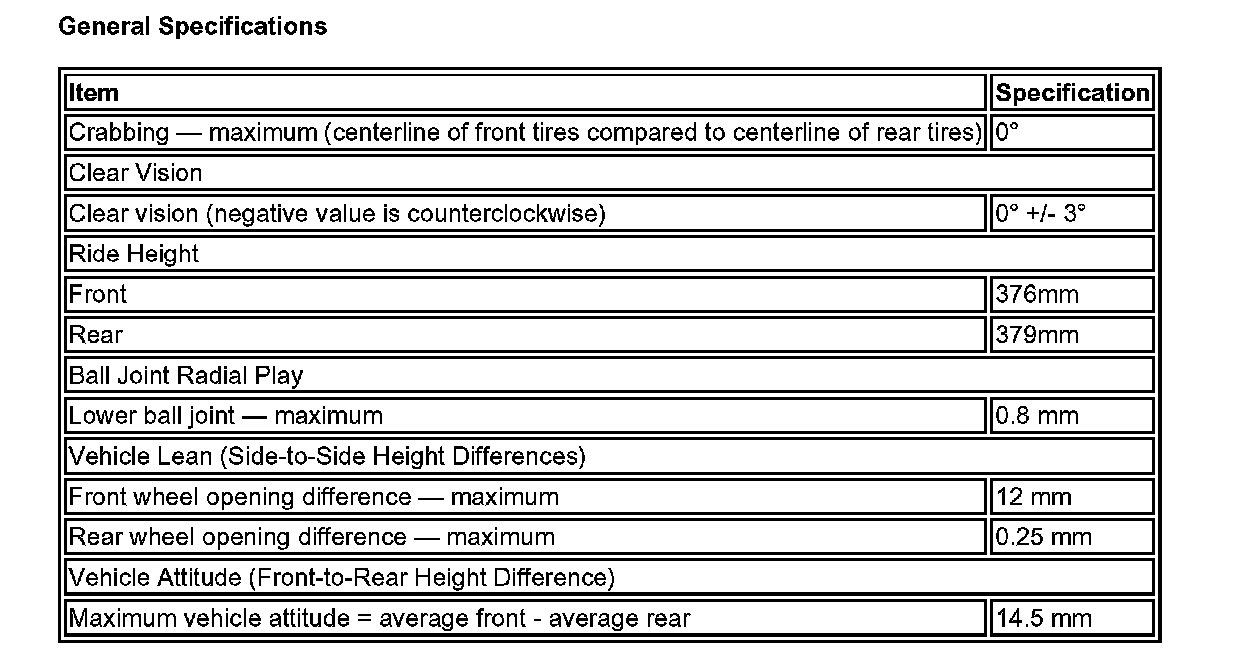

General Specifications:

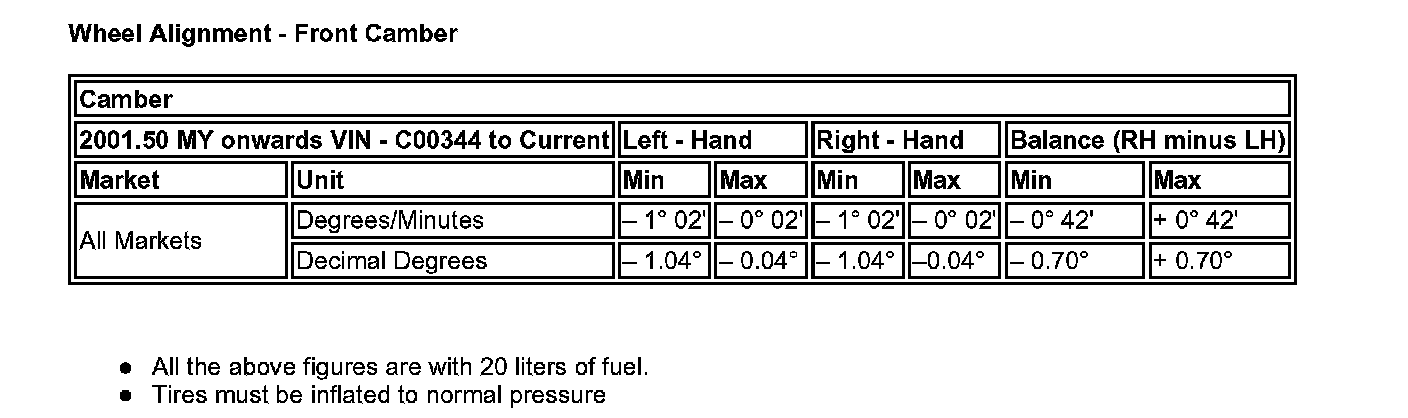

Wheel Alignment - Front Camber:

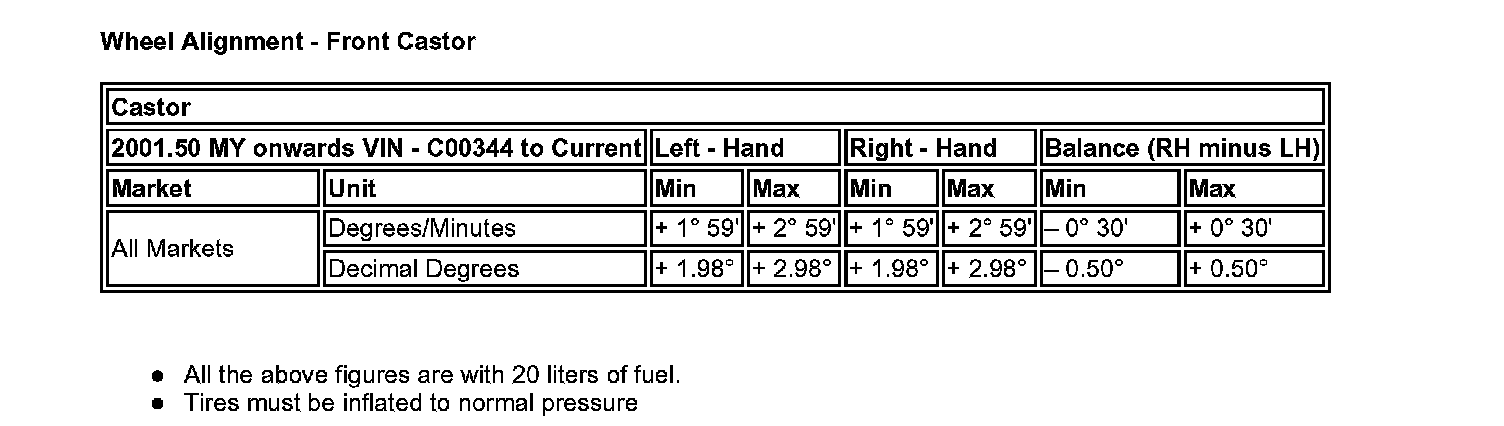

Wheel Alignment - Front Castor:

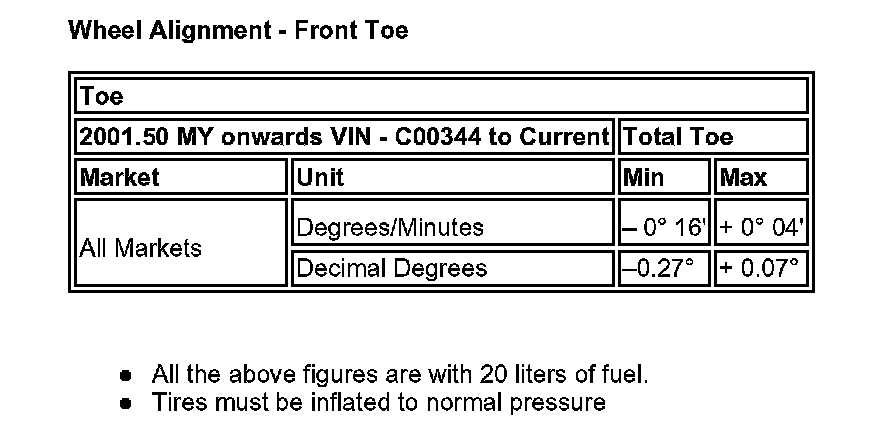

Wheel Alignment - Front Toe:
