Home >> Jaguar >> 2007 >> X-Type (X400) V6-3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Pad >> Specifications

Brake Pad: Specifications

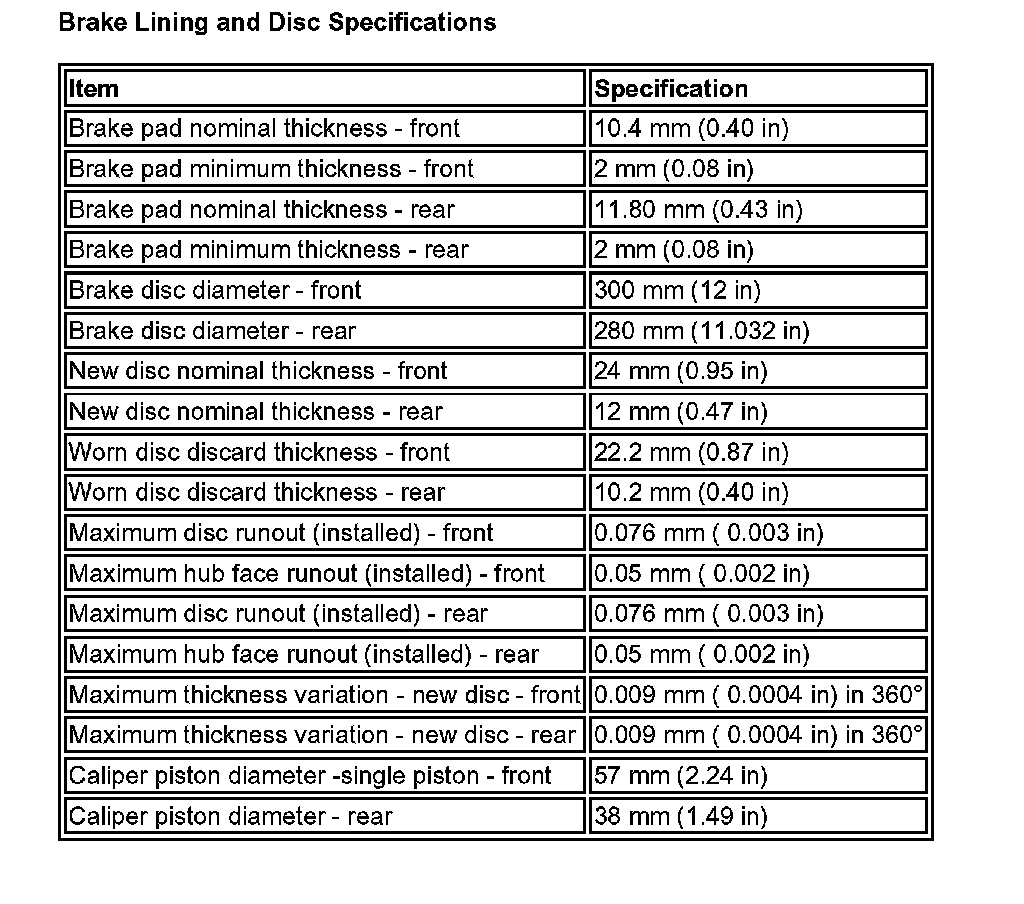

Brake Lining and Disc Specifications

Brake Lining And Disc Specifications:
