Cabin Air Filter / Purifier: Service and Repair

343500

Cabin Air Filter

Removal

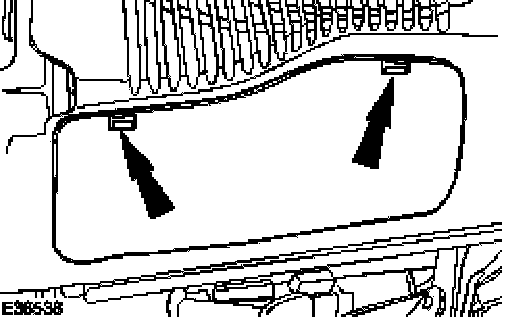

1. Remove the cabin air filter housing cover.
- Detach the retaining tangs

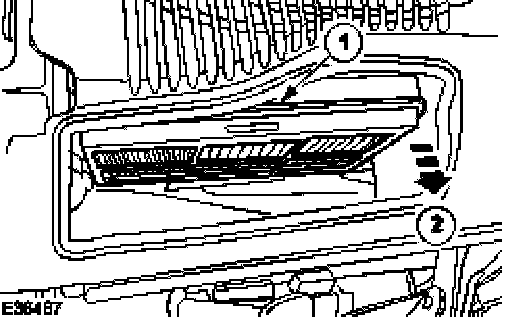

2. Detach the cabin filter retaining plate.
- Depress the cabin filter retaining plate tangs.
- Swing the cabin filter retaining plate down.

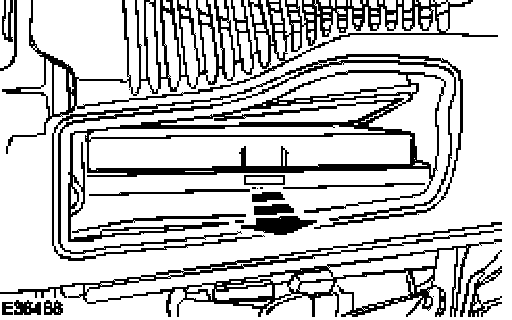

3. Remove the cabin air filter.

Installation

1. To install, reverse the removal procedure.

NOTE: Make sure the new cabin air filter is fitted correctly, with the air flow markings on the cabin air filter showing the direction of air flow.
