Floor Console

Floor Console (76.25.01)

Removal

1. Remove the rear seat armrest.
2. Remove the floor console veneer trim panel.
3. Remove the floor console rear panel.
- Carefully release the 2 clips.







4. Remove the floor console side panel trim.
- Remove the 2 Torx bolts.
- Carefully release 11 clips.
- Repeat the procedure and remove the opposite hand.







5. Release the 2 Torx latches.







6. Release the LH side floor console electrical harness connector blocks.
- Carefully release the 4 clips.







7. Release the RH side floor console electrical harness connector blocks.
- Carefully release the 3 clips.







8. Release the wiring harness clip.







9. Disconnect the gear selector assembly electrical connector.







10. Remove the gear selector assembly.
- Carefully disconnect the selector cable ball joint.
- Remove the 4 Torx bolts.
- Release the electrical harness.

11. NOTE: Use an additional wrench to prevent the component from rotating.

Release the gear selector cable at the abutment.
- Loosen the locknut.







12. Remove the parking brake switch.
- Remove the 4 Torx bolts.
- Disconnect the electrical connector.







13. Remove the ashtray trim panel.
- Release the 2 clips.







14. Release the floor console.
- Remove the 6 Torx bolts.
- Lift and carefully withdraw from the instrument panel.







15. Remove the floor console.
- Disconnect the cigar lighter electrical connector.
- Disconnect the keyless vehicle module electrical connector.







16. NOTE: Do not disassemble further if the component is removed for access only.

Remove the ashtray.
- Remove the 4 Torx bolts.
- Remove the ashtray insert.

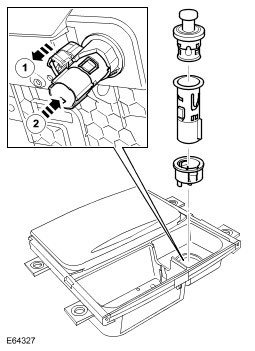

17. Remove the cigar lighter.







18. Remove the keyless start control module trim cover.
- Remove the 2 Torx screws.

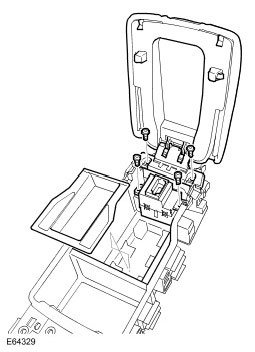

19. Remove the floor console lid.
- Remove the 2 Torx bolts.

20. Remove the keyless start control module.
- Remove the 2 Torx screws.

21. Remove the cubby box liner.







22. Remove the floor console rear extension bracket.
- Remove the 4 Torx bolts.







23. Remove the floor console central mounting bracket.
- Remove the 4 Torx bolts.







Installation

1. Install the floor console central mounting bracket.
- Install the Torx bolts, but do not tighten fully at this stage.

2. Install the floor console rear extension bracket.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).

3. Install the keyless start control module.
- Install the Torx screws.

4. Install the cubby box liner.
5. Install the floor console lid.
- Install the Torx bolts and tighten to 6 Nm (4 lb.ft).

6. Install the keyless start control module trim cover.
- Install the Torx screws.

7. Install the cigar lighter assembly.
8. Install the ashtray.
- Install the Torx bolts and tighten to 6 Nm (4 lb.ft).

9. Install the floor console.
- Connect the cigar lighter electrical connector.
- Connect the keyless vehicle module electrical connector.
- Align the floor console with the Torx latch spigots and secure the latches.
- Install the Torx bolts, tighten the M6 bolts to 10 Nm (7 lb.ft) and the M8 bolts to 25 Nm (18 lb.ft).

10. Install the ashtray trim panel.
- Carefully secure the clips.

11. Install the parking brake switch.
- Connect the electrical connector.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).

12. NOTE: Use an additional wrench to prevent the component from rotating.

Install the gear selector cable to the floor console abutment.
- Tighten the locknut to 15 Nm (11 lb.ft).

13. Install the gear selector assembly.
- Position the electrical harness.
- Install the Torx bolts and tighten to 6 Nm (4 lb.ft).
- Connect the selector cable ball joint.

14. Connect the gear selector assembly electrical connector.
15. Install the RH side floor console electrical harness connector blocks.
- Carefully align and secure the clips.

16. Install the LH side floor console electrical harness connector blocks.
- Carefully align and secure the clips.

17. Secure the Torx latches.
18. Install the floor console side panel trim.
- Carefully align and secure the clips.
- Tighten the Torx screws to 6 Nm (4 lb.ft).
- Install the opposite hand.

19. Install the floor console rear panel.
- Align the lugs and secure the clips.

20. Install the floor console veneer trim panel.
21. Install the rear seat armrest.
