Engine Radiator
Radiator - Vehicles With: SuperchargerRemoval
1. Remove the cover and disconnect the battery ground cable.
2. Raise and support the vehicle.
3. Remove the intake air resonator.
4. Remove the fan cowl.
> Remove the 15 clips.
5. Remove the supercharger radiator.
6. Remove the radiator upper mountings.
> Remove the 4 bolts.
7. Disconnect the radiator upper hose.
> Release the clip.
8. Disconnect the radiator lower hose.
> Release the clip.
9. CAUTION: Always plug any open connections to prevent contamination.

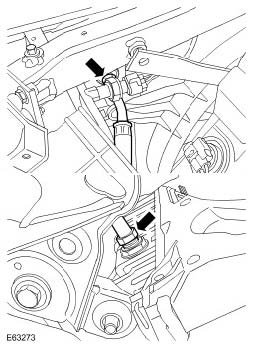

Disconnect the 2 transmission cooler lines.
> Position a container to collect the fluid.
> Disconnect the 2 unions.
> Remove and discard both O-ring seals.
10. Release the auxiliary coolant pump.
> Disconnect the electrical connector.
> Release from the rubber mounting.
11. Release the power steering fluid cooler.
> Remove the 2 bolts.
12. Release the radiator assembly.
> Disconnect the 3 electrical connectors.
13. NOTE: The radiator is removed from beneath the vehicle.
Remove the radiator assembly.
> Protect the elements from damage.
> Lift the radiator clear of its mountings.
14. NOTE: Do not disassemble further if the component is removed for access only.
Remove the radiator rubber mountings
15. Remove the cooling fan.
> Remove the 2 bolts.
> Release from the 3 retainers.
Installation
1. Install the cooling fan.
> Secure in the retainers.
> Tighten the bolts.
2. Install the radiator rubber mountings
3. Install the radiator assembly.
> Protect the elements from damage.
> Lift the radiator onto its mountings.
> Connect the electrical connectors.
4. Attach the power steering fluid cooler.
> Tighten the bolts to 7 Nm (5 lb.ft).
5. Install the auxiliary coolant pump.
> Secure in the rubber mounting.
> Connect the electrical connector.
6. Connect the transmission cooler lines.
> Clean the components.
> Install new O-ring seals.
> Tighten the unions to 20 Nm (15 lb.ft).
7. Connect the radiator lower hose.
> Secure with the clip.
8. Connect the radiator upper hose.
> Secure with the clip.
9. Install the radiator upper mountings.
> Tighten the Torx bolts to 23 Nm (17 lb.ft).
10. Install the supercharger radiator.
11. Install the fan cowl.
> Secure with the clips.
12. Install the intake air resonator.
13. Connect the battery ground cable and install the cover.
14. Check and top-up the transmission fluid level.
