Procedures

Pollen Filter ( 76.10.09 )


Removal

1. Open the hood.

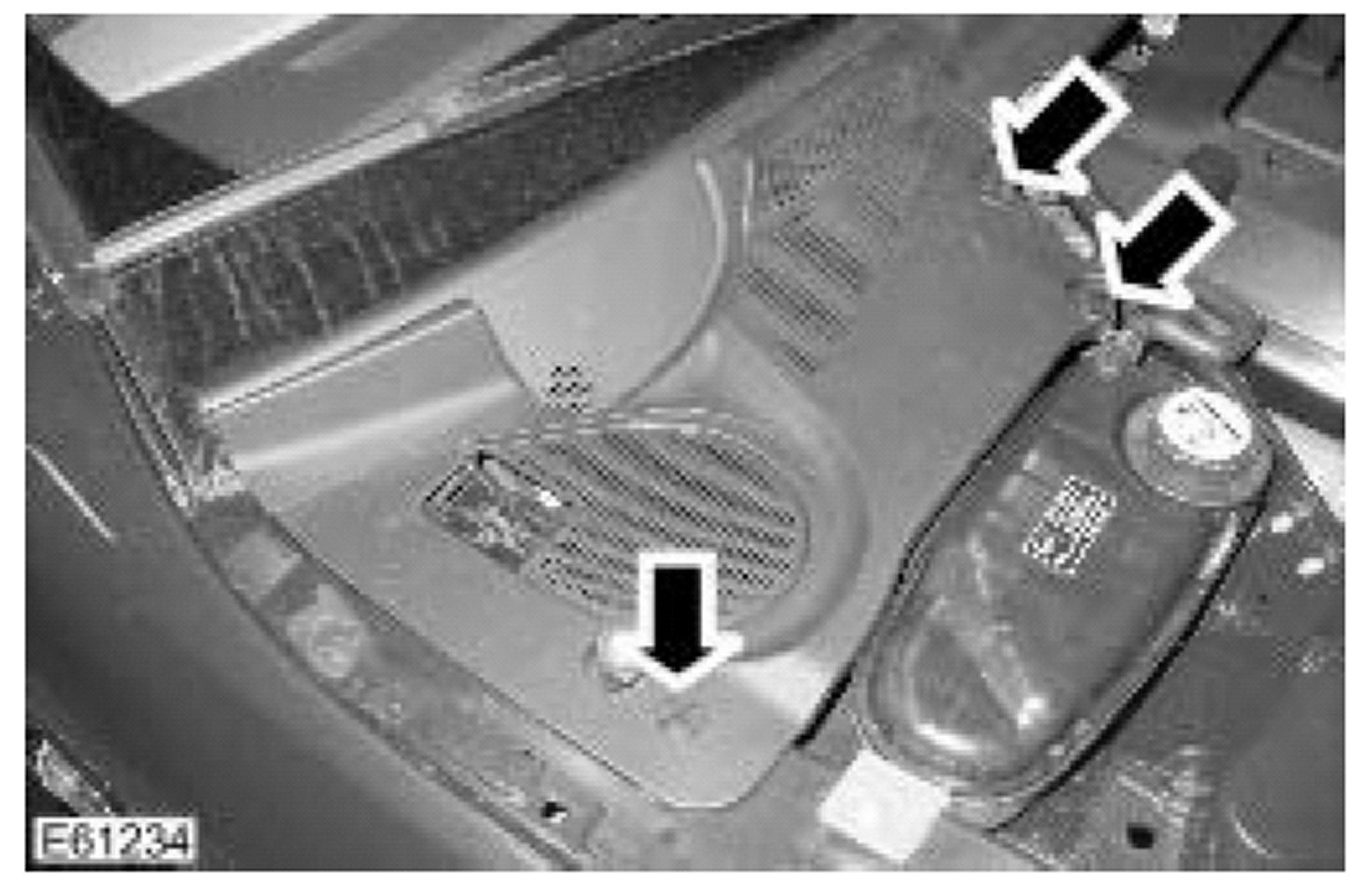

2. Remove the air intake cover.
Remove the 3 clips.

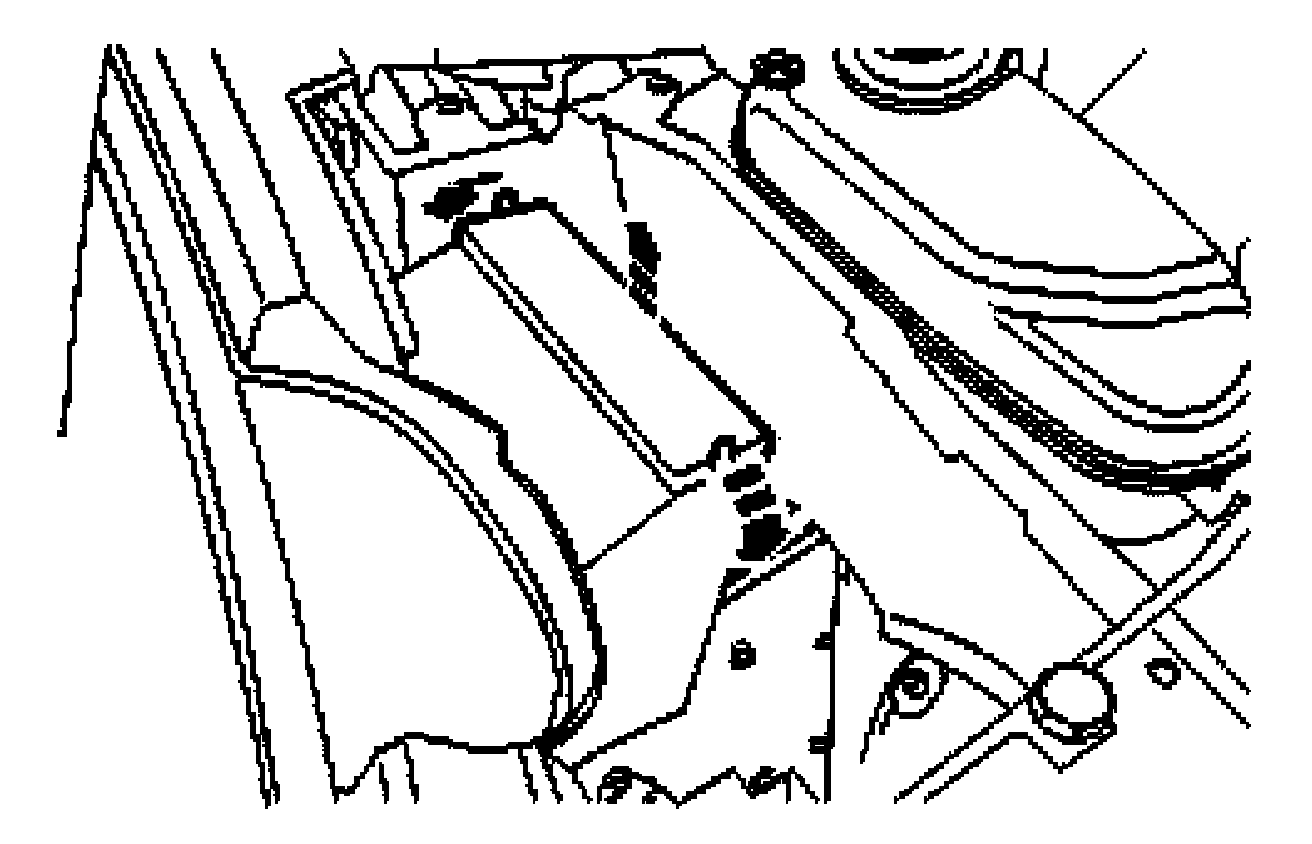

3. Release the pollen filter housing cover.
Release from the 2 clips.







4. CAUTION! Remove any debris from the filter aperature

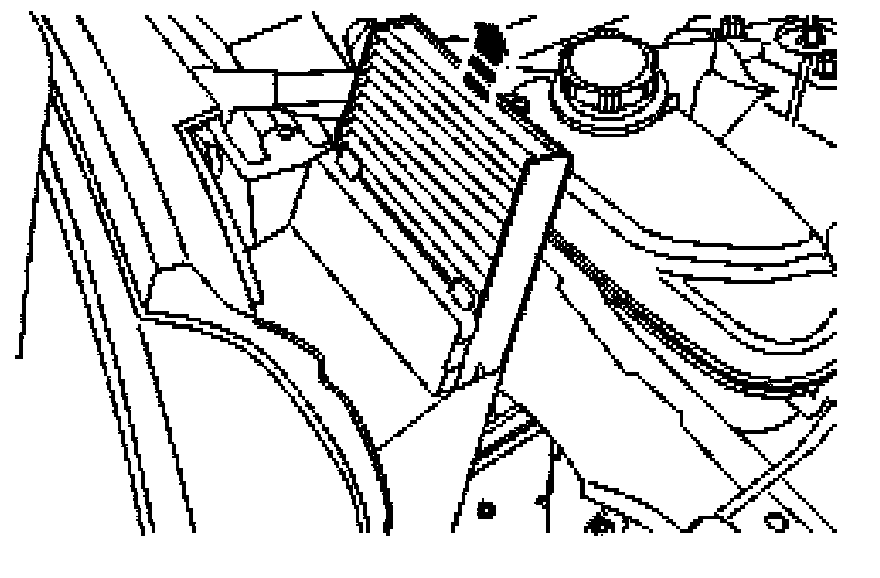

Remove the pollen filter.


Installation

1. Install the pollen filter.

2. Secure the pollen filter housing cover.

3. Install the air intake cover.
Carefully secure the clips.

4. Close the hood.
