Cellular Phone Transceiver: Service and Repair

Transceiver Module

Removal
1. Remove the cover and disconnect the battery ground cable.

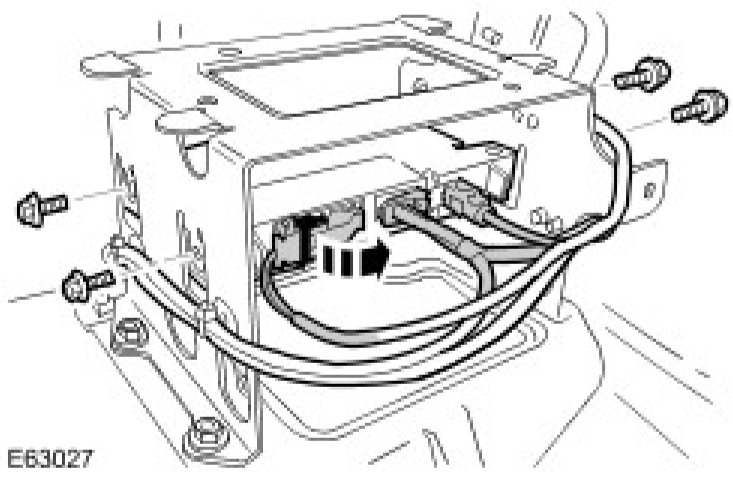

2. Remove the transceiver module.
- Disconnect the 3 electrical connectors.
- Remove the 4 bolts.







Installation
1. Install the transceiver module.
- Tighten the bolts to 10 Nm (7 lb.ft).
- Connect the electrical connectors.
2. Connect the battery ground cable and install the cover.
