Home >> Jaguar >> 2008 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Seat Position Sensor >> Locations >> Sensor-Driver-Seat Track

Sensor-Driver-Seat Track

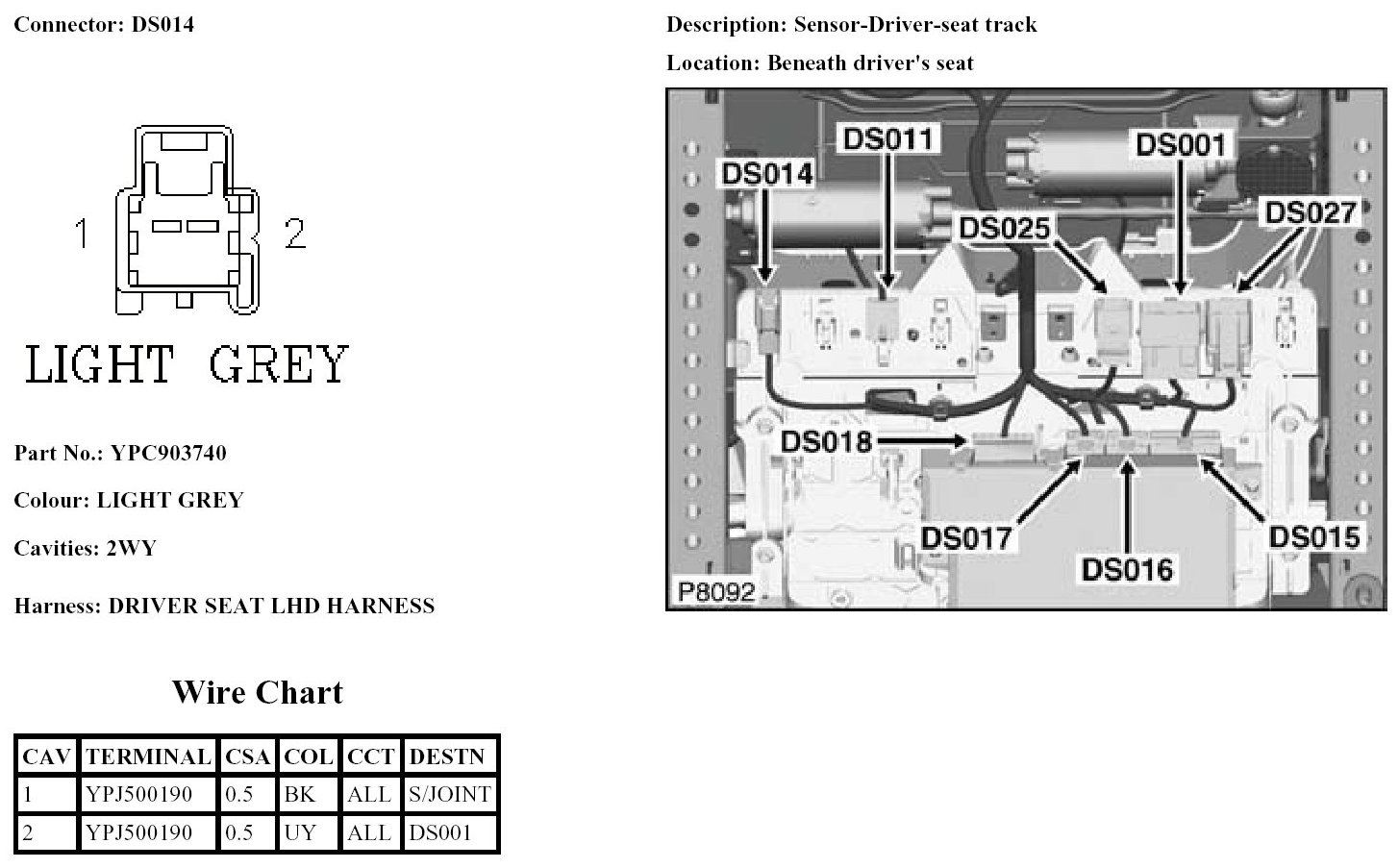

DS014:

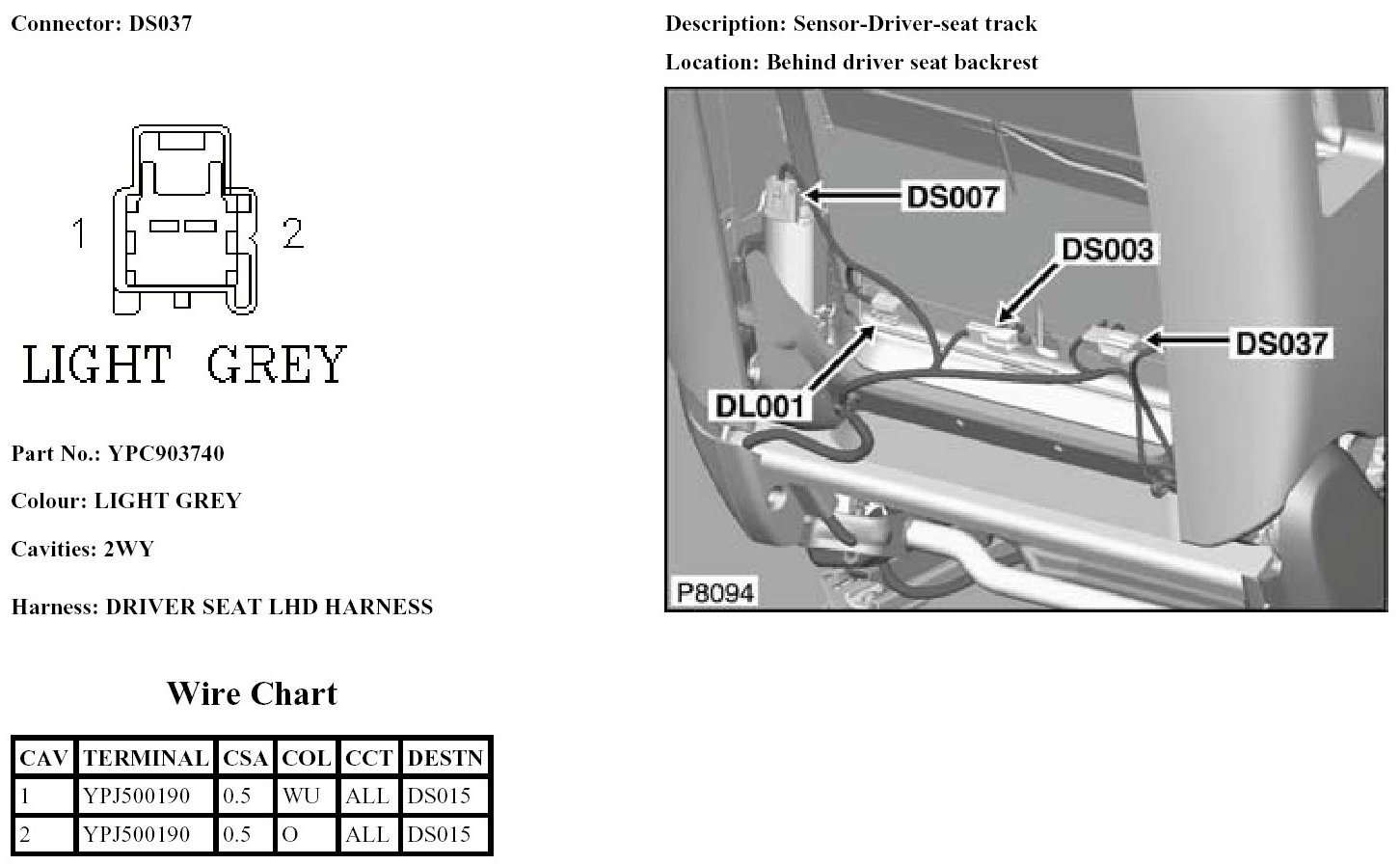

DS037:
