Seat Track: Service and Repair

Seat Track

Removal

1. Remove the cover and disconnect the battery ground cable.
2. Make the SRS system safe.
3. Remove the front seat.
4. Release the front seat backrest cover lower tension straps.







5. Remove the front seat cushion assembly.

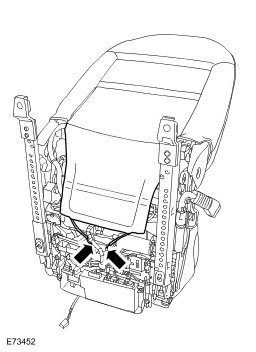

- Release and disconnect the 2 electrical connectors.
- Release the Velcro strap.
- Release the 5 clips.







6. Remove the front seat safety belt pretensioner.
- Remove and discard the Torx bolt.
- Release and disconnect the electrical connector.

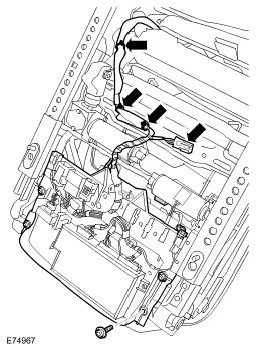

7. Release the seat module bracket.
- Disconnect the 4 electrical connectors.
- Release the 3 wiring harness clips.
- Remove and discard the cable tie.
- Remove the 4 Torx bolts.







8. Remove the seat track assembly.
- Remove and discard the 4 Torx bolts.







Installation

1. Install the seat track assembly.
- Tighten the new Torx bolts to 45 Nm (33 lb.ft).

2. Secure the seat module bracket.
- Tighten the Torx bolts to 10 Nm (7 lb.ft).
- Secure the harness with a cable tie.
- Attach the wiring harness clips.
- Connect the electrical connectors.

3. Install the front seat safety belt pretensioner.
- Connect and secure the electrical connector.
- Tighten the new Torx bolt to 45 Nm (33 lb.ft).

4. Secure the front seat cushion assembly.
- Connect and secure the electrical connectors.
- Secure the Velcro strap.
- Attach the clips.

5. Secure the front seat backrest cover lower tension straps.
6. Install the front seat.
7. Connect the battery ground cable and install the cover.
