Differential Mount: Service and Repair

Axle Housing Bushing

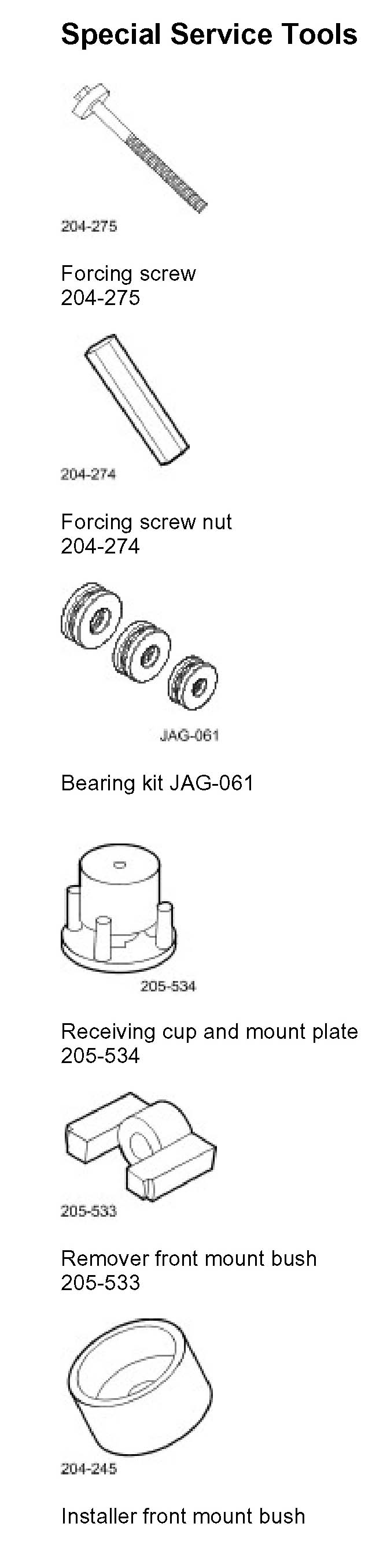

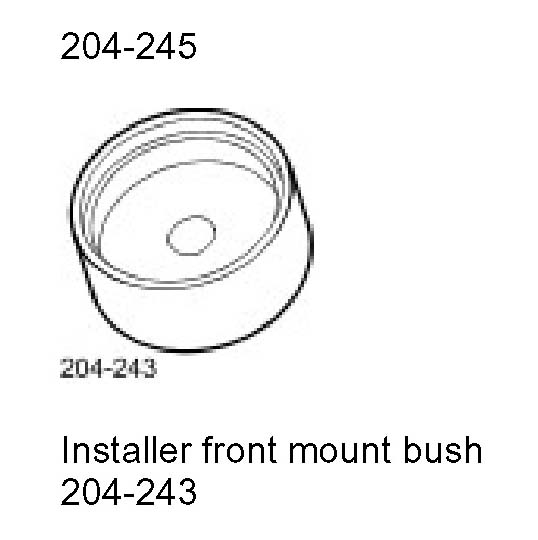

Special Service Tools








Removal

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
2. Remove the rear differential.
3. Using the special tools, remove the differential bushing.





Installation
1. The raised mouldings on the bushing, should be set at 45° to the center line of the pinion shaft.





2. Using the special tools, install the bushing.





3. Install the rear differential.
