Antilock Brakes / Traction Control Systems: Locations
Anti-Lock Control - Stability Assist
NOTE:
RHD (right-hand drive) installation shown, LHD (left-hand drive) installation similar.

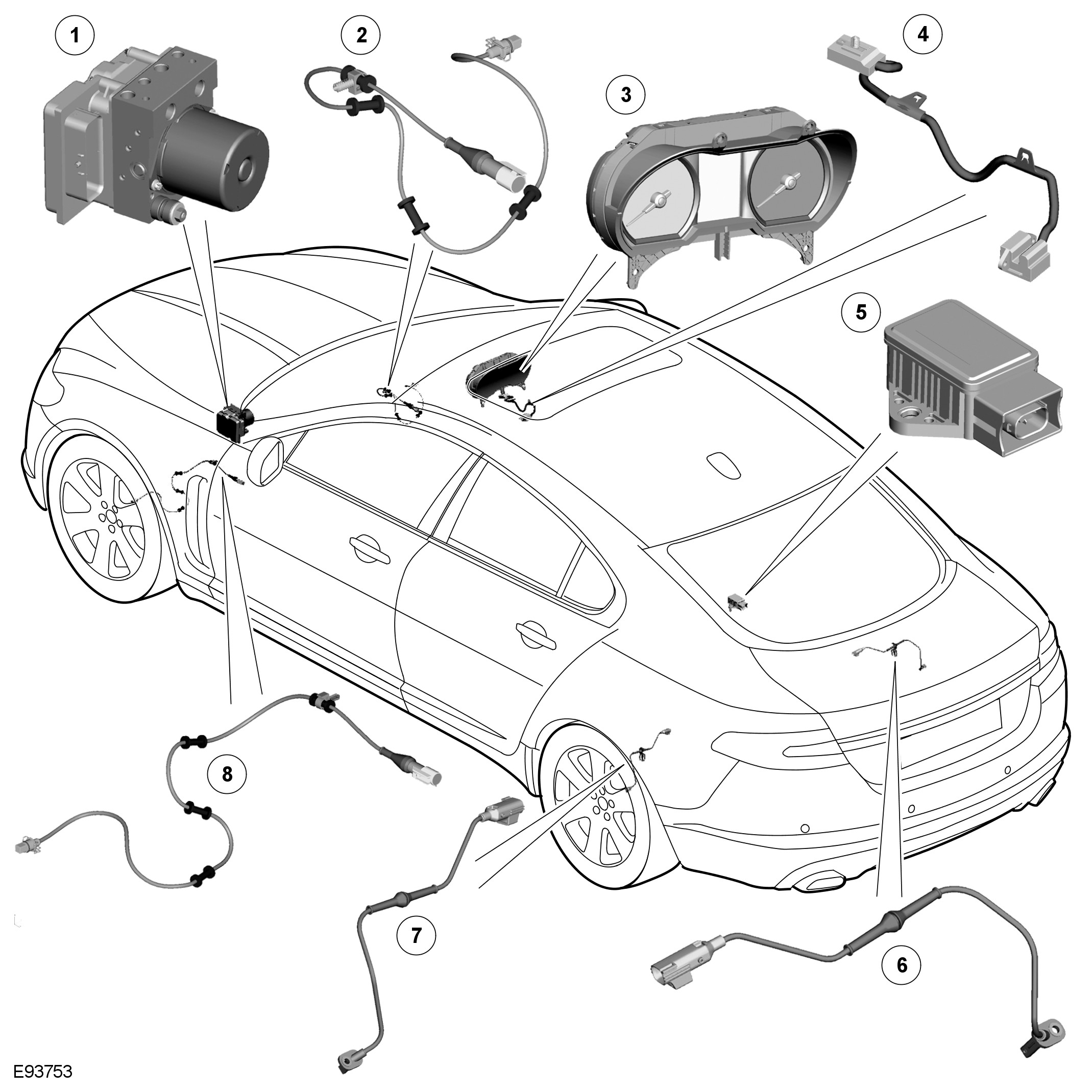

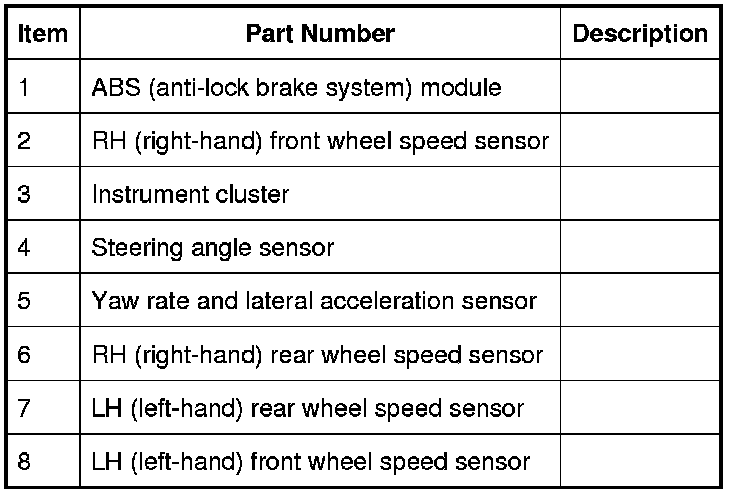

Component Location
