Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L SC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Locations >> C1D101

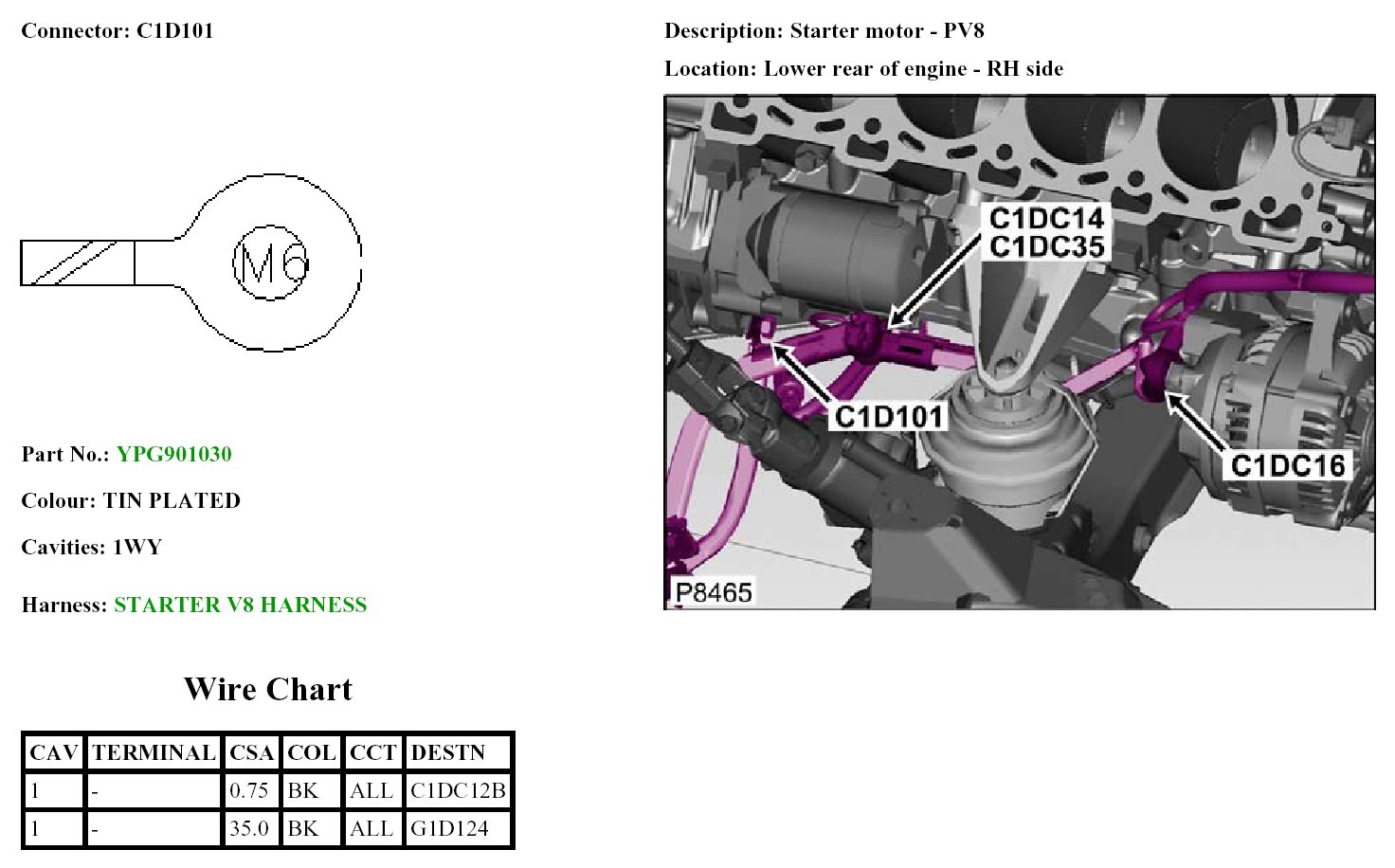

C1D101



Starter Motor - PV8


C1D101:
