Brake Light Switch: Locations

COMPONENT LOCATIONS

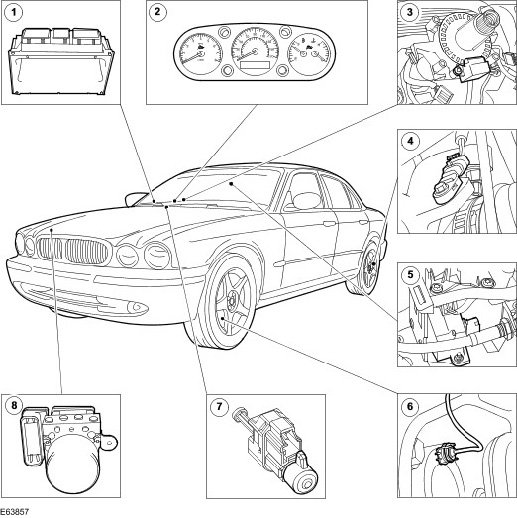

Anti-Lock Control - Stability Assist - VIN Range: G45704->G99999 (Part 1):

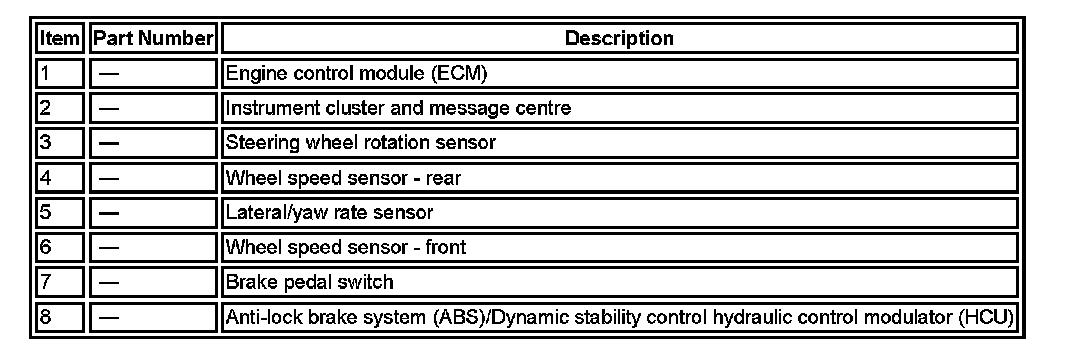

Anti-Lock Control - Stability Assist - VIN Range: G45704->G99999 (Part 2):
