Steering Column Multifunction Switch RH

Steering Column Multifunction Switch RH
Removal

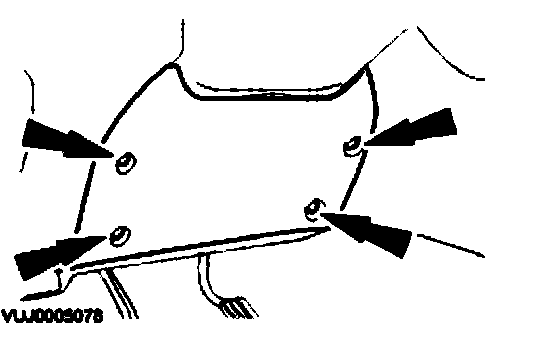

1. Remove the instrument panel lower trim.

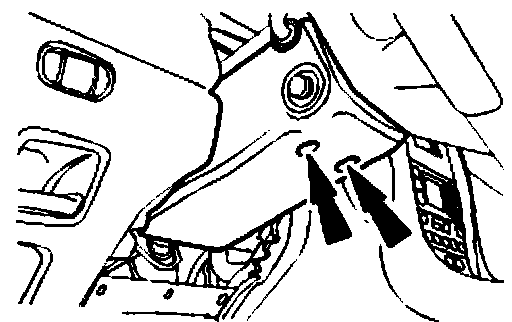

2. Detach the steering column lower shroud.





3. Remove the steering column upper shroud.

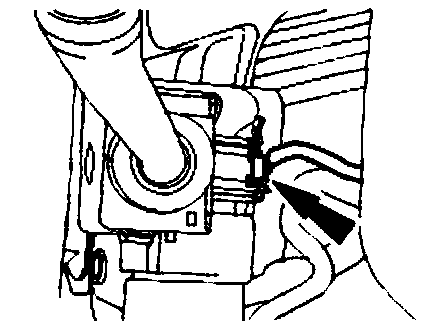

4. Disconnect the steering column multifunction switch RH electrical connector.

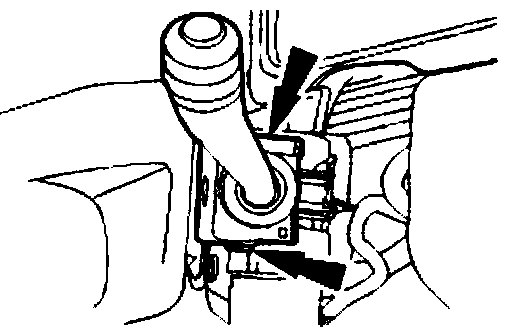

5. Remove the steering column multifunction switch RH switch.

Installation
1. To install, reverse the removal procedure.

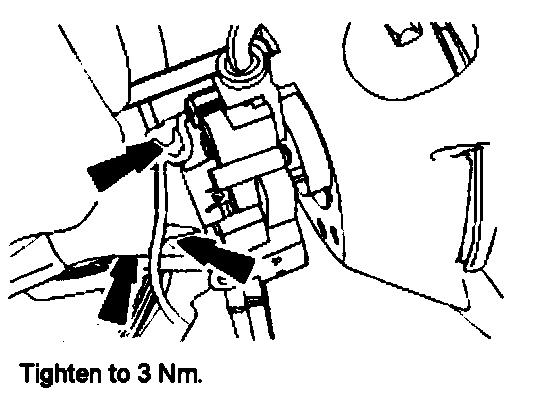

2. Tighten to 3 Nm.
