Wiper Pivot: Service and Repair

Wiper Pivot Arm

Removal

NOTE: Left-hand shown, right-hand similar.

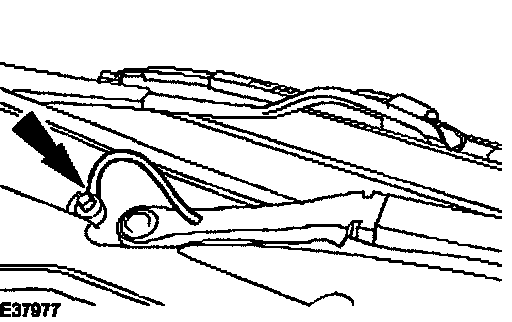

1. Disconnect the washer pipe.







NOTE: Left-hand shown, right-hand similar.

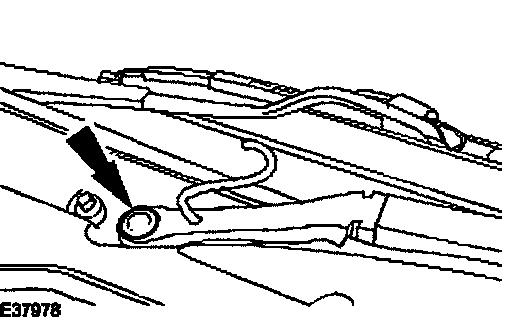

2. Remove the wiper pivot arm retaining nut cover.







NOTE: Left-hand shown, right-hand similar.

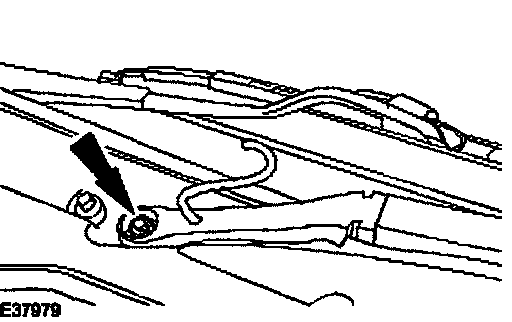

3. Remove the wiper pivot arm retaining nut.







NOTE: Left-hand shown, right-hand similar.

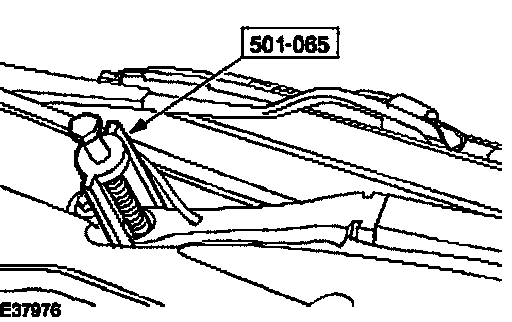

4. Using the special tool, remove the wiper pivot arm.







Installation

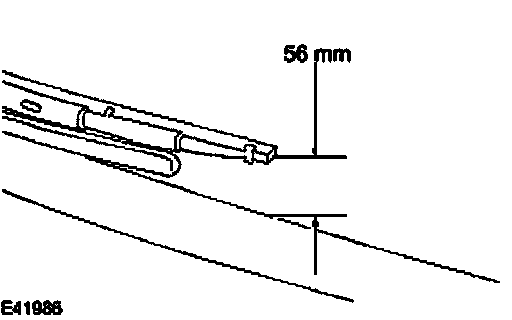

NOTE: Measure the distance between the tip of the wiper blade and the upper edge of the cowl vent screen.

1. Install the driver side wiper pivot arm.

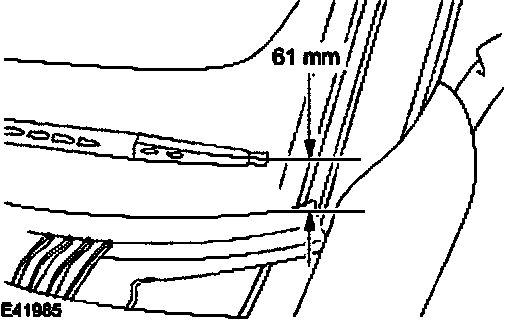

NOTE: Measure the distance between the tip of the wiper blade and the upper edge of the cowl vent screen.

2. Install the passenger side wiper pivot arm.







NOTE: Left-hand shown, right-hand similar.

3. Install the wiper pivot arm retaining nut.
- Tighten to 17 Nm.







NOTE: Left-hand shown, right-hand similar.

4. Install the wiper pivot arm retaining nut cover.







NOTE: Left-hand shown, right-hand similar.

5. Connect the washer pipe.
