Ultrasonic Sensor: Service and Repair

Rear Intrusion Sensor

Removal
1 Remove the rear seat armrest. For additional information, refer to Rear Seat Armrest Rear Seat Armrest

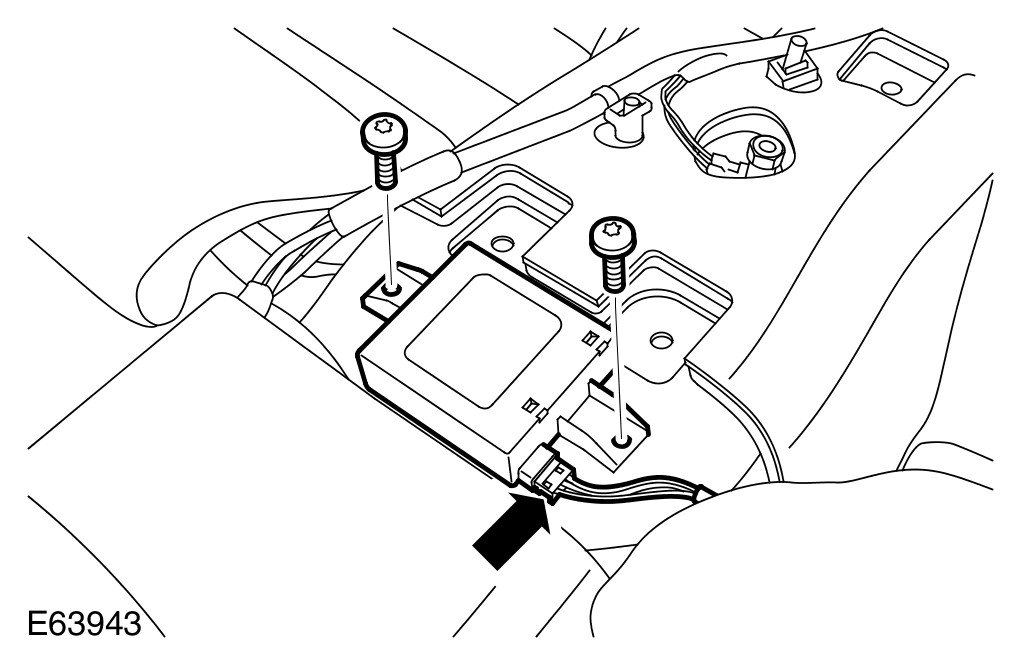

2 Remove the rear intrusion sensor.
- Disconnect the electrical connector.
- Remove the 2 Torx bolts.

Installation
1 Install the rear intrusion sensor.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
- Connect the electrical connector.
2 Install the rear seat armrest. For additional information, refer to Rear Seat Armrest Rear Seat Armrest
