Auxiliary Water Pump: Service and Repair

Auxiliary Coolant Flow Pump

Removal
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications [1][2]Battery
2
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
3 Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding - Vehicles With: Supercharger Cooling System Draining, Filling and Bleeding
4 Remove the intake air resonator. For additional information, refer to Intake Air Resonator Service and Repair

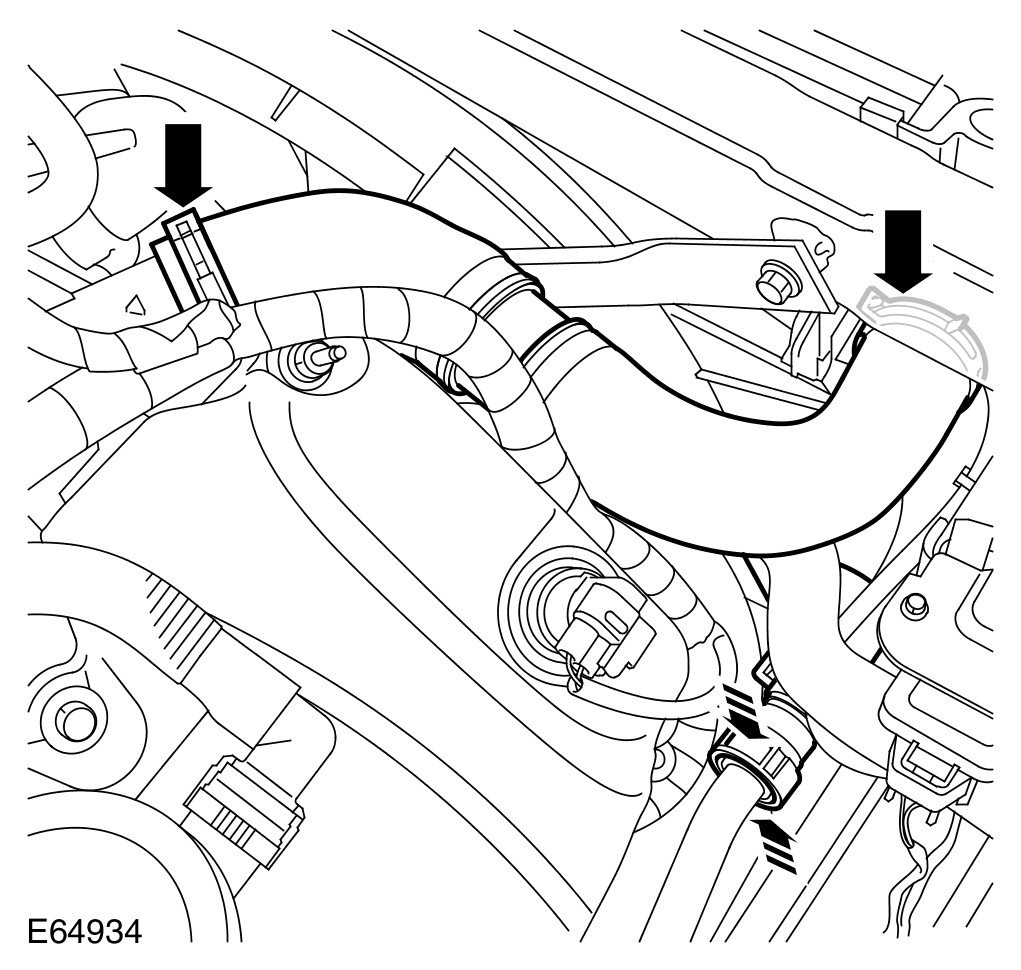

5 Remove the radiator top hose.
- Release the 2 clips.
- Disconnect the quick release connector.

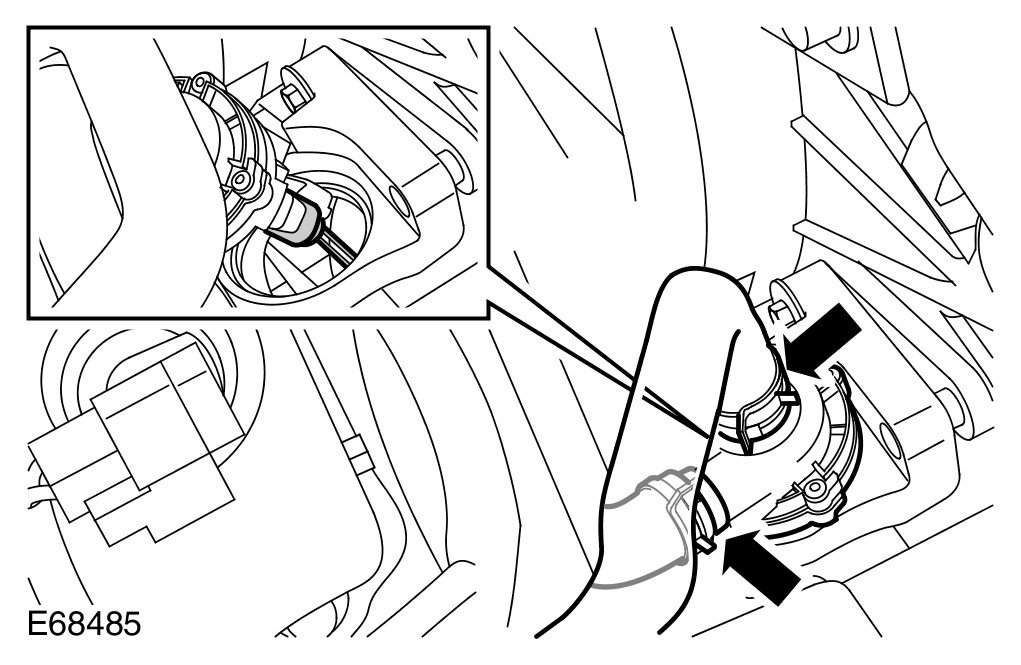

6 Remove the auxiliary coolant flow pump.
- Release the clips and disconnect the 2 coolant hoses.
- Disconnect the electrical connector.

Installation
1 Install the auxiliary coolant flow pump.
- Connect the electrical connector.
- Connect the coolant hoses and secure with the clips.
2 Install the radiator top hose.
- Secure with the clips.
- Connect the quick release connector.
3 Install the intake air resonator. For additional information, refer to Intake Air Resonator Service and Repair
4 Connect the battery ground cable and install the cover. For additional information, refer to Specifications [1][2]Battery
5 Refill the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding - Vehicles With: Supercharger Cooling System Draining, Filling and Bleeding
