Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Locations >> IP001 - IP090 >> IP054

IP054

IP054

IP054:

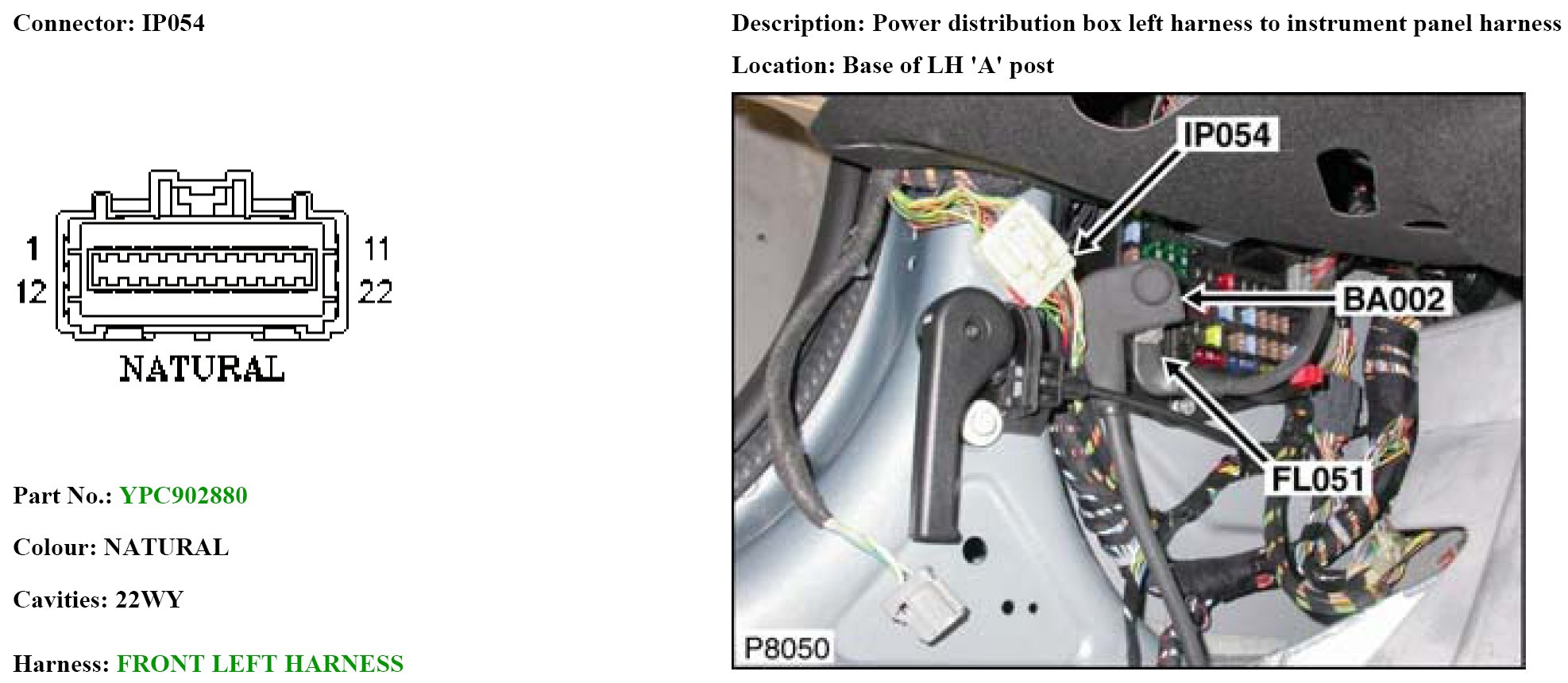

IP054 (Part 1):

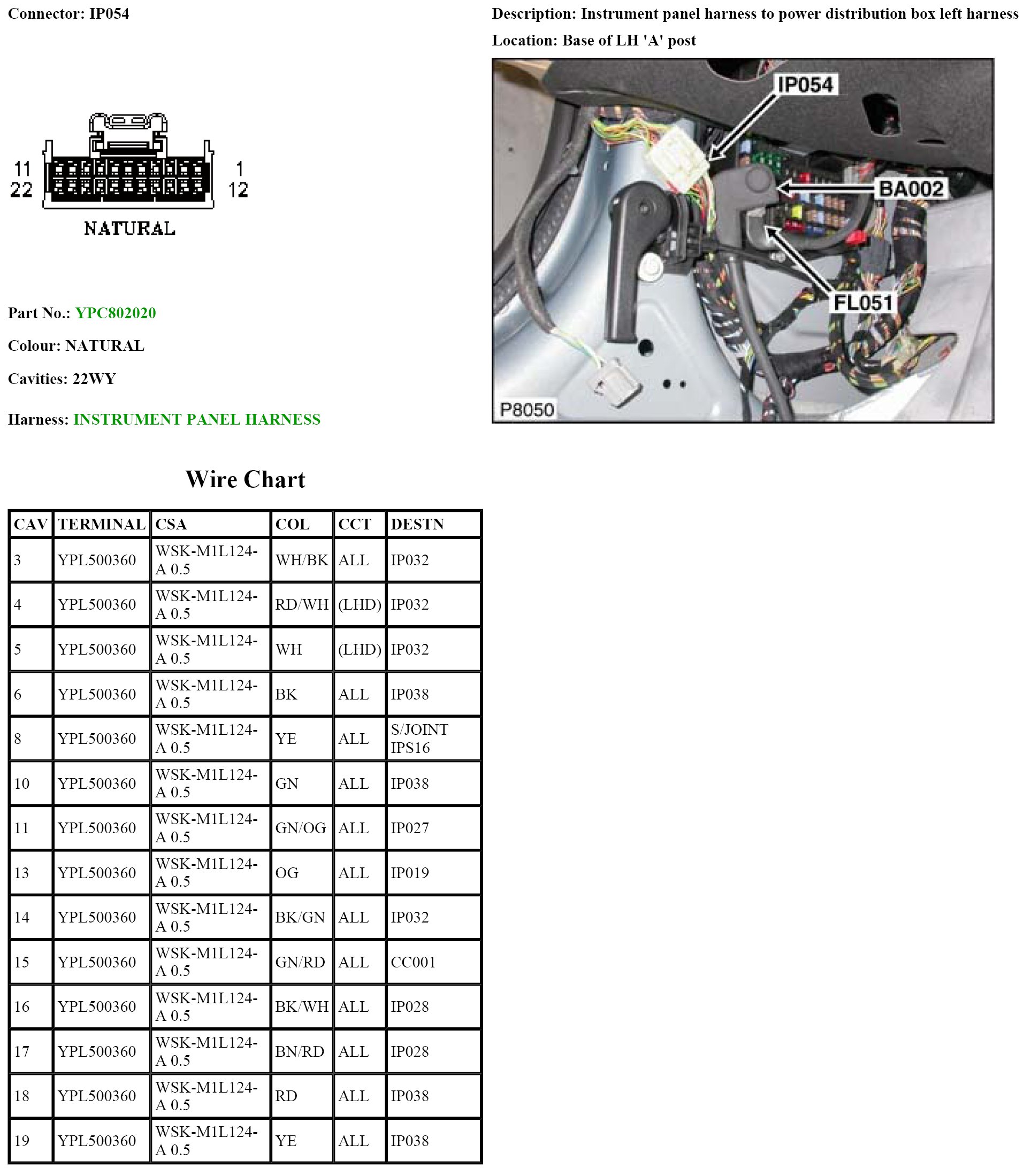

IP054 (Part 2):
