Transmission Mount: Service and Repair

Transmission Support Insulator

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the exhaust system. For additional information, refer to Exhaust System Service and Repair
3
CAUTION: During this procedure the transmission crossmember is removed, make sure the transmission is correctly supported to avoid damaging associated components.
Using a transmission jack, support the transmission.

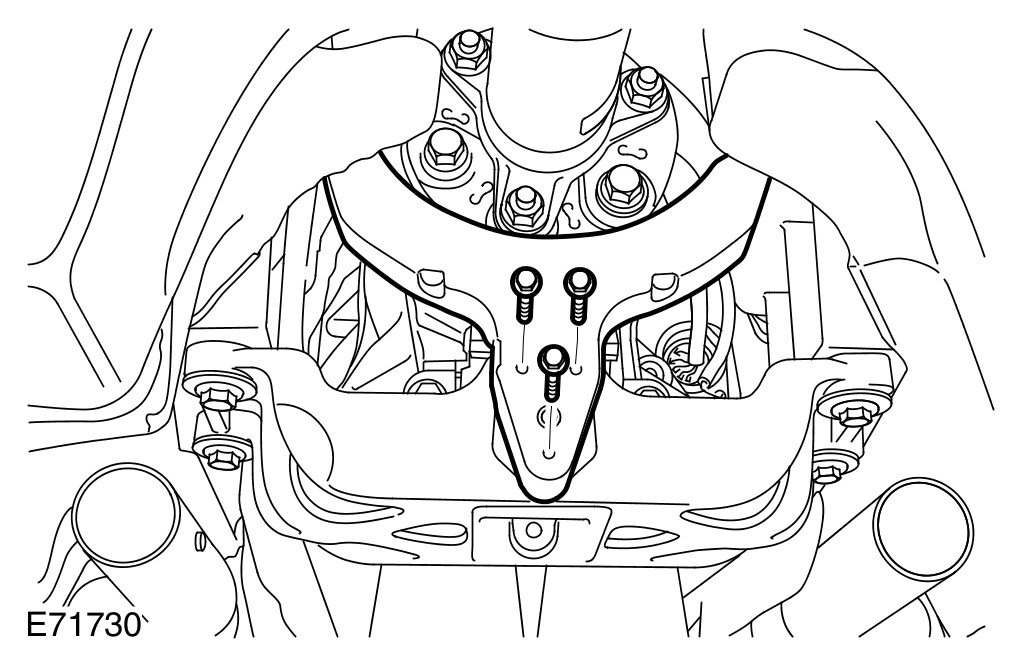

4 Remove the transmission support crossmember damper.
- Remove the 3 bolts.

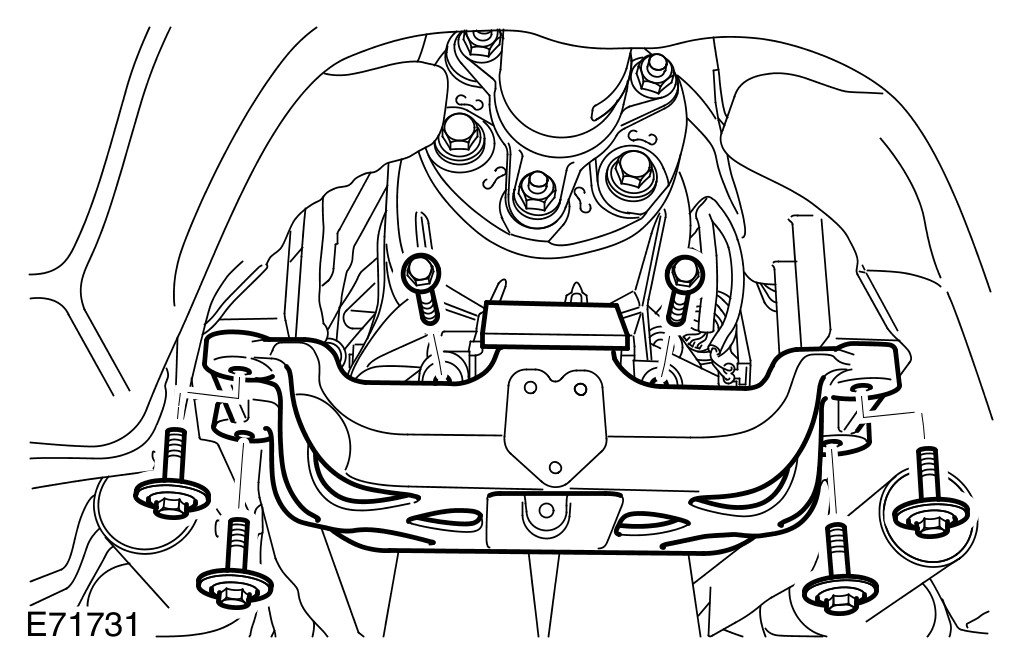

5 Remove the transmission support crossmember.
- Remove the 6 bolts.




6
NOTE:
Do not disassemble further if the component is removed for access only.

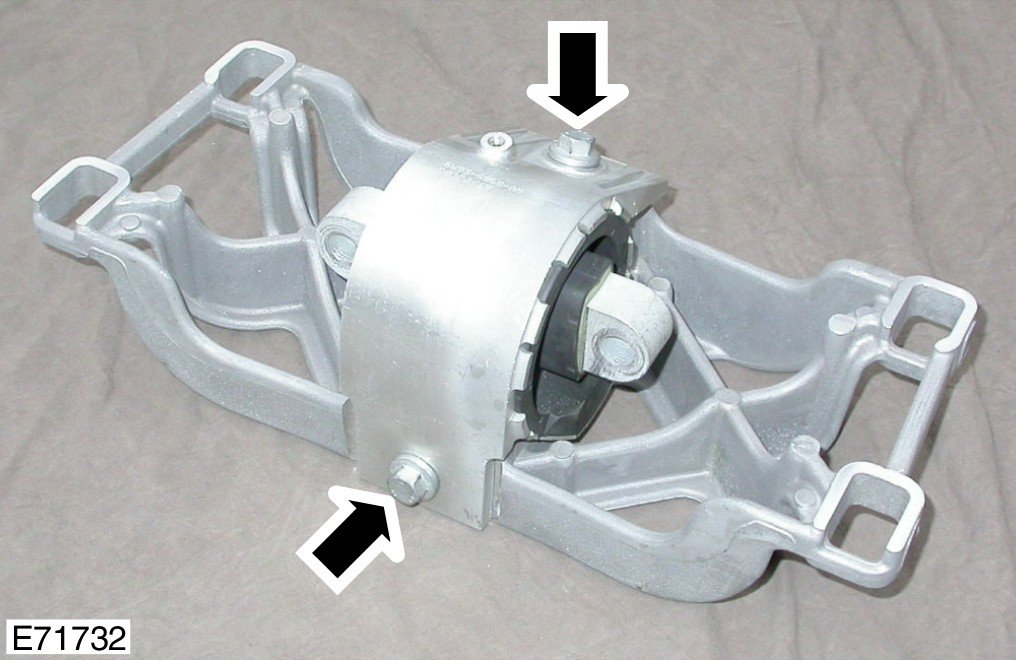

Remove the transmission support insulator.
- Remove the 2 bolts.

Installation
1 Install the transmission support insulator.
- Tighten the bolts to 25 Nm (18 lb.ft).
2 Install the transmission support crossmember.
- Tighten the bolts to 48 Nm (35 lb.ft).
3 Install the transmission support crossmember damper.
- Tighten the bolts to 10 Nm (7 lb.ft).
4 Remove the transmission jack.
5 Install the exhaust system. For additional information, refer to Exhaust System Service and Repair
