Front Wheel Speed Sensor

Front Wheel Speed Sensor

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Remove the LH front wheel. For additional information, refer to Wheel and Tire Service and Repair




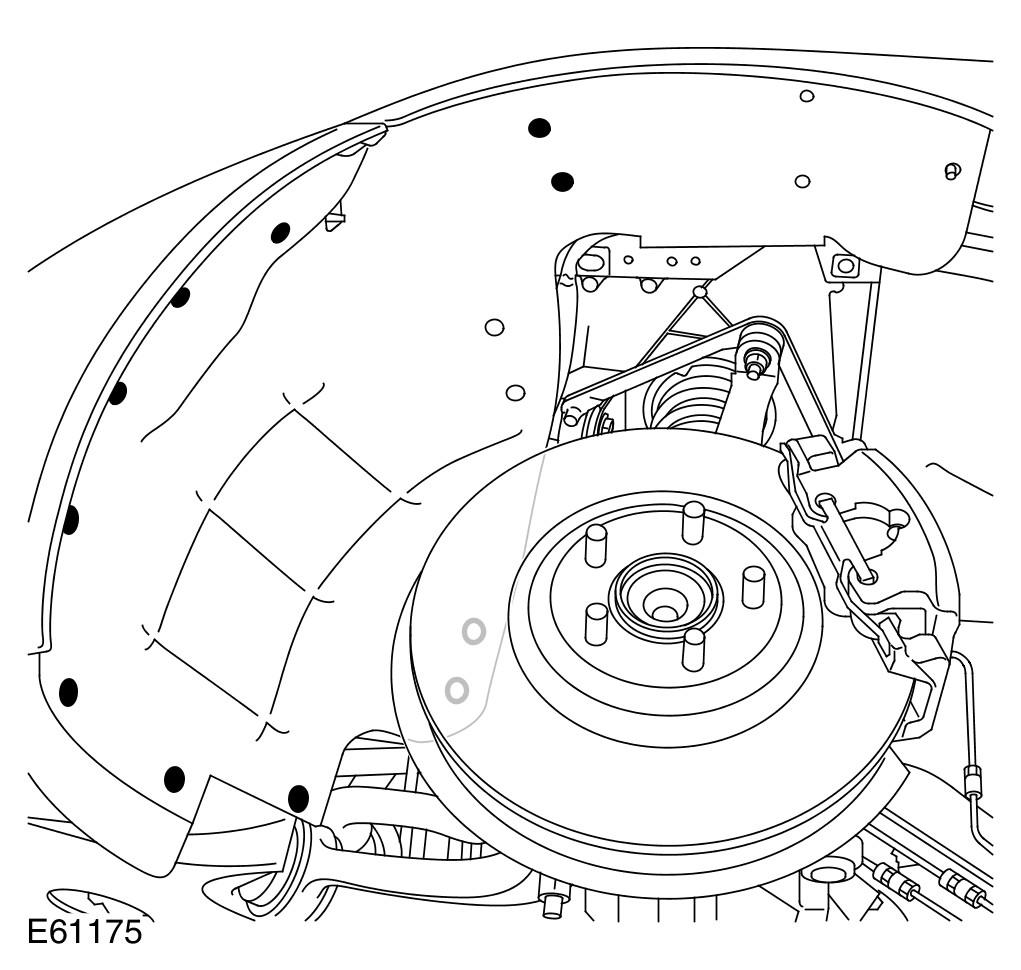

3 Release the front of the fender splash shield.
- Remove the 11 Torx bolts.
- Tie the splash shield aside.

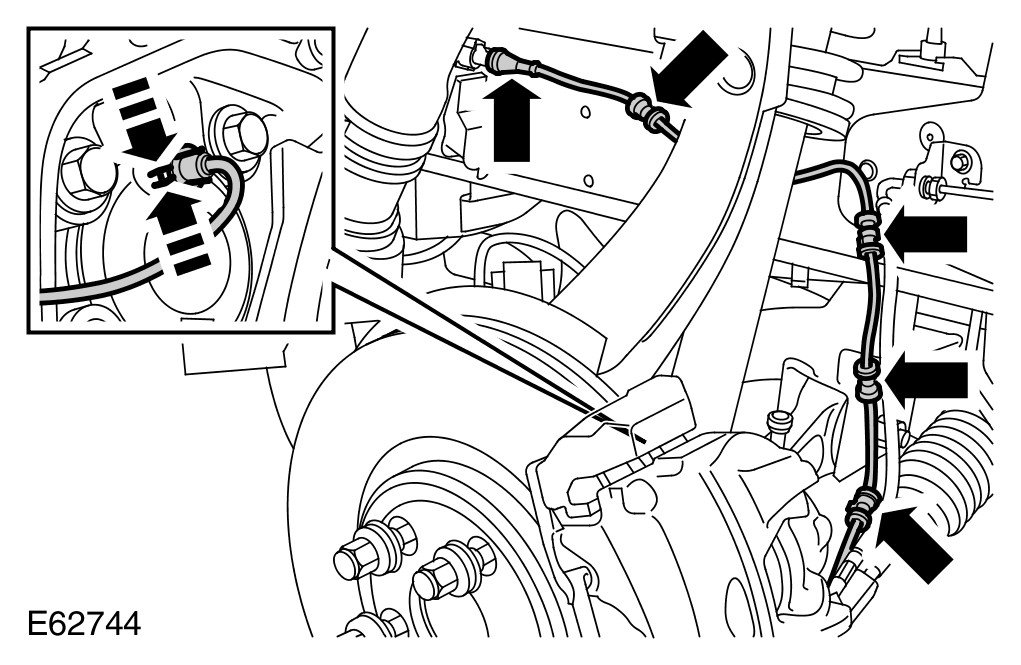

4 Remove the wheel speed sensor.
- Remove the retaining clip.
- Carefully release the 4 clips.
- Disconnect the electrical connector.

Installation
1 Install the wheel speed sensor.
- Install the retaining clip.
- Carefully secure the clips.
- Connect and secure the electrical connector.
2 Install the fender splash shield.
- Tighten the Torx bolts.
3 Install the wheel and tire. For additional information, refer to Wheel and Tire Service and Repair
