XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>

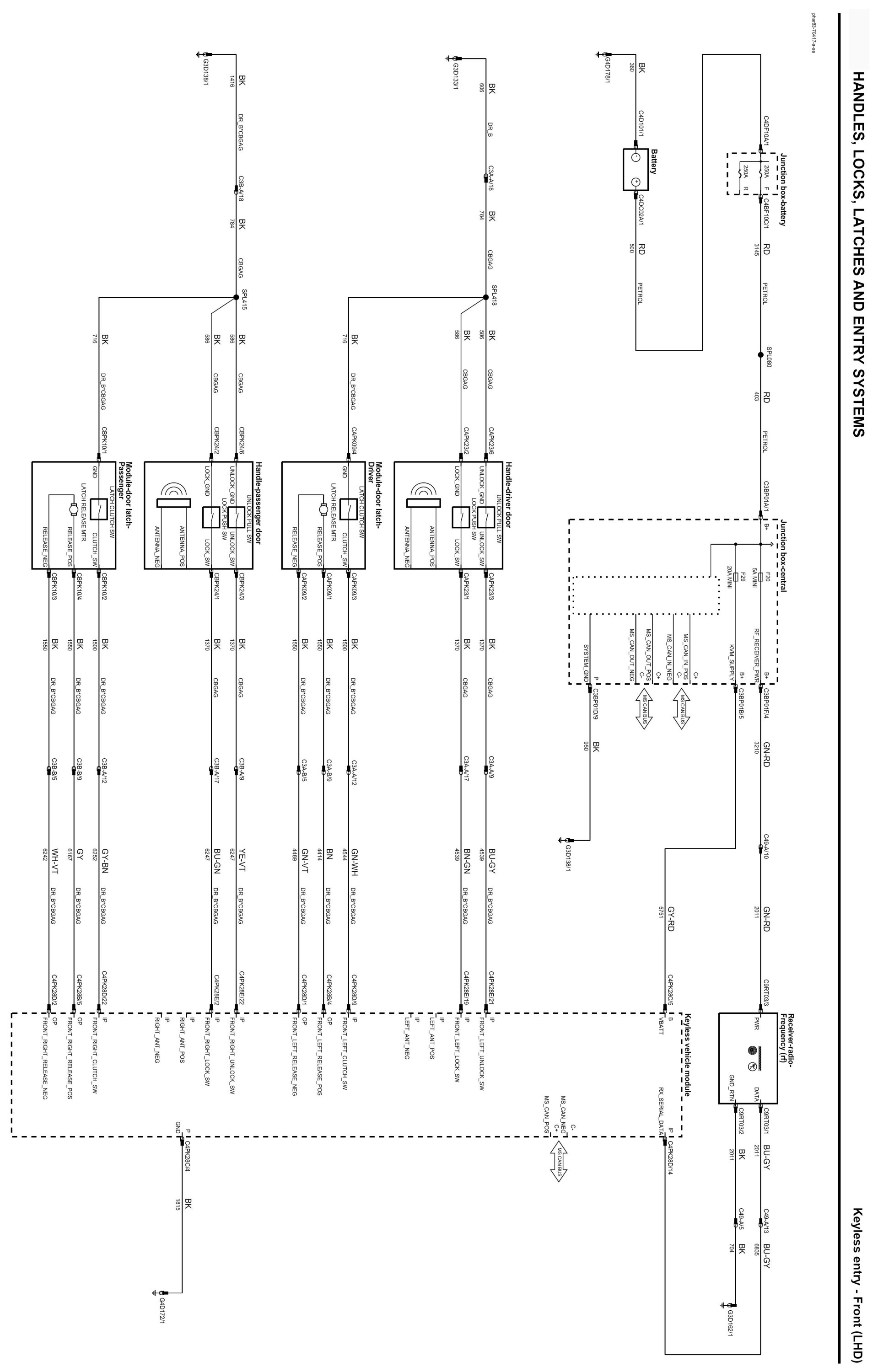

Keyless Entry - Front (LHD)
Keyless Entry - Front (LHD)
Keyless Entry
- Front (LHD)
