Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Engine Controls
>>
Emissions
Emissions
Emissions

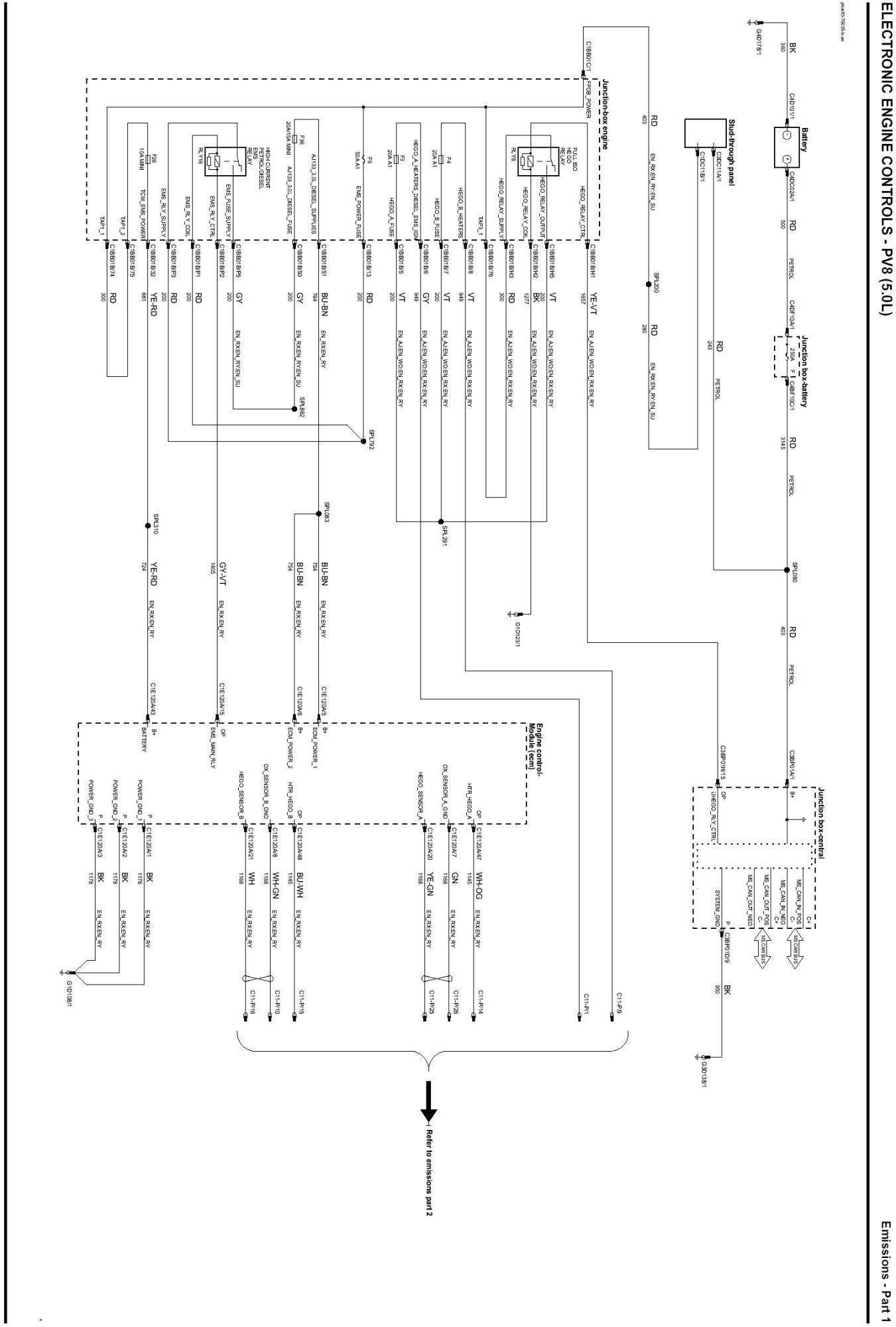

Emissions - (Part 1):

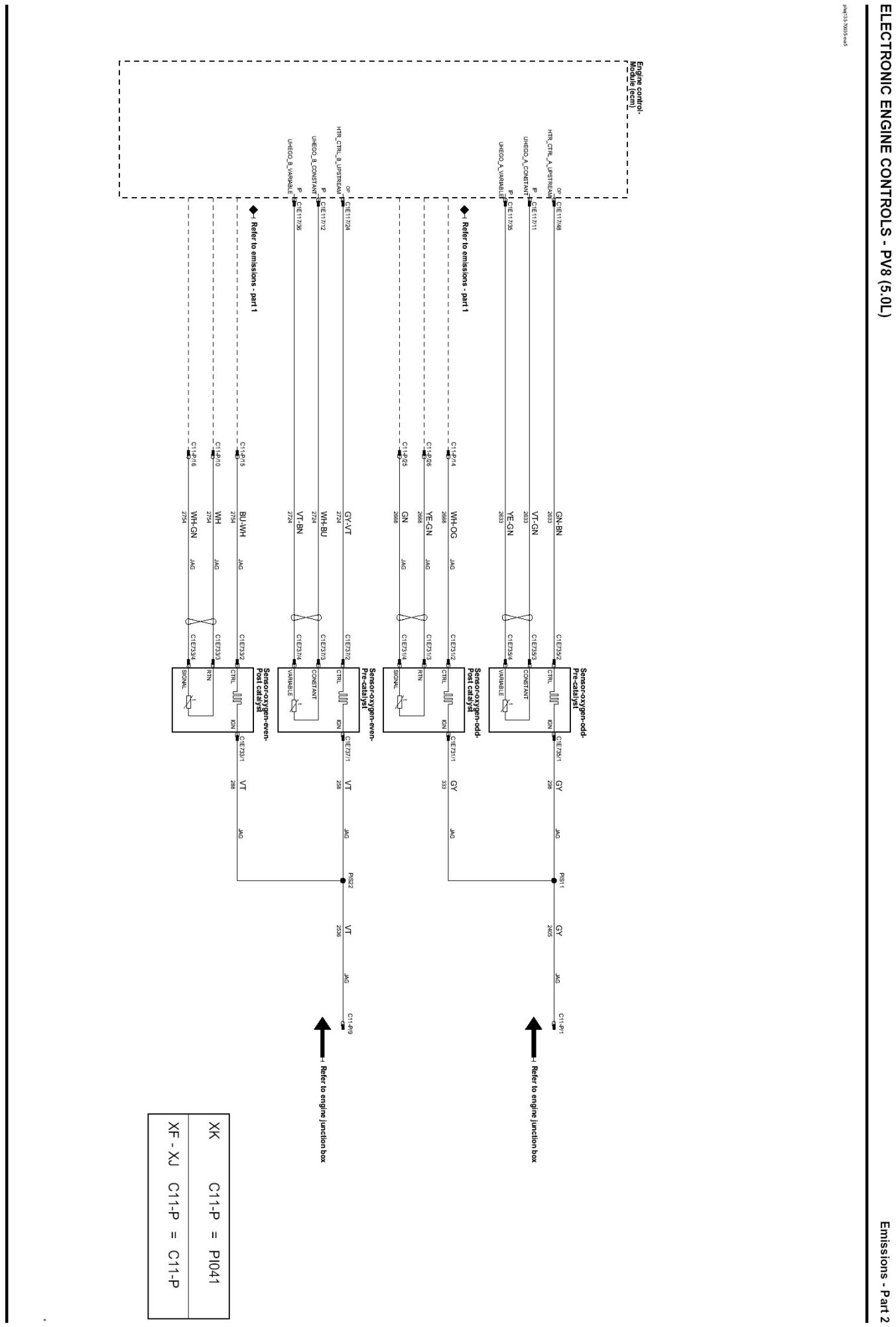

Emissions - (Part 2):
