XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Camshaft Position Sensor
>>

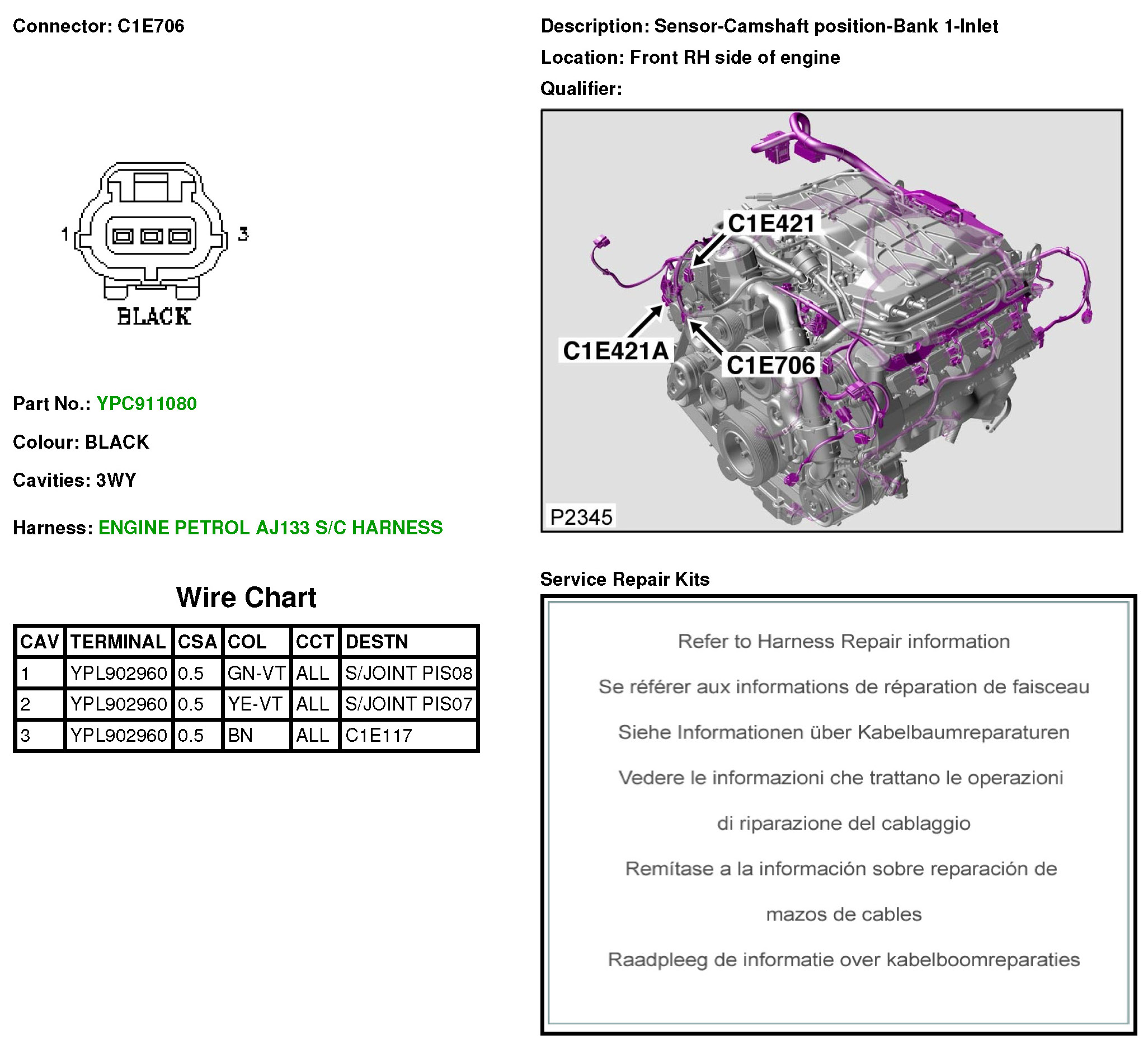

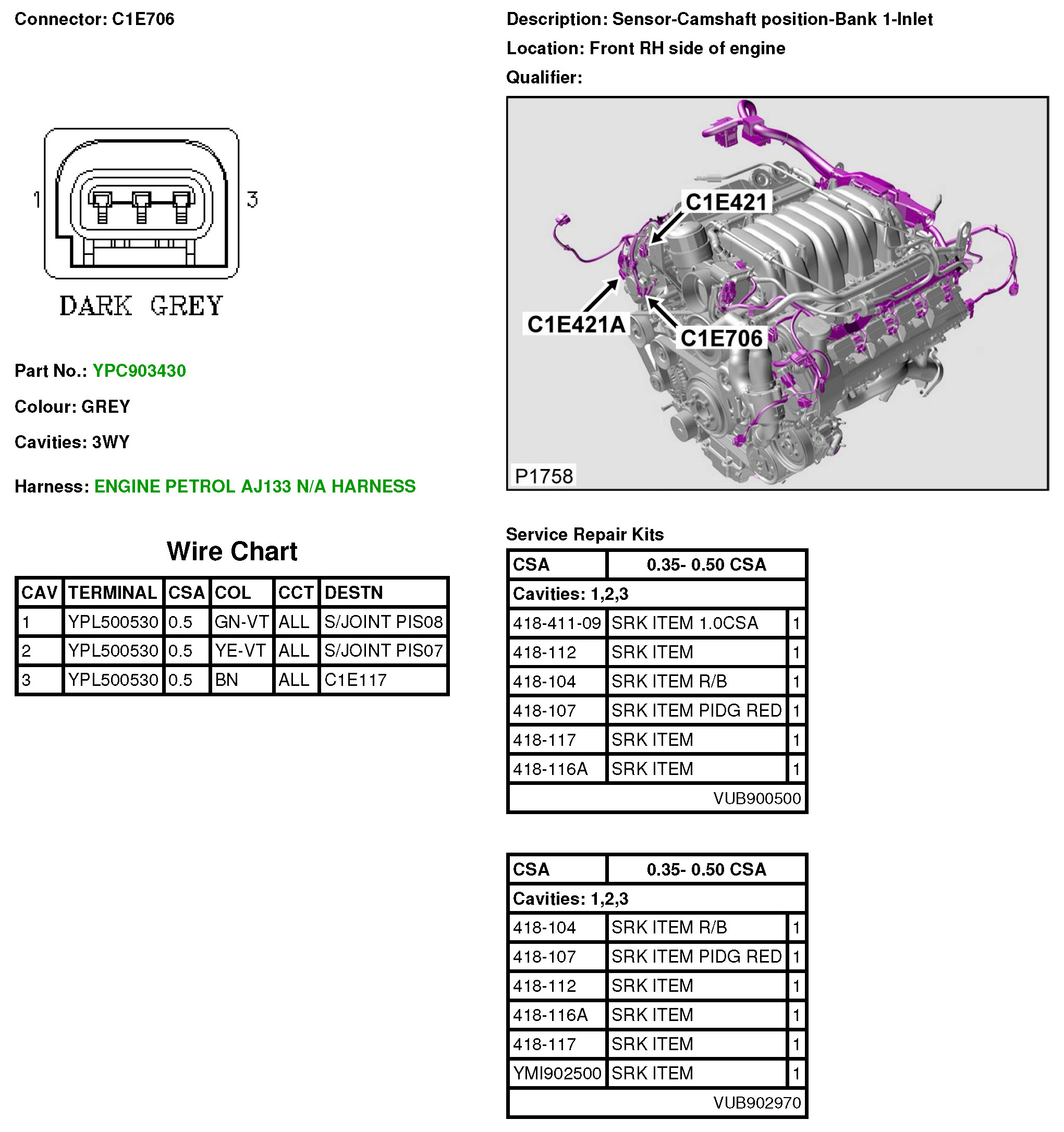

C1E706 Sensor-Camshaft Position-Bank 1-Inlet
C1E706 Sensor-Camshaft Position-Bank 1-Inlet
C1E706
