Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

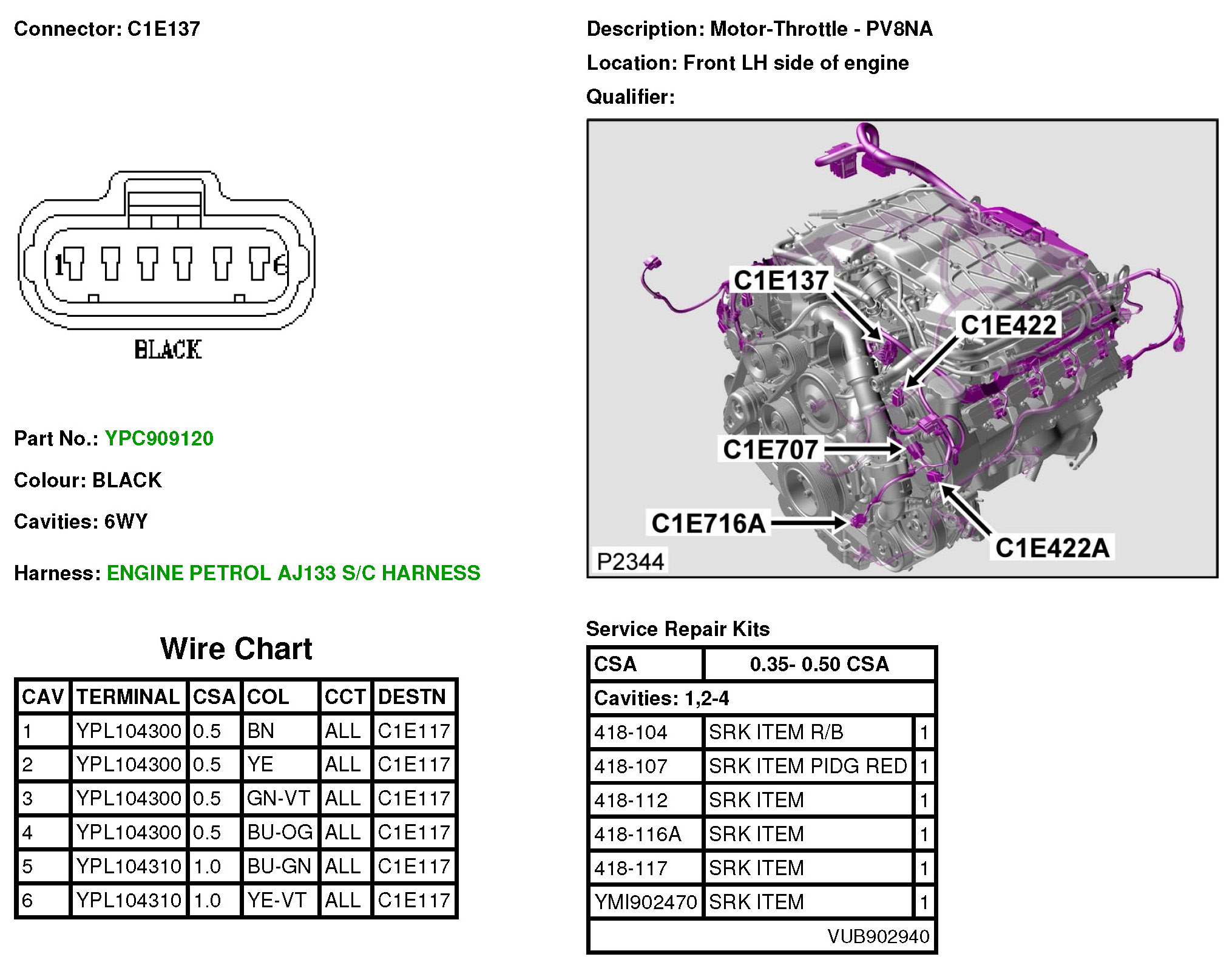

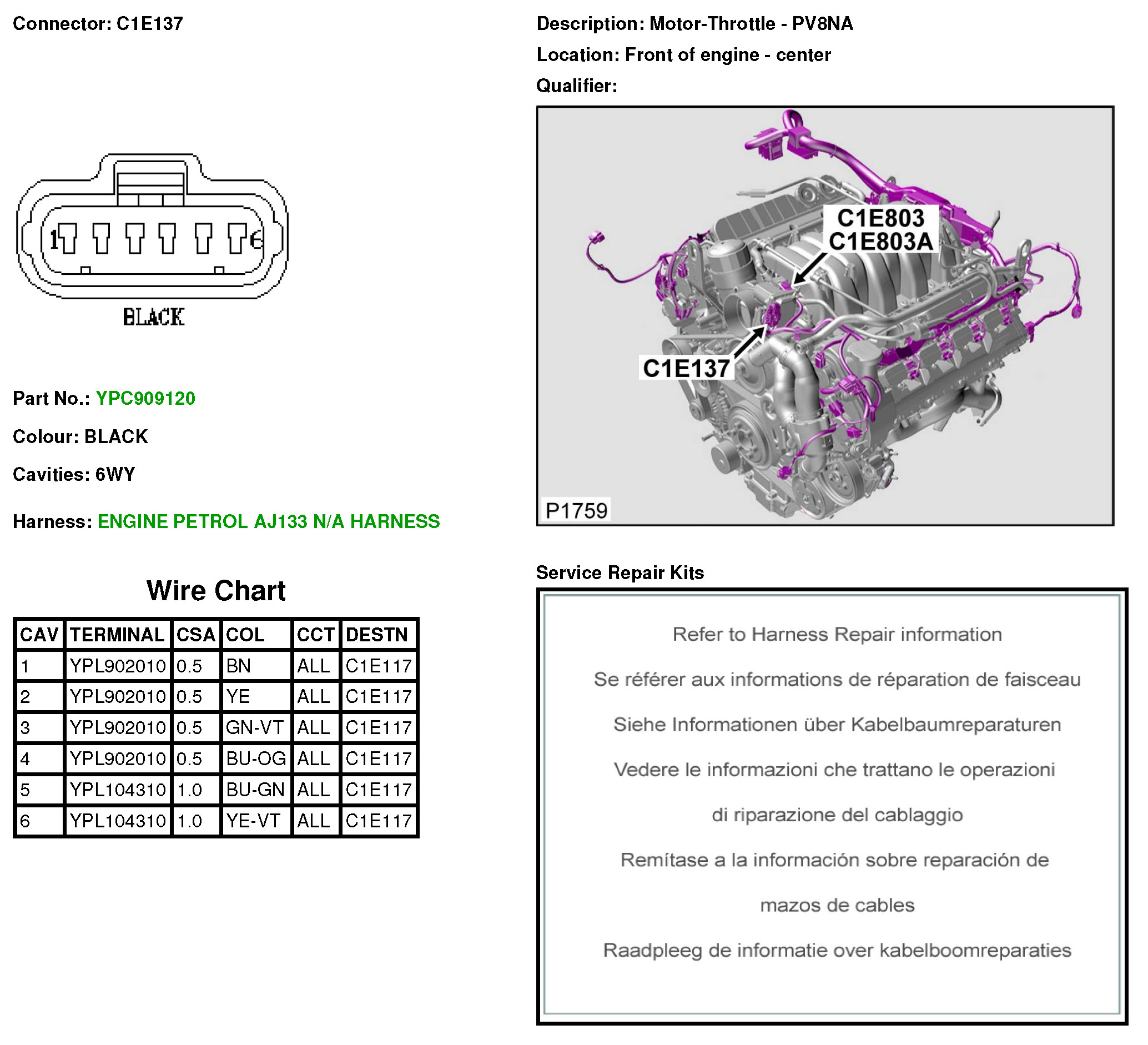

Electronic Throttle Actuator
Electronic Throttle Actuator
C1E137
