Engine - Coolant Temperature Sensor/Switch
>>

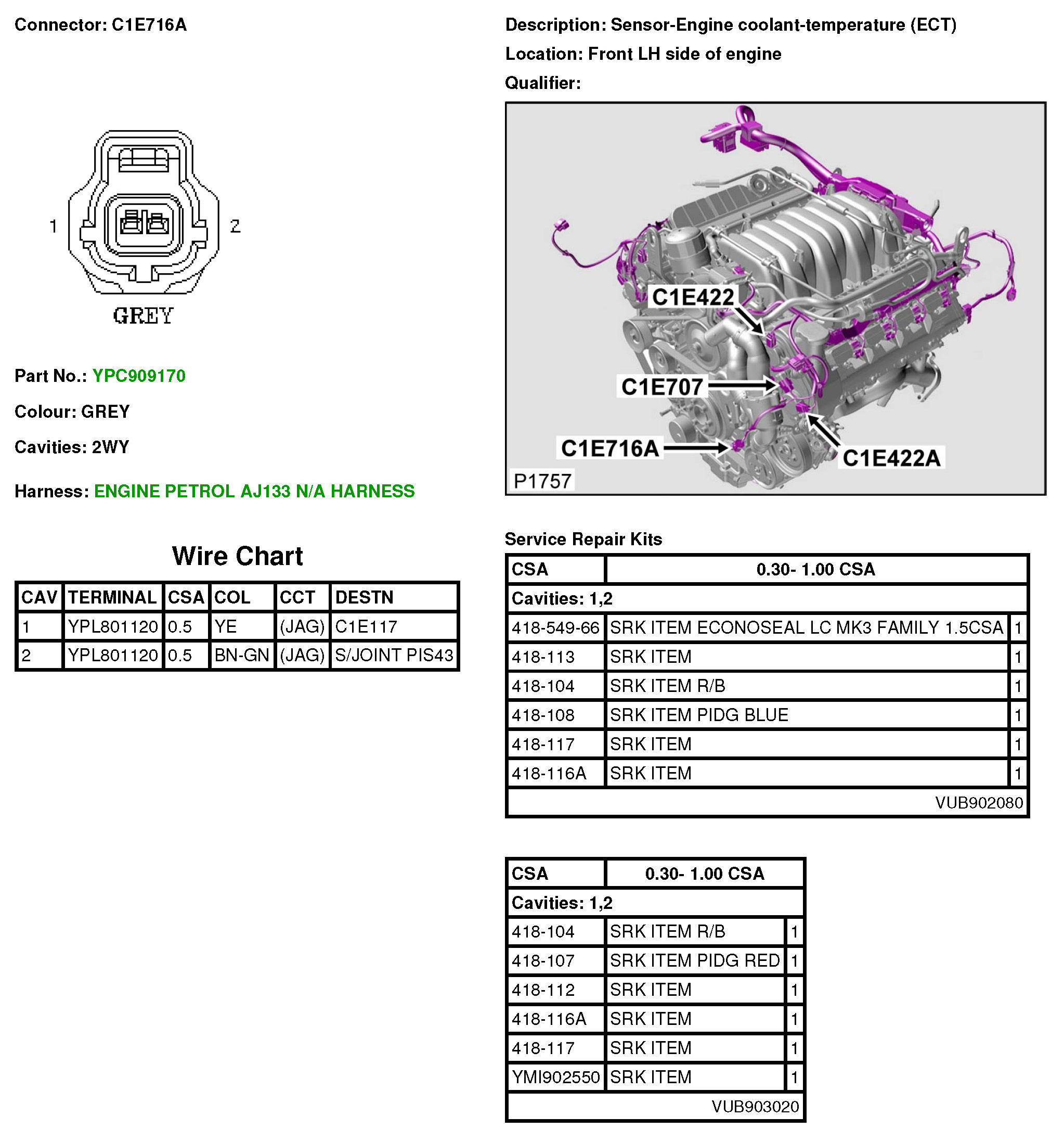

C1E716A Sensor-Engine Coolant-Temperature (ECT)
C1E716A Sensor-Engine Coolant-Temperature (ECT)
C1E716A
