Home >> Jaguar >> 2012 >> XF (X250) V8-5.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C11-A - C1CA37 >> C11-R

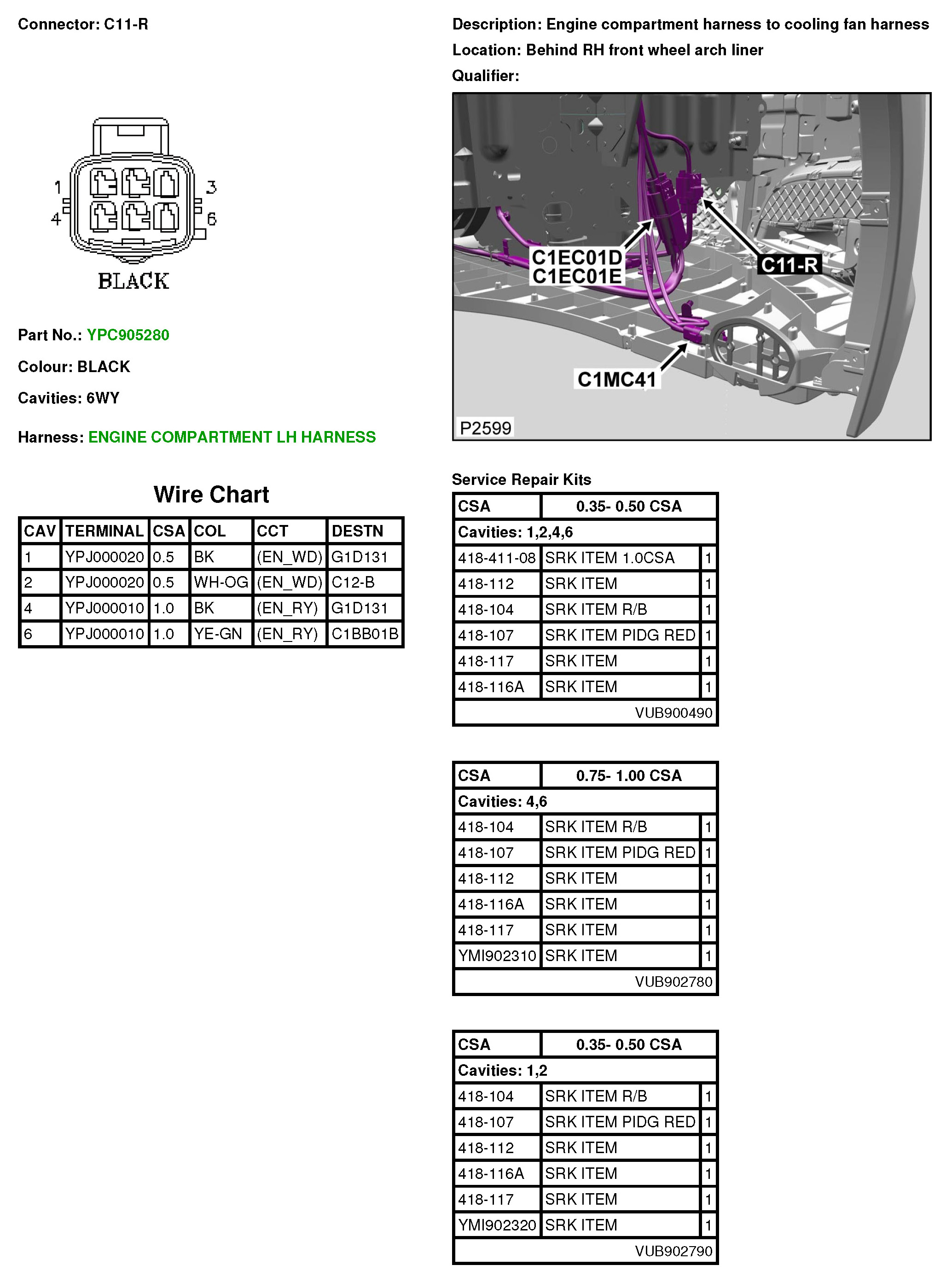

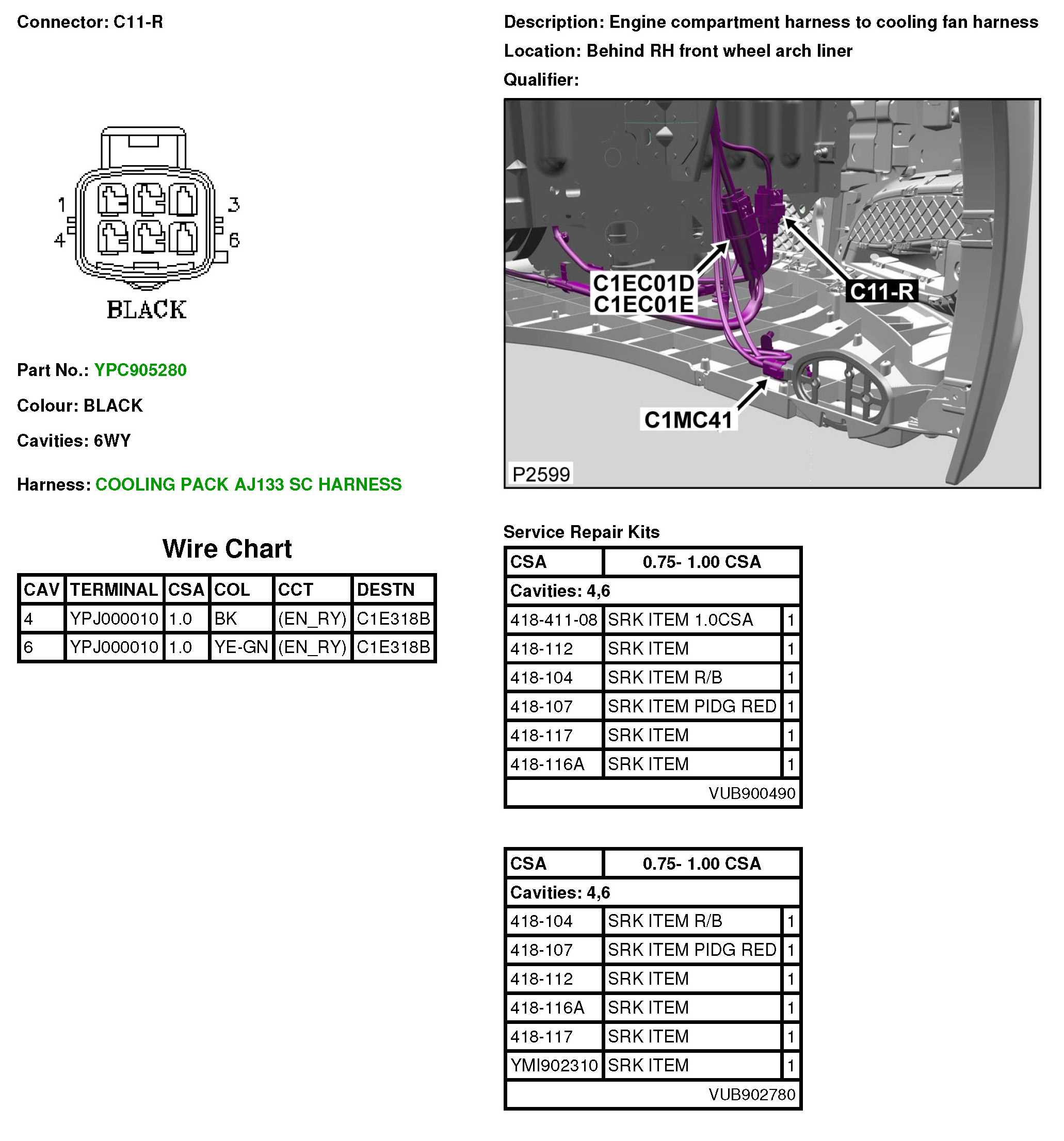

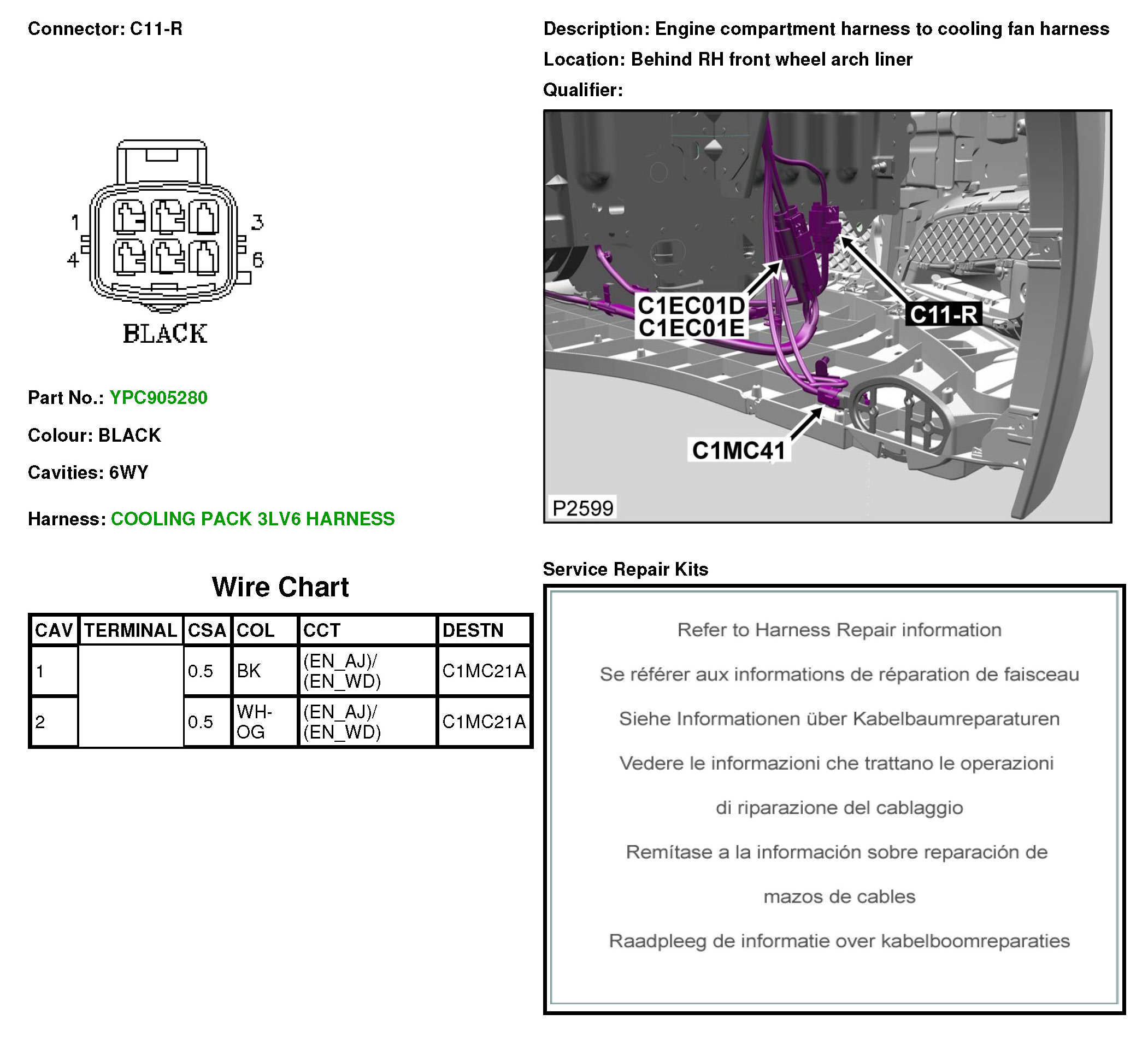

C11-R



C11-R
