Home >> Jaguar >> 2012 >> XK (X150) V8-5.0L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Pad Wear Sensor >> FL113 Sensor-Pad Wear

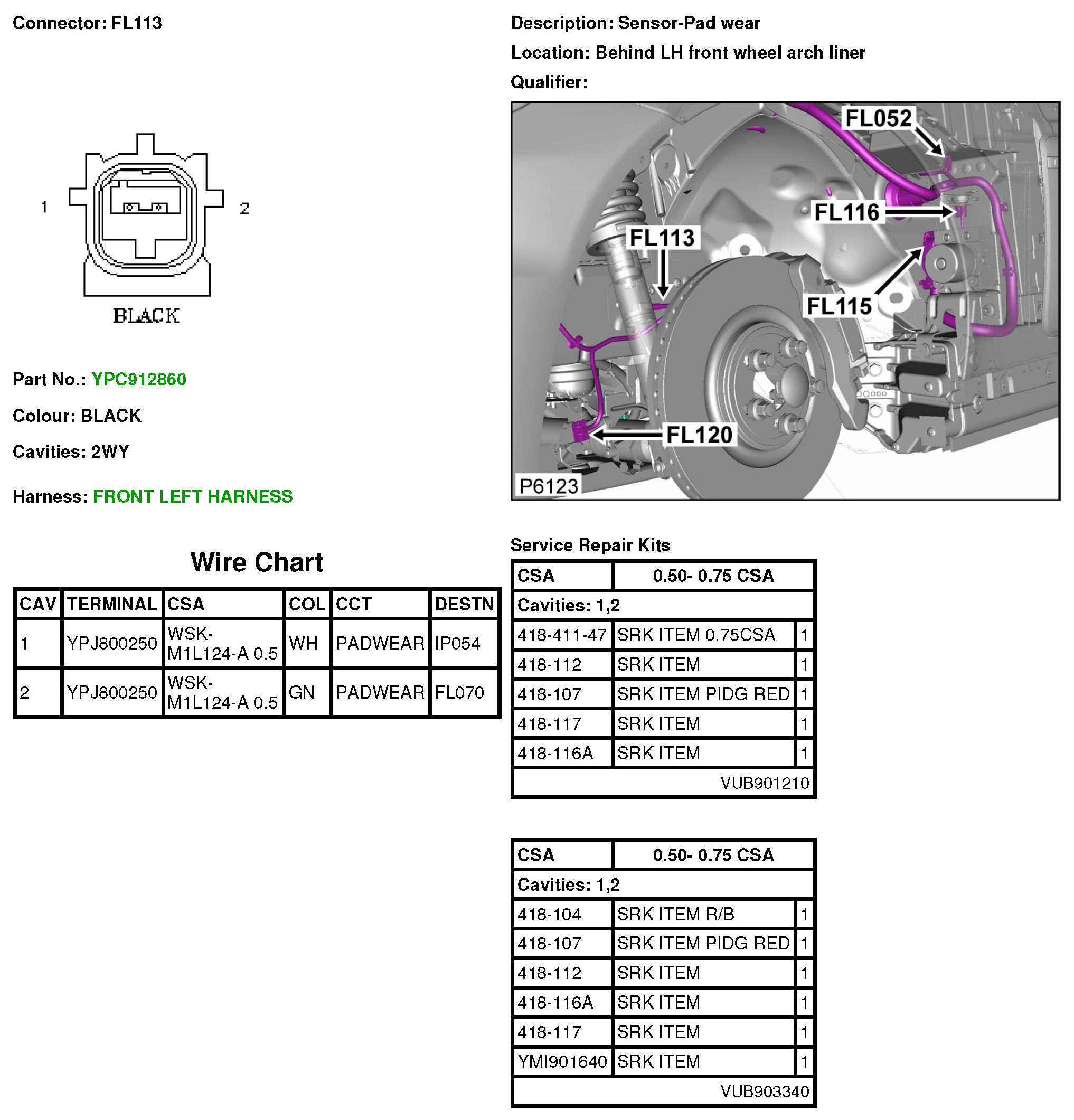

FL113 Sensor-Pad Wear



FL113
