Torque Specifications

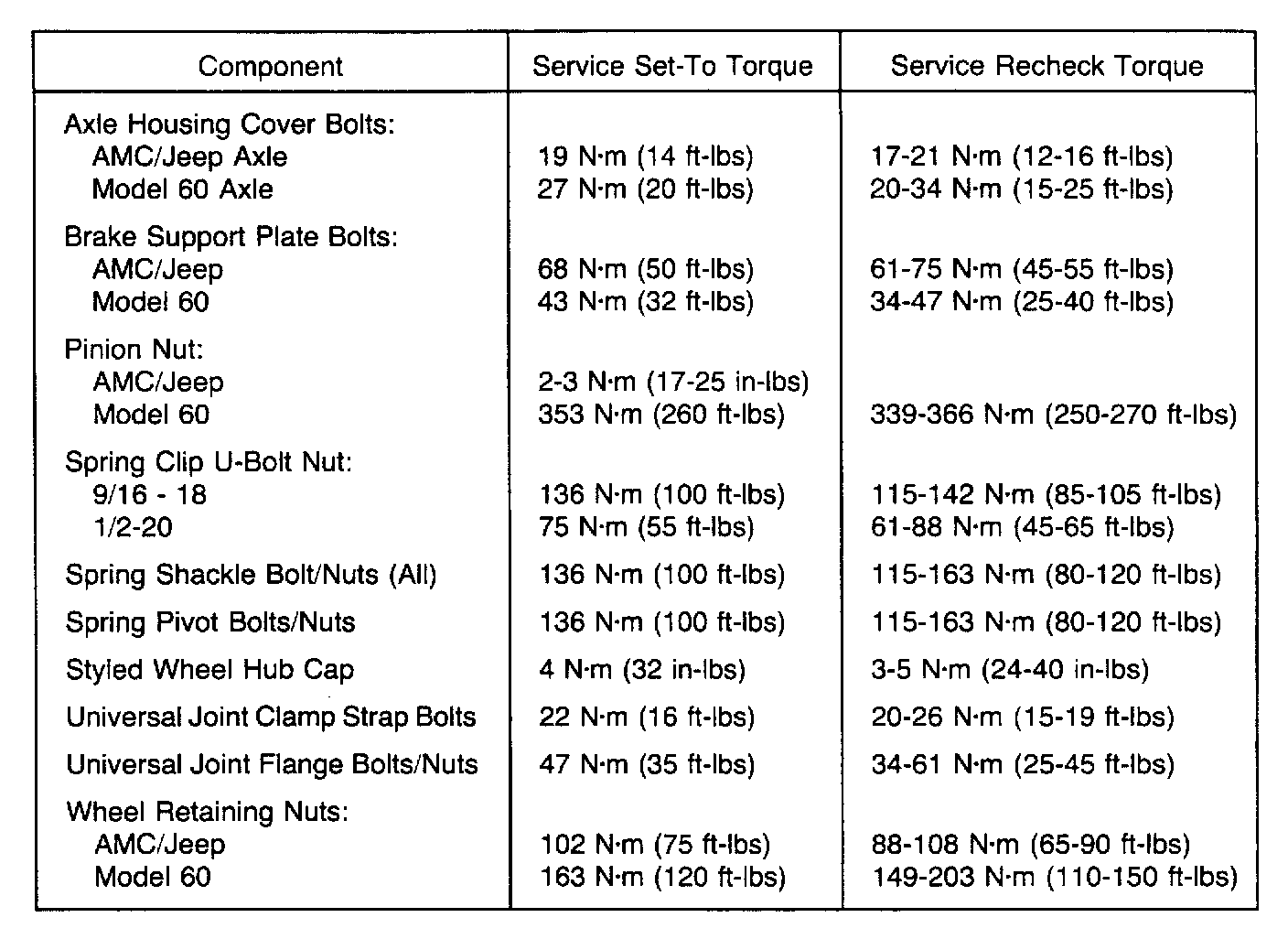

Front Specifications

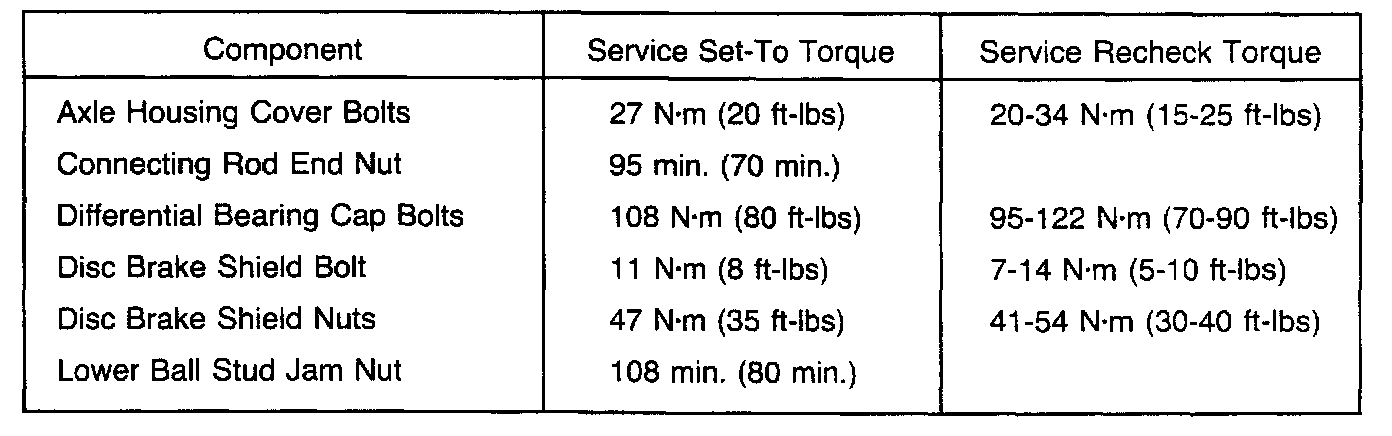

Model 44

Torque Specifications:

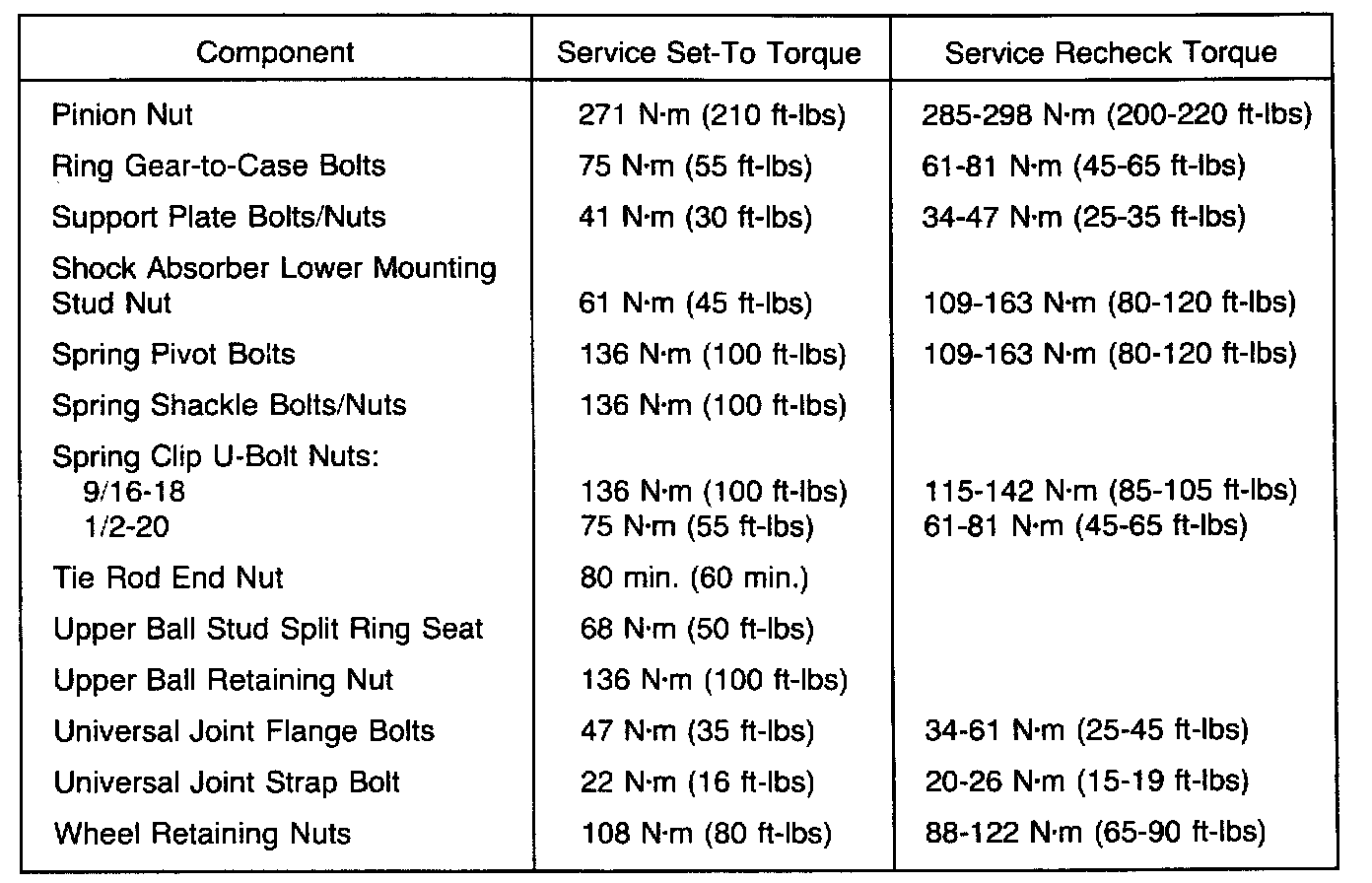

Continued:

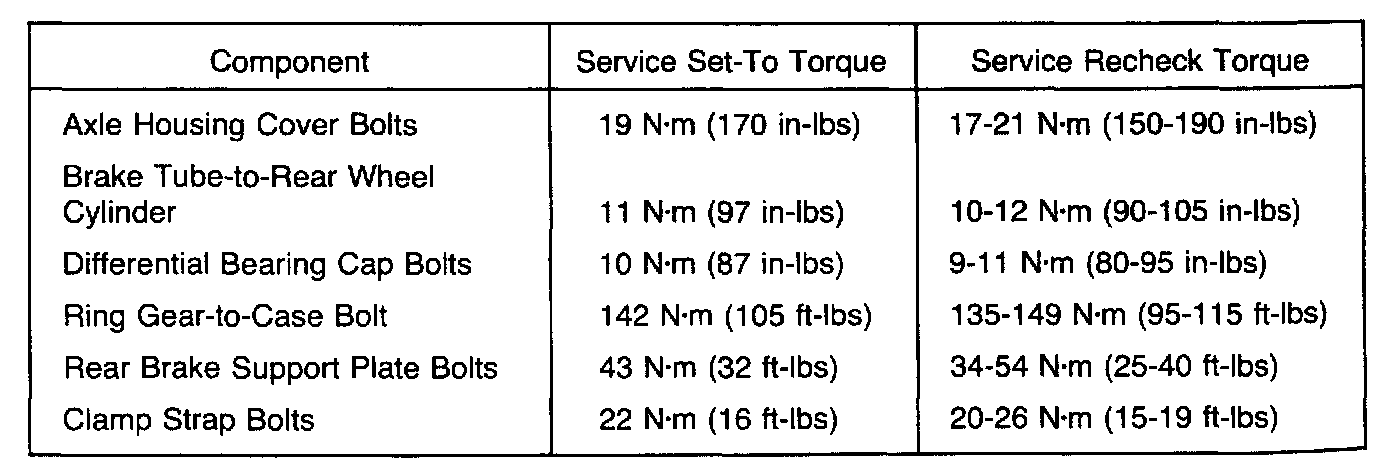

Rear Specifications

Torque Specifications:




Continued:

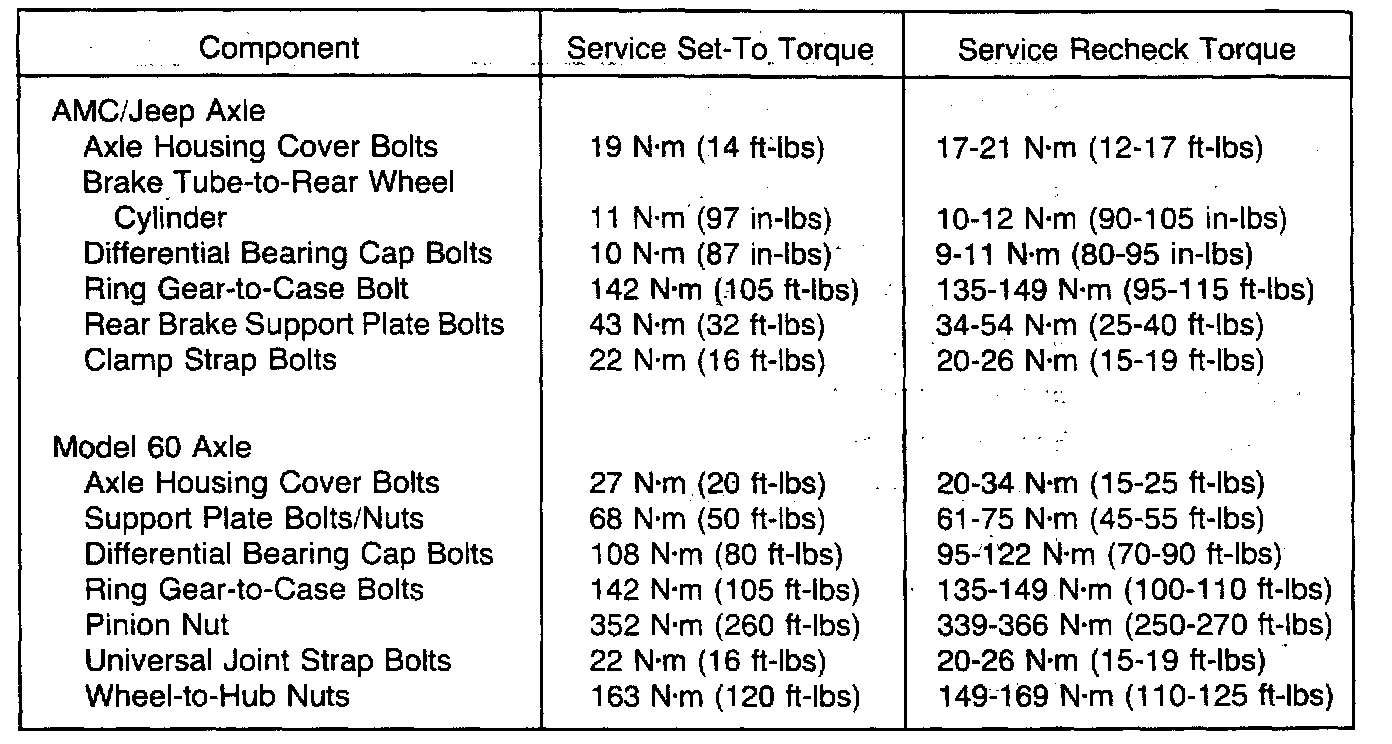

Trac-loc Differential Torque Specifications:
