Jeep Truck
>>
1988
>>
Cherokee 2WD L6-242 4.0L VIN M FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

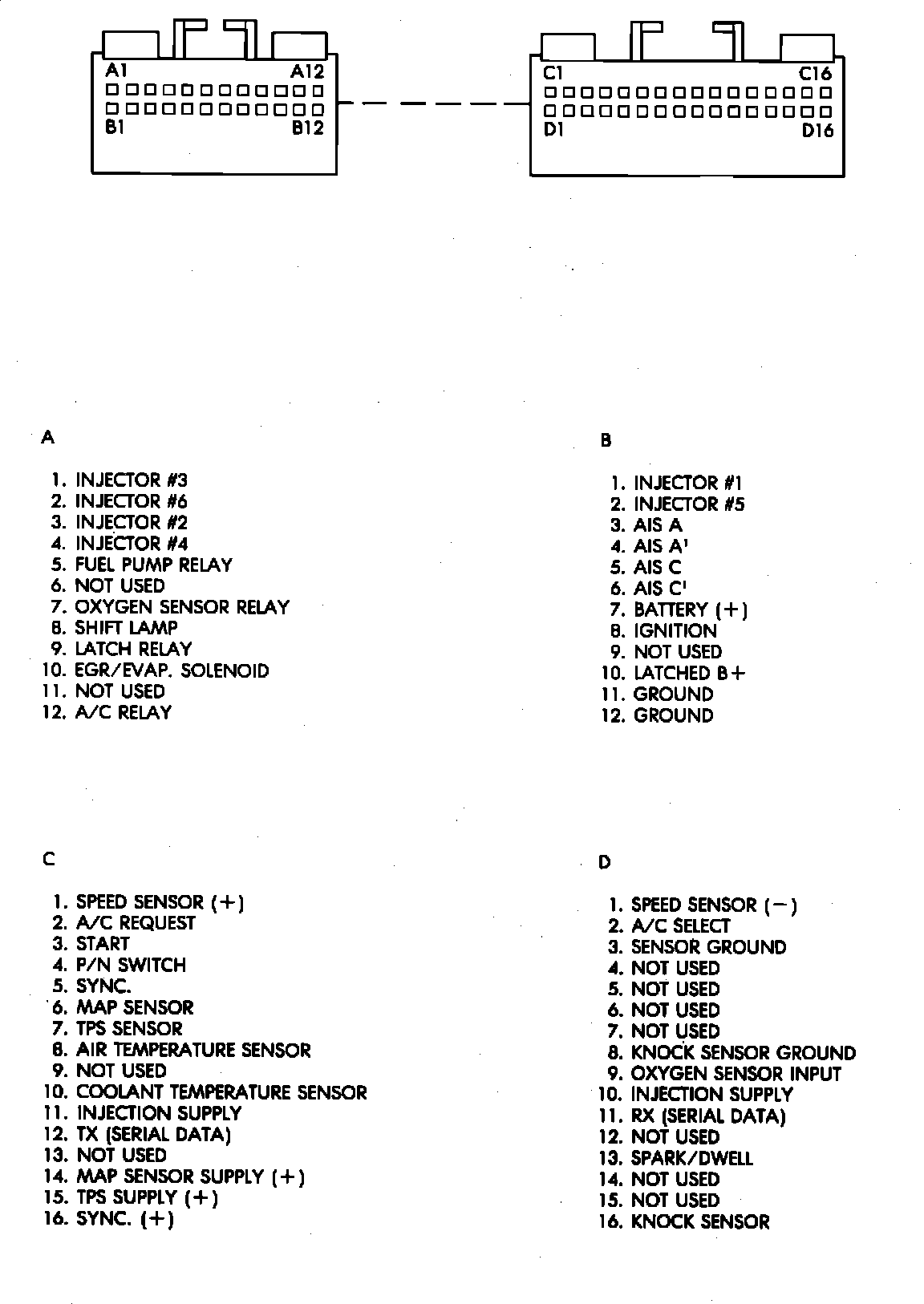

ECU Connector Identification:
