Power Window Motor: Diagrams

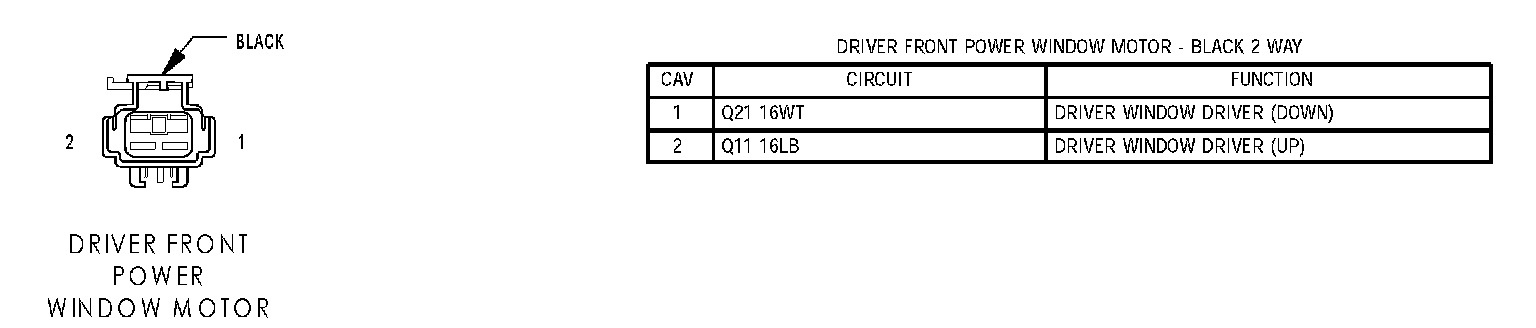

Driver Front Power Window Motor:

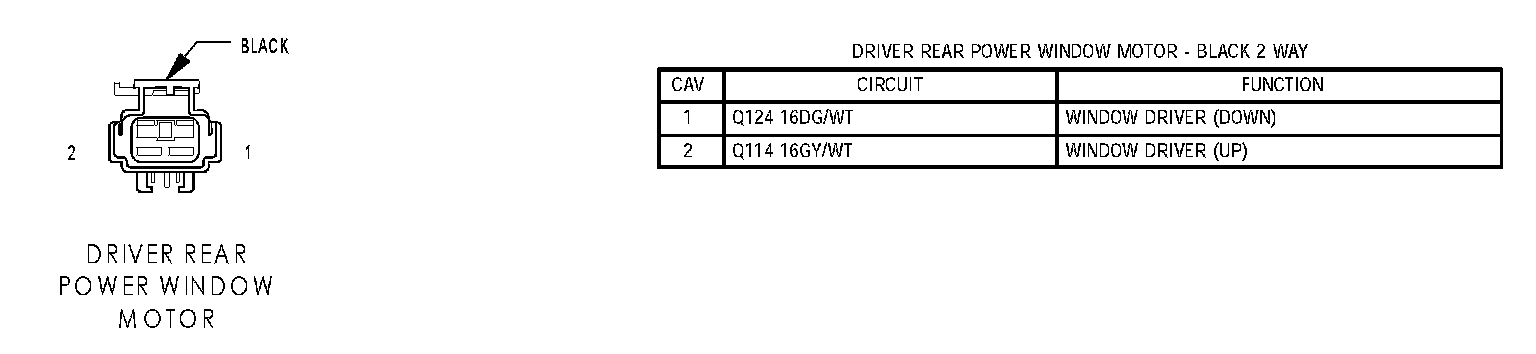

Driver Rear Power Window Motor:

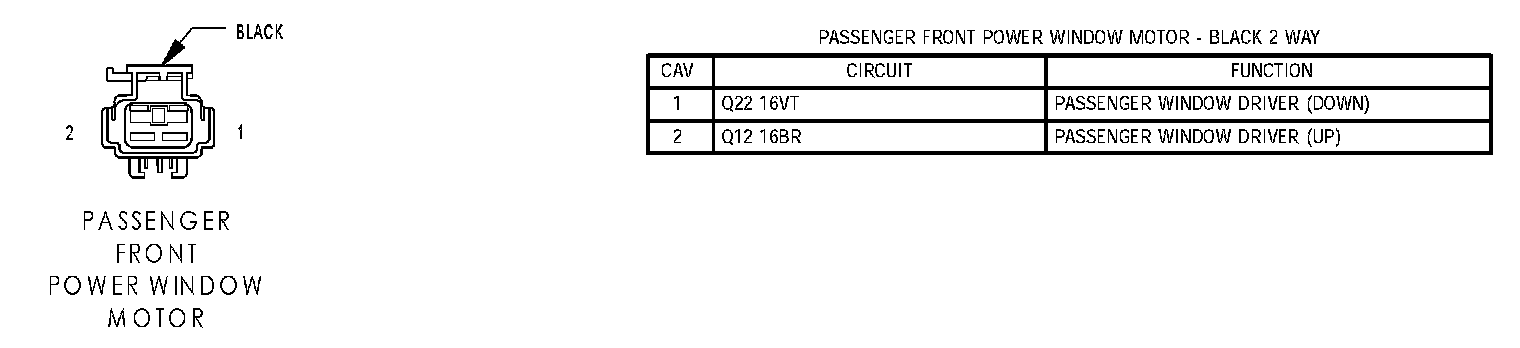

Passenger Front Power Window Motor:

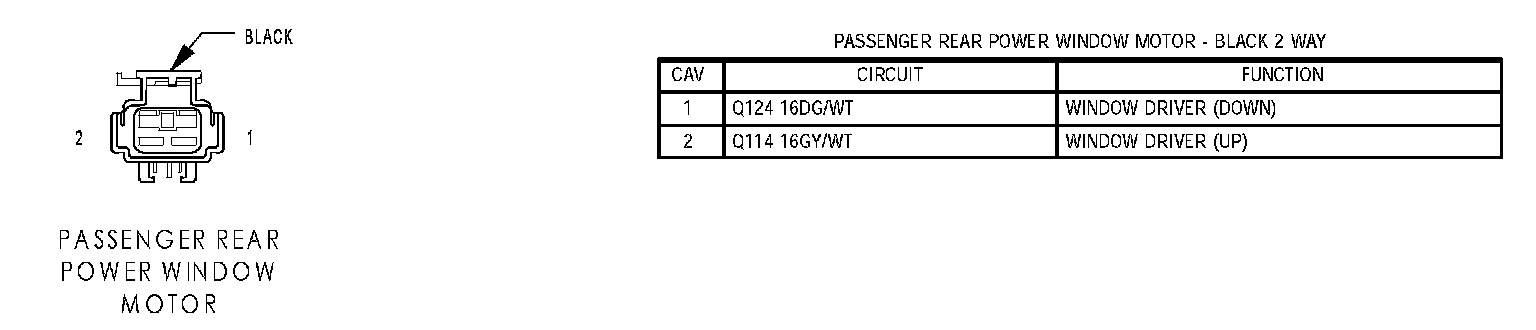

Passenger Rear Power Window Motor:
