Procedures

REMOVAL
1. Remove waterdam.
2. Remove the stationary glass.
3. Raise the door glass and support.
4. Disconnect the speaker harness and power window harness, if equipped.

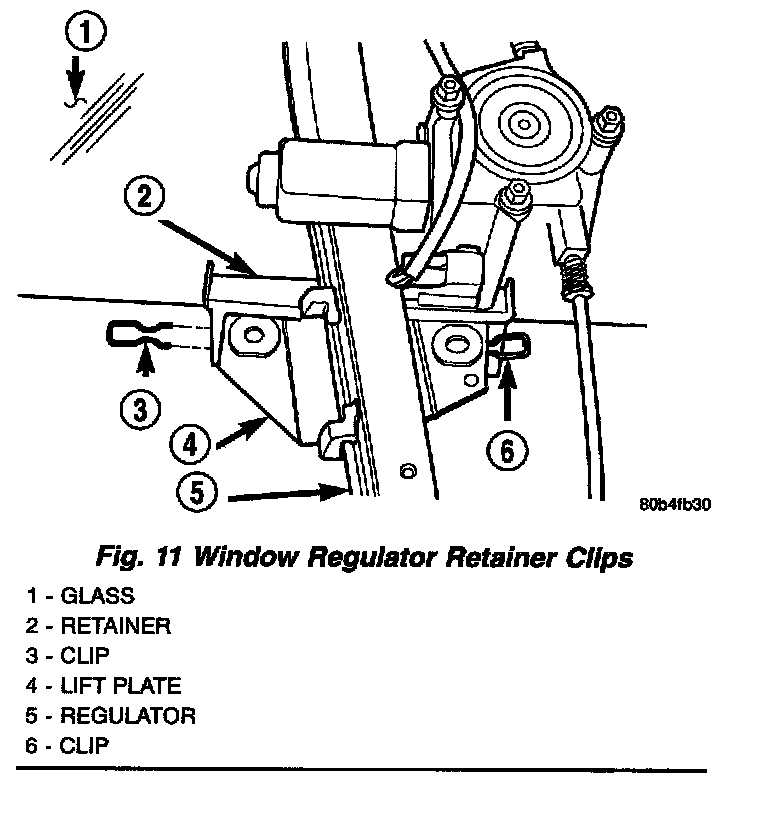

Window Regulator Retainer Clips:

5. Remove the window clips retaining regulator.
6. Remove the door glass.

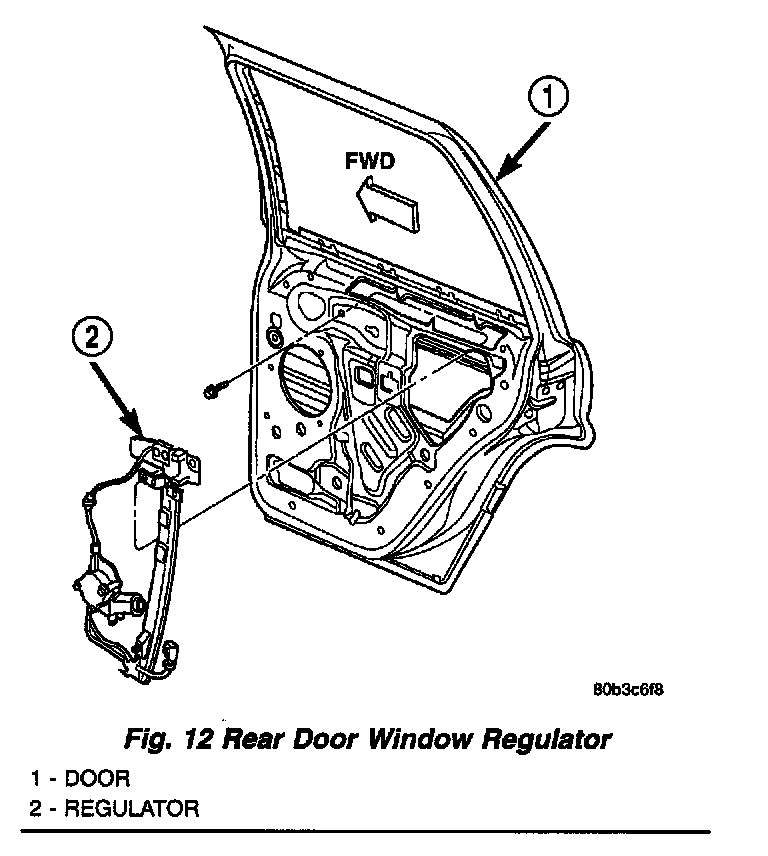

Rear Door Window Regulator:

7. Remove the fasteners retaining the regulator.
8. Remove the regulator.

INSTALLATION
1. Position the window regulator in the door.
2. Install the fasteners retaining the regulator.
3. Install the door glass.
4. Install the window clips retaining regulator.
5. Lower the door glass.
6. Install the stationary glass.
7. Connect the power window and speaker harness if equipped.
8. Install the waterdam.
9. Cycle the glass and check for proper operation.
