Front Skid Plate
FRONT SKID PLATEREMOVAL
1. Position a support under skid plate.

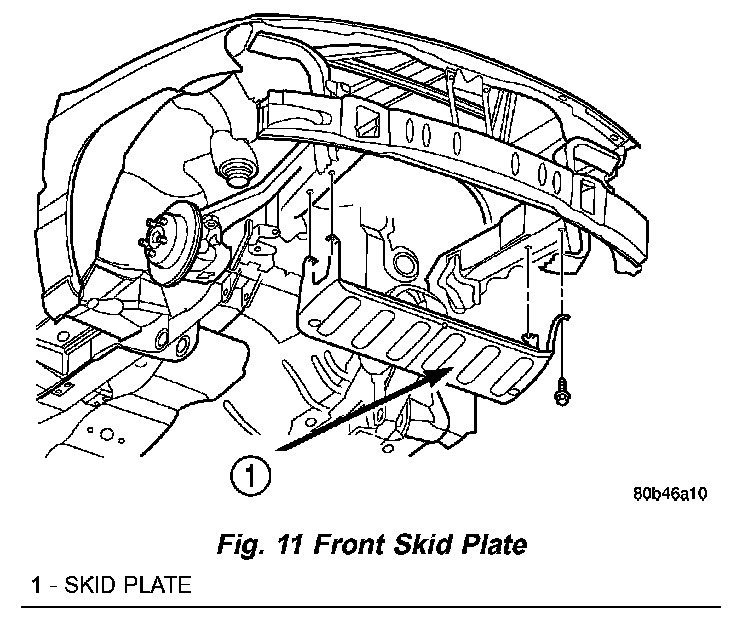

Fig. 11:
2. Remove bolts attaching skid plate to frame (Fig. 11).
3. Separate skid plate from frame.
INSTALLATION
1. Position skid plate on a support.
2. Raise it into position
3. Install bolts attaching skid plate to frame. Tighten bolts to 54 N.m (40 ft. lbs.) torque.
