Ignition Coil

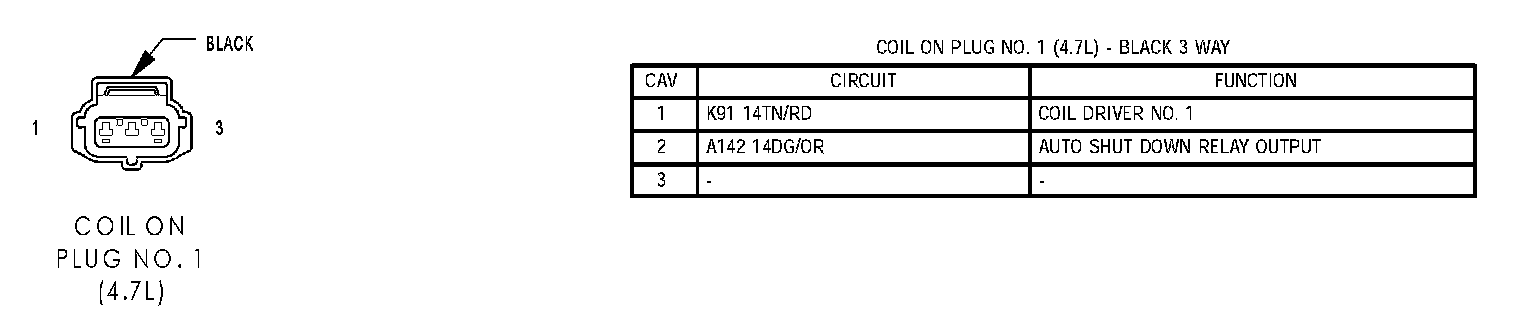

Coil On Plug No.1 (4.7L):






Coil On Plug No.2 (4.7L):






Coil On Plug No.3 (4.7L):

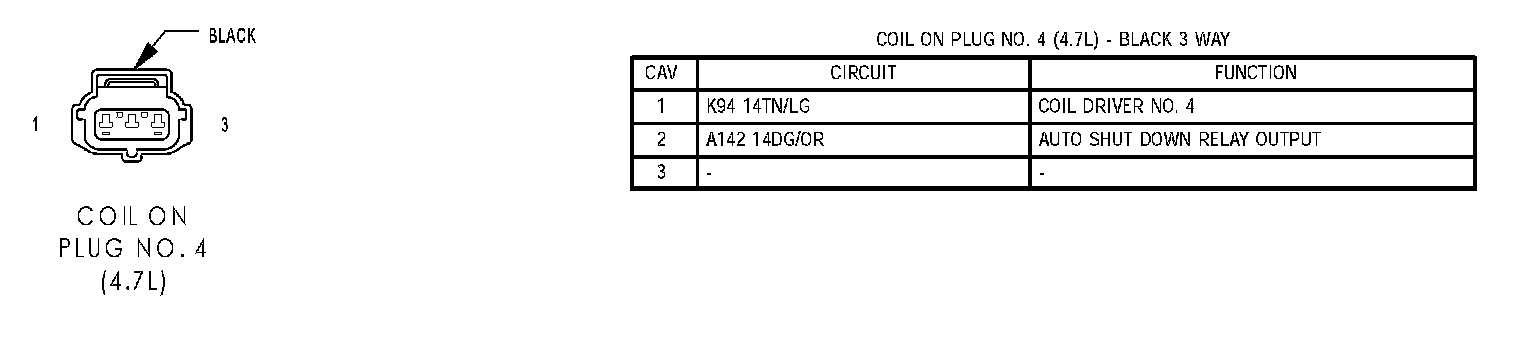

Coil On Plug No.4 (4.7L):






Coil On Plug No.5 (4.7L):






Coil On Plug No.6 (4.7L):

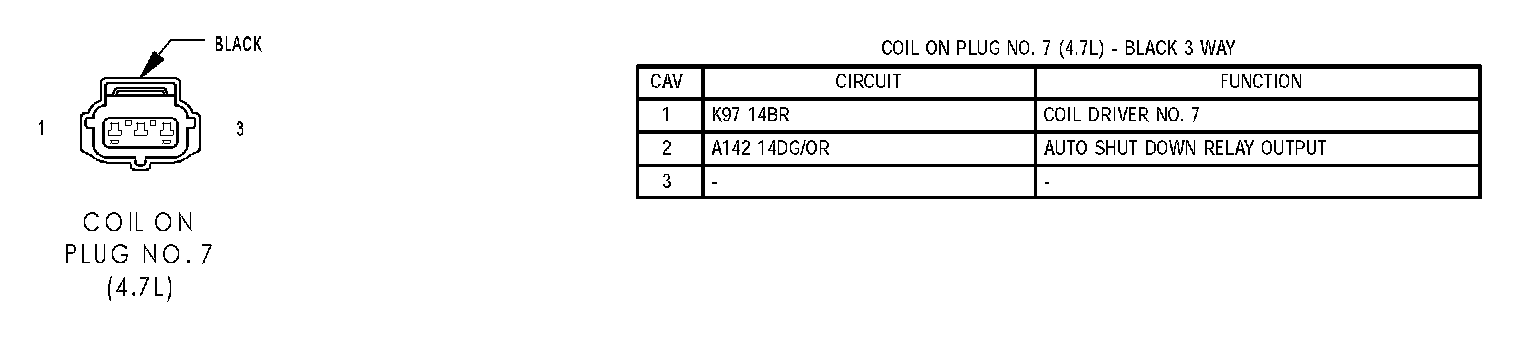

Coil On Plug No.7 (4.7L):

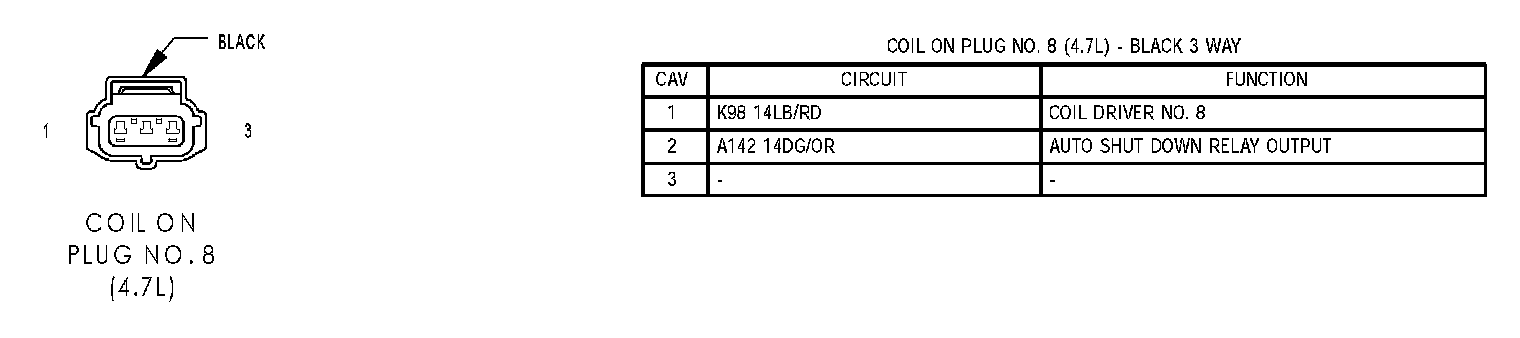

Coil On Plug No.8 (4.7L):
