Parking Lamp
>>
System Diagram
System Diagram

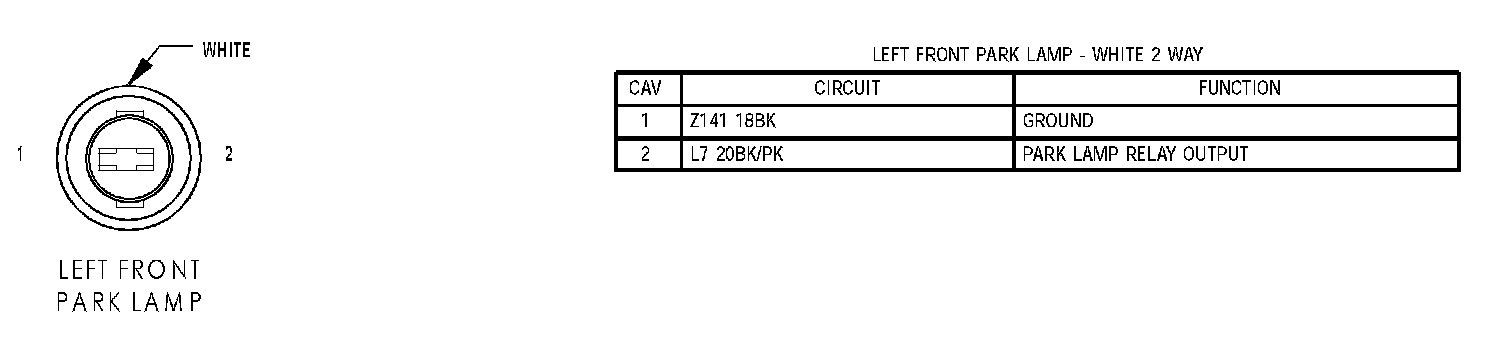

Left Front Park Lamp:

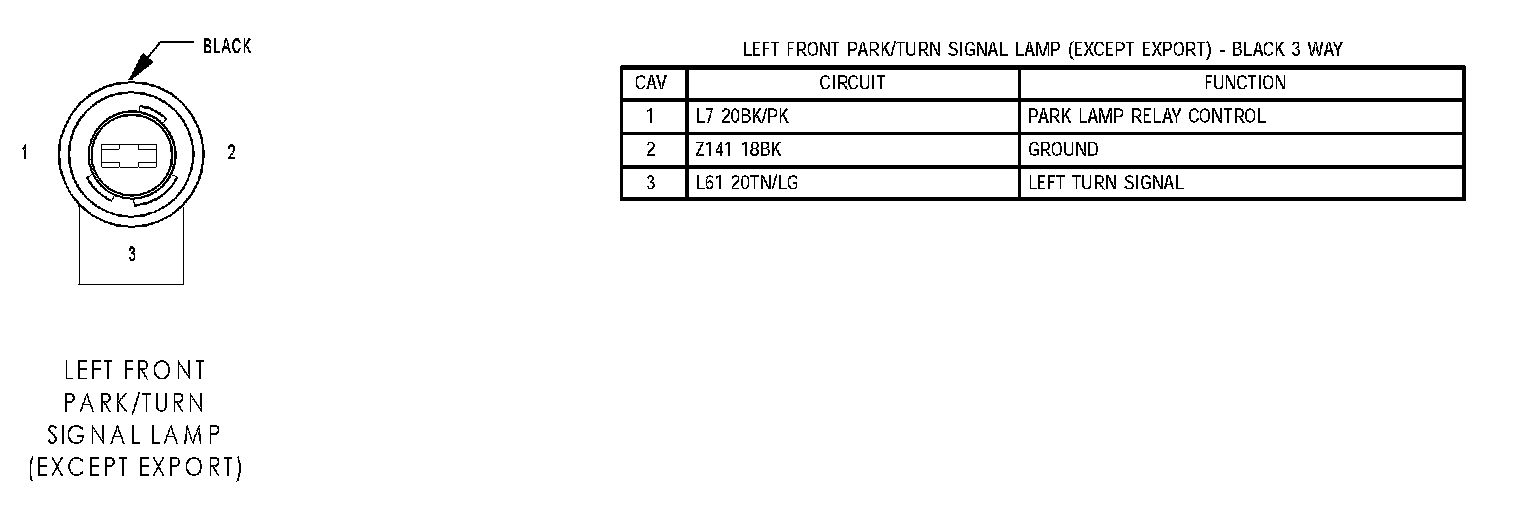

Left Front Park/Turn Signal Lamp (Except Export):

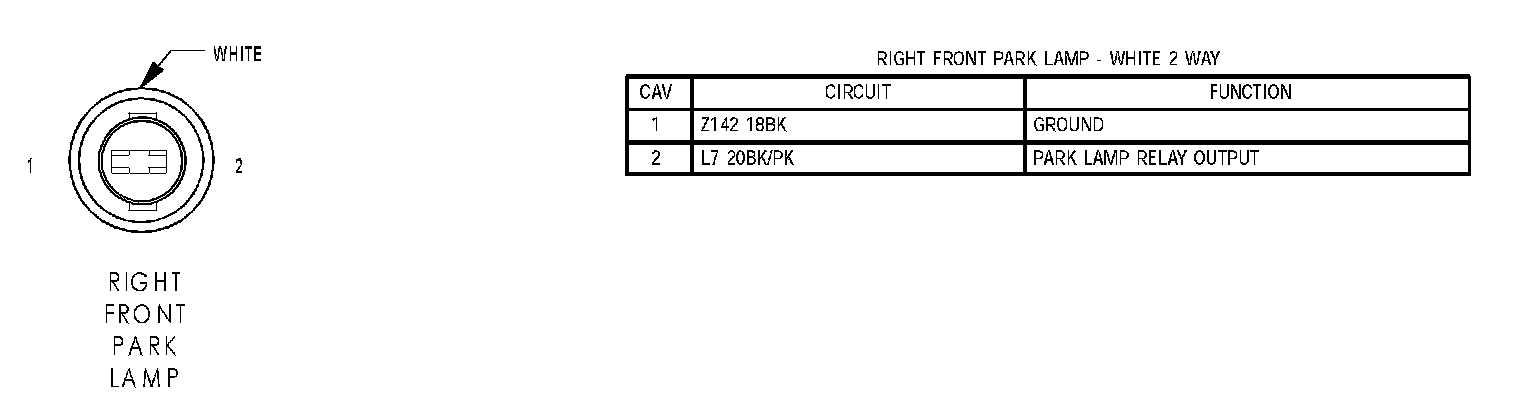

Right Front Park Lamp:

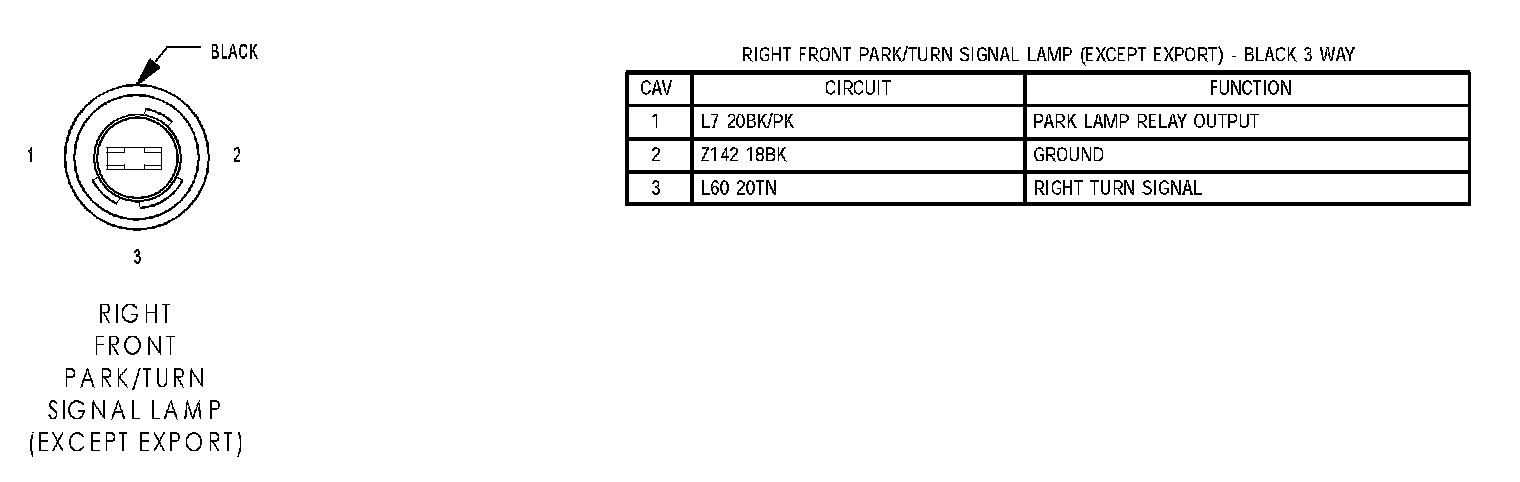

Right Front Park/Turn Signal Lamp (Except Export):
