Power Door Lock Actuator

Driver Door Lock Motor/Ajar Switch:

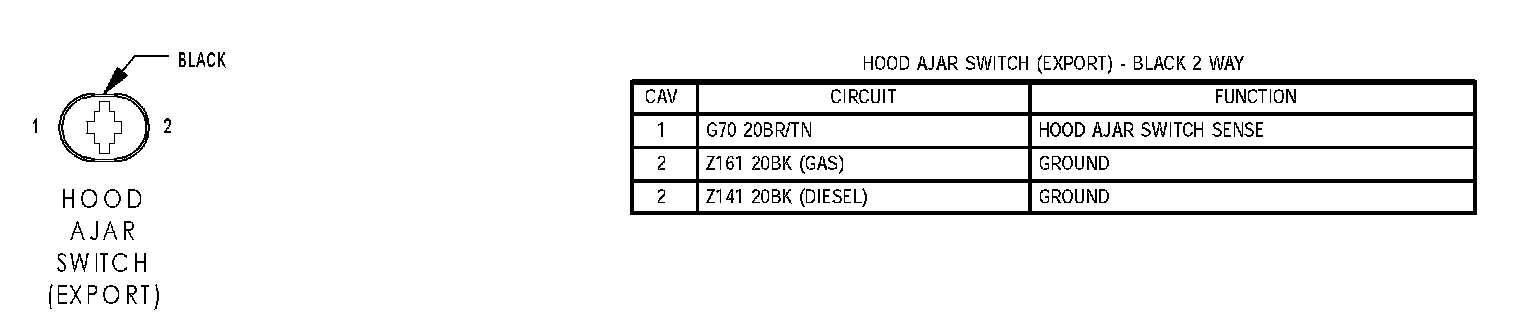

Hood Ajar Switch (Export):

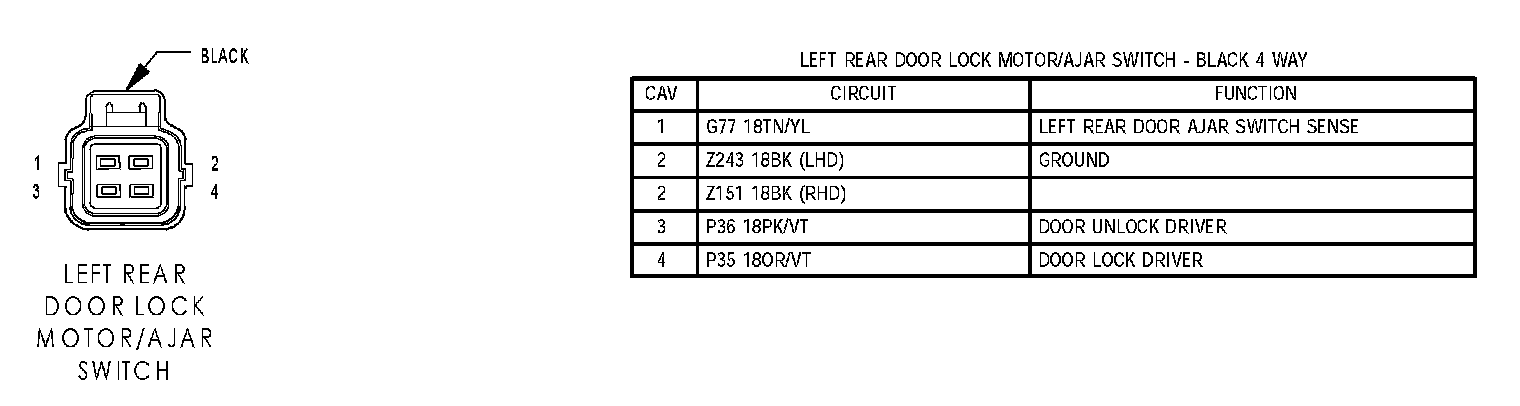

Left Rear Door Lock Motor/Ajar Switch:

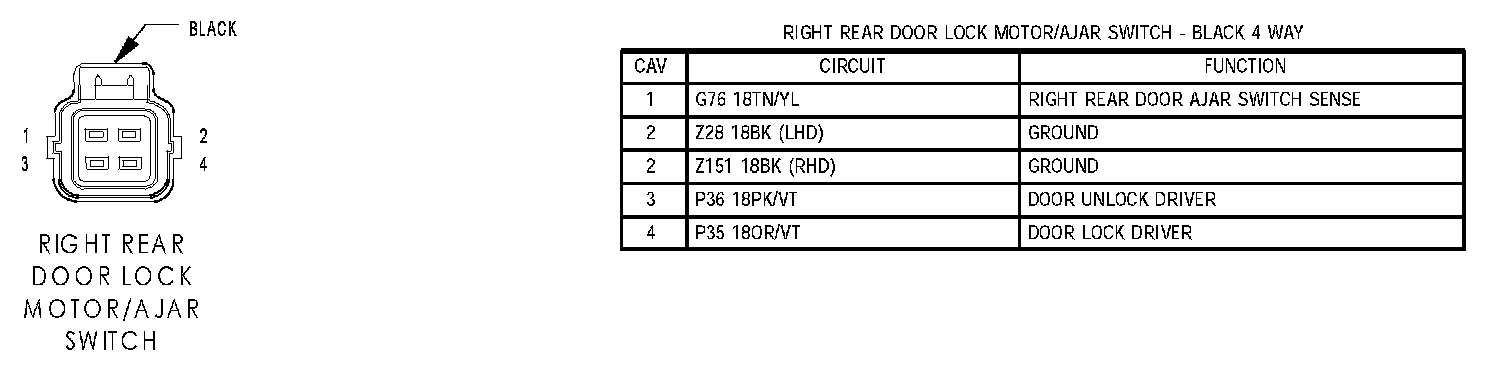

Right Rear Door Lock Motor/Ajar Switch:
