Seat Temperature Element
Seat Temperature Element

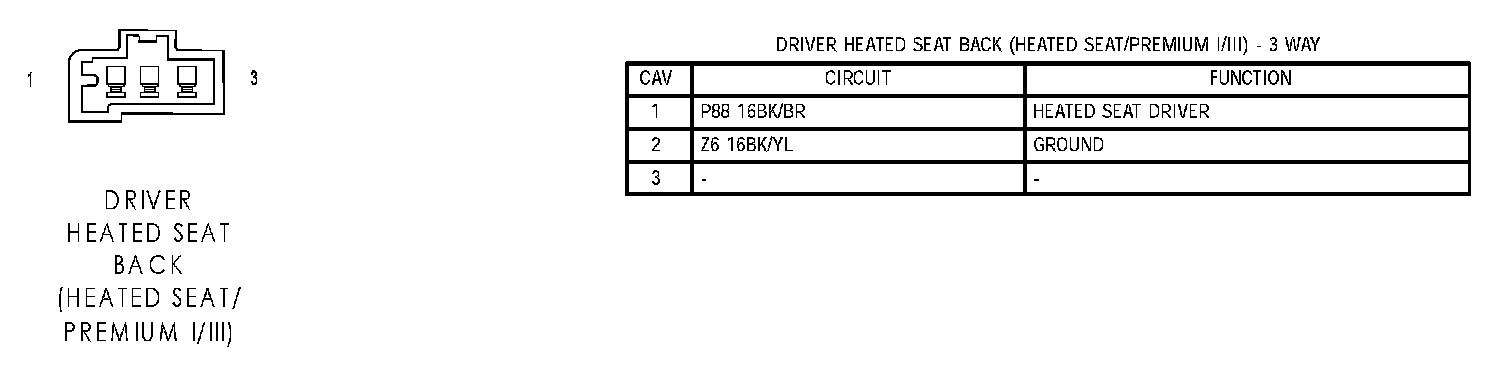

Driver Heated Seat Back (Heated Seat/Premium I/III):

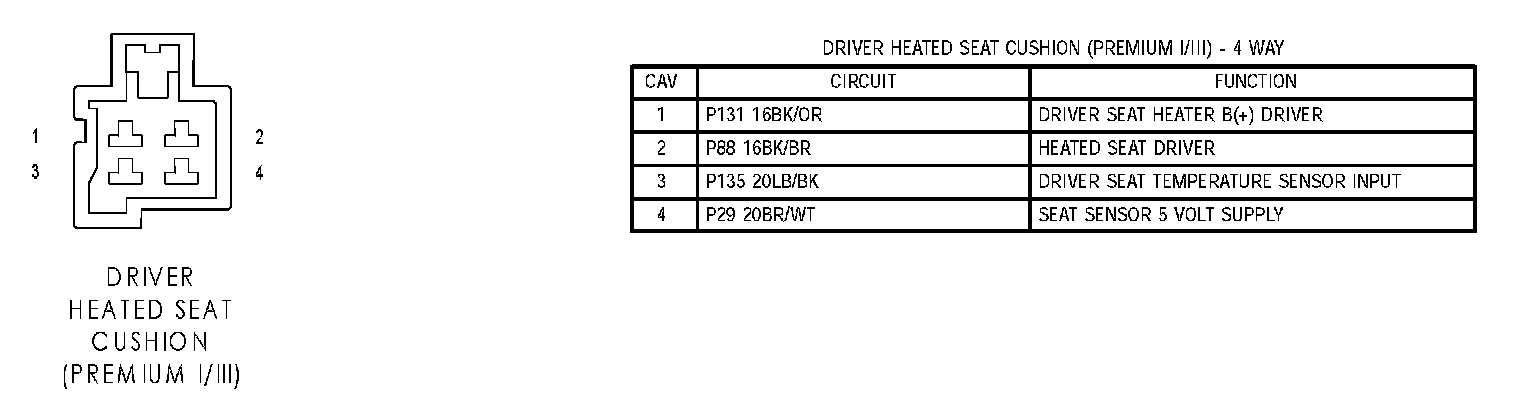

Driver Heated Seat Cushion (Premium I/III):
