Fog Lamp Unit Replacement

REMOVAL
1. Disengage the fog lamp electrical connector.

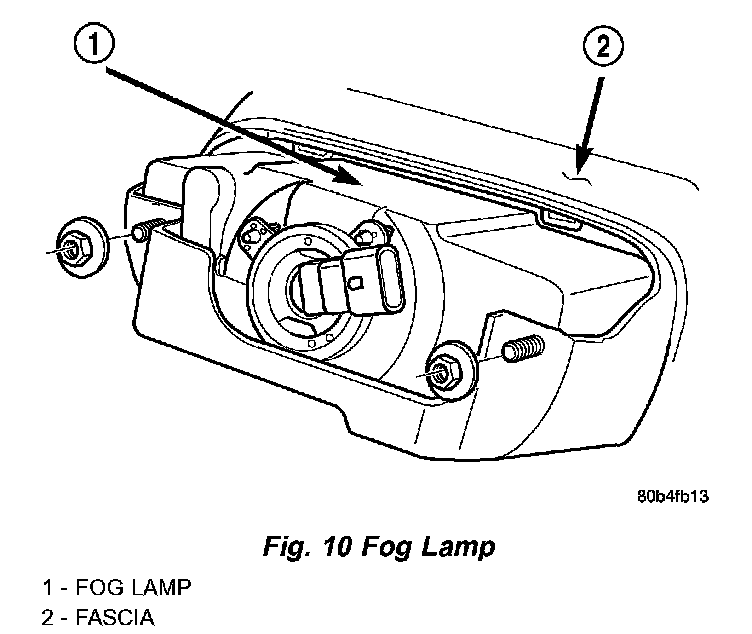

Fig.10 Fog Lamp:

2. Remove the nuts attaching fog lamp to fascia.
3. Separate the fog lamp from vehicle.

INSTALLATION
1. Position the fog lamp in fascia.
2. Install the nuts attaching fog lamp to fascia.
3. Engage the fog lamp electrical connector.
4. Align the fog lamp, if necessary.
