No Response From PCM (PCI Bus)

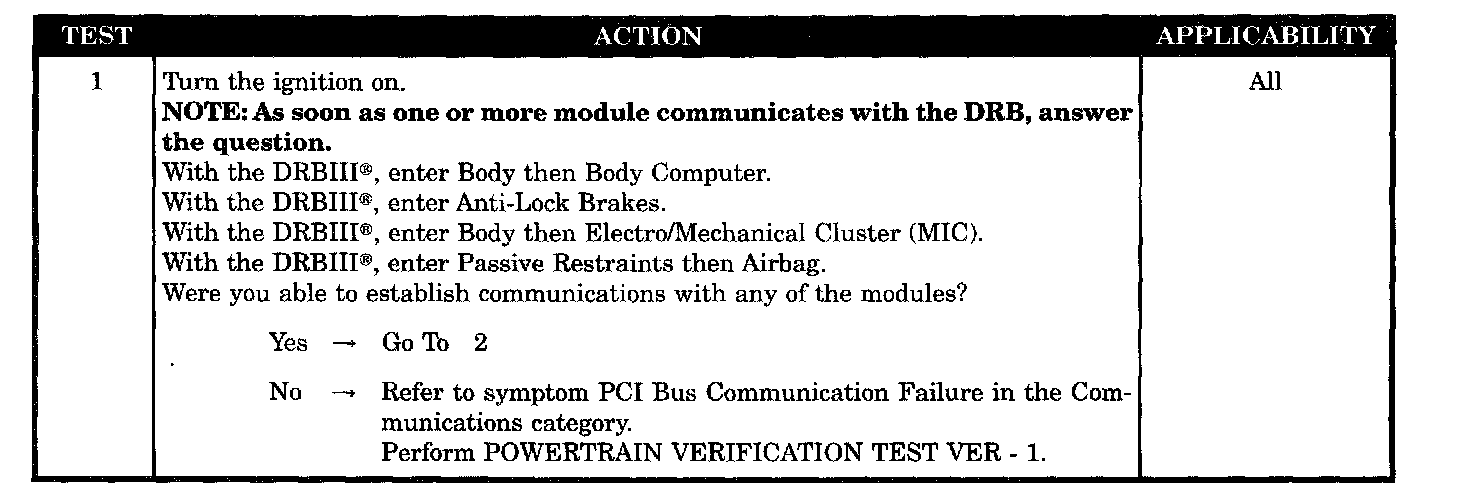

Test 1:

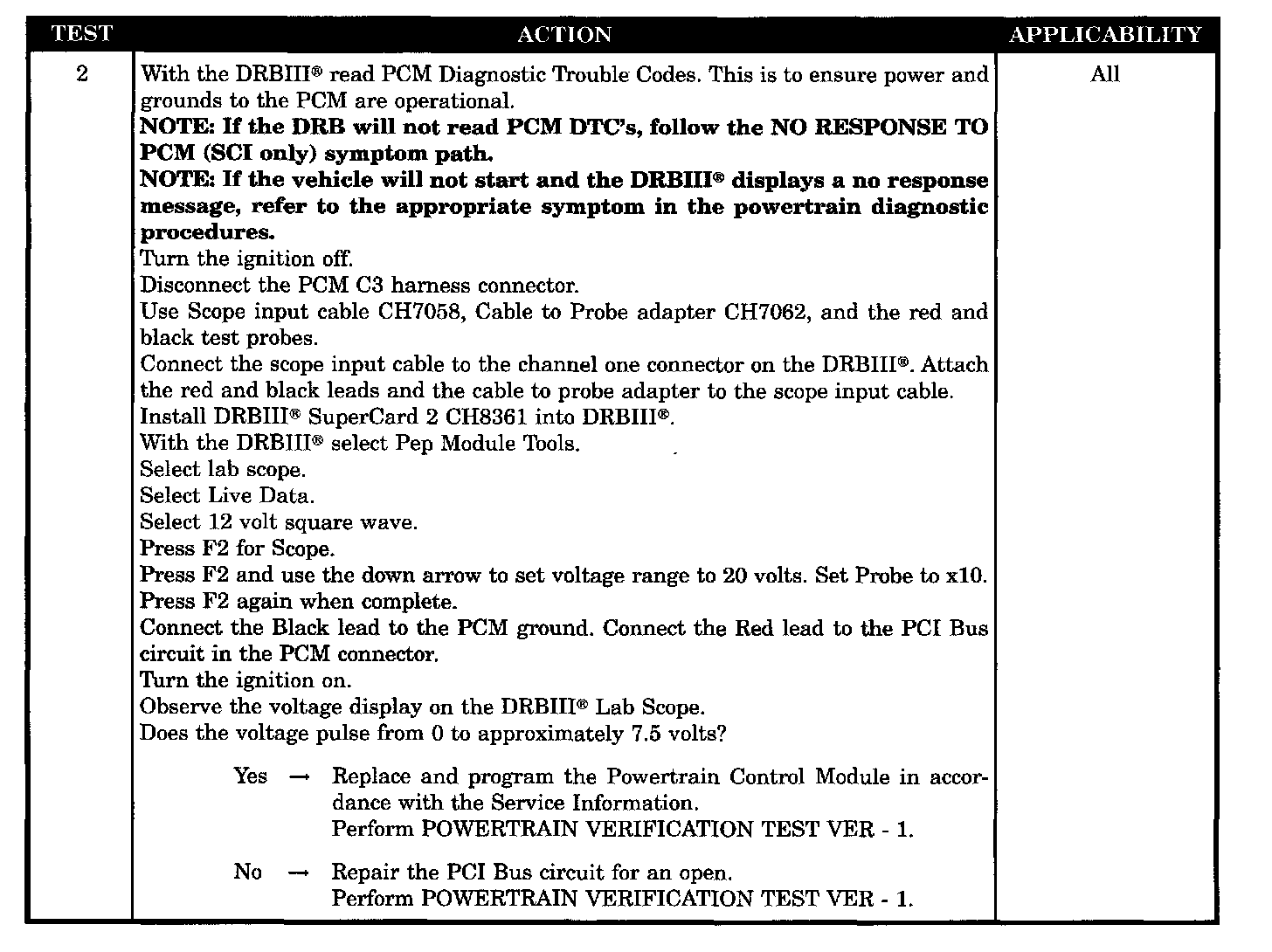

Test 2:
SYMPTOM
NO RESPONSE FROM
PCM
(
PCI BUS
) - GAS ONLY
POSSIBLE CAUSES
-
PCM
PCI
no response
-
PCI bus
circuit open
-
Powertrain control module
