Home >> Jeep Truck >> 2003 >> Grand Cherokee 2WD V8-4.7L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> System Schematics

System Schematics

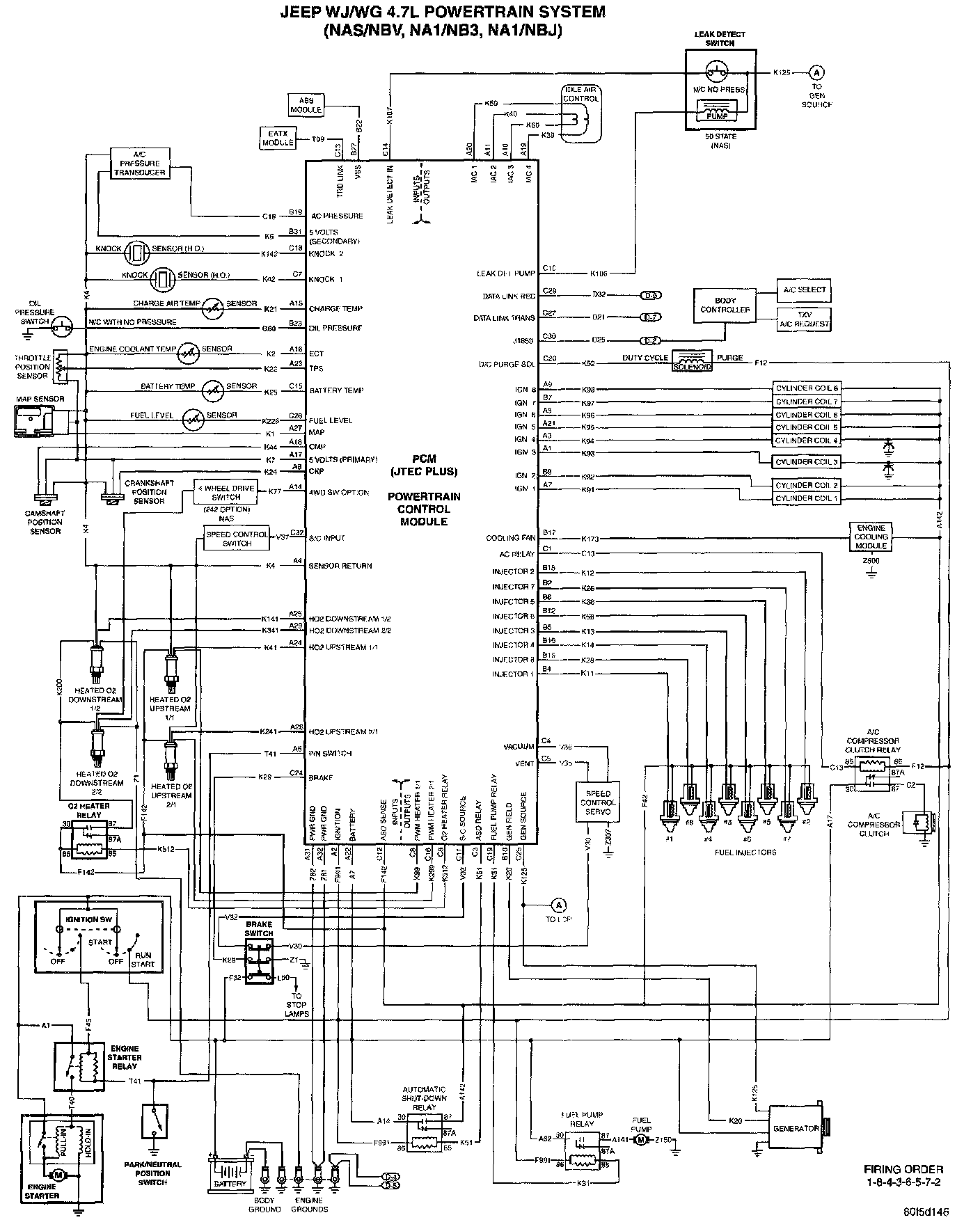

Jeep WJ/WG 4.7L Powertrain System (NAA/NVB, NAE/NBV, NA1/NBJ):

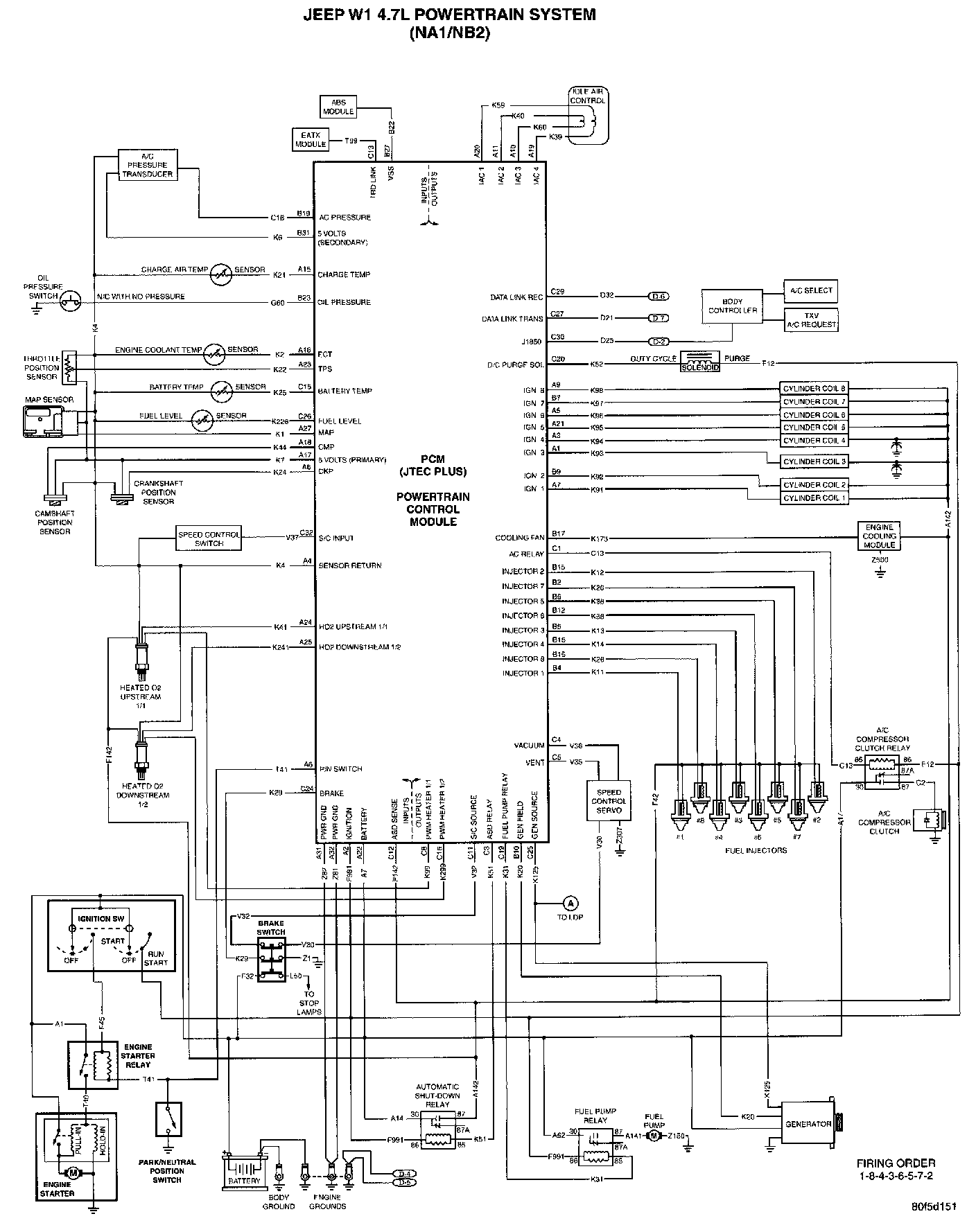

Jeep W1 4.7L Powertrain System (NA1/NB2):
