Control Module, A/T
Control Module, A/T

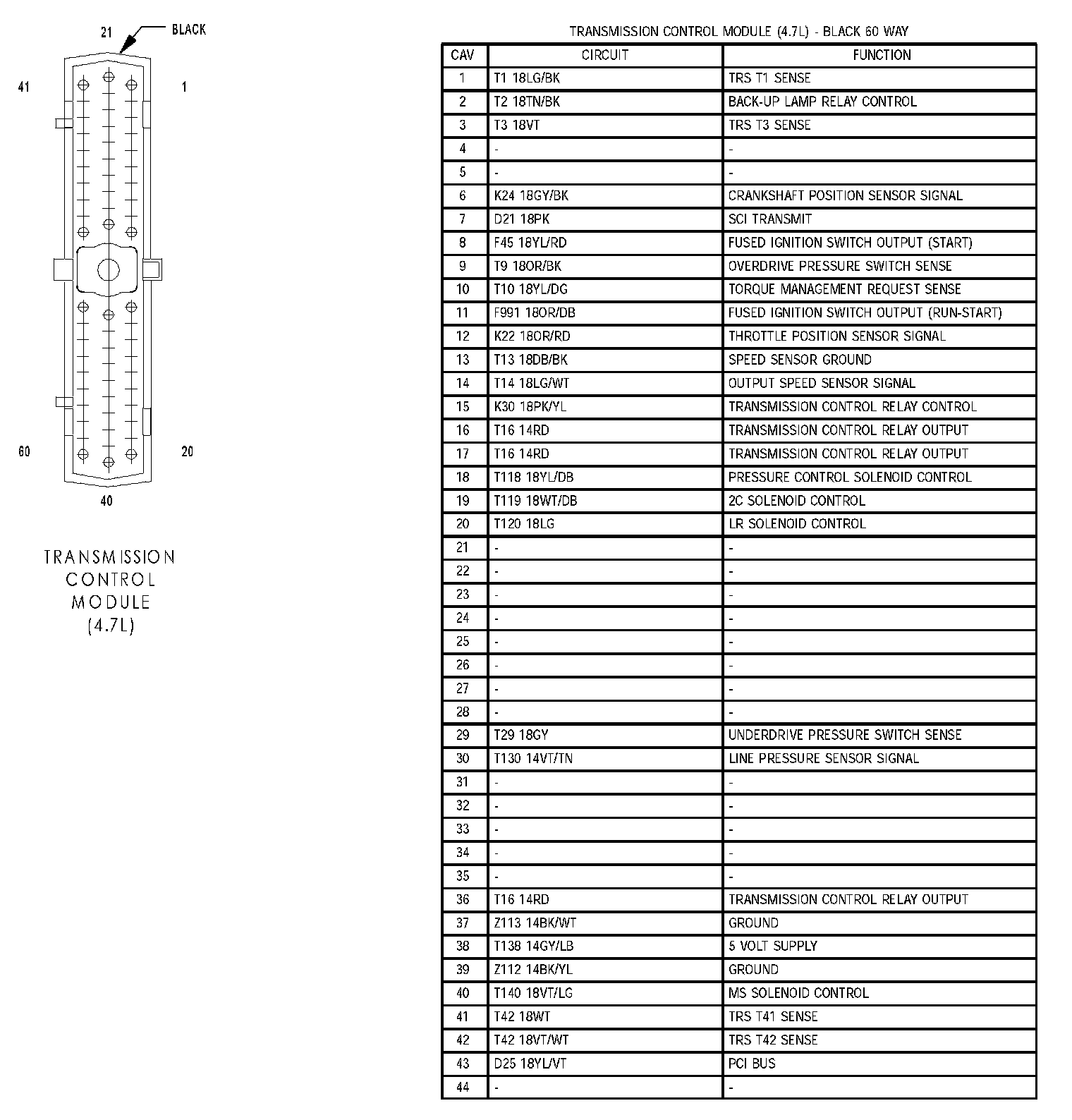

Transmission Control Module (4.7L) Part 1 Of 2:

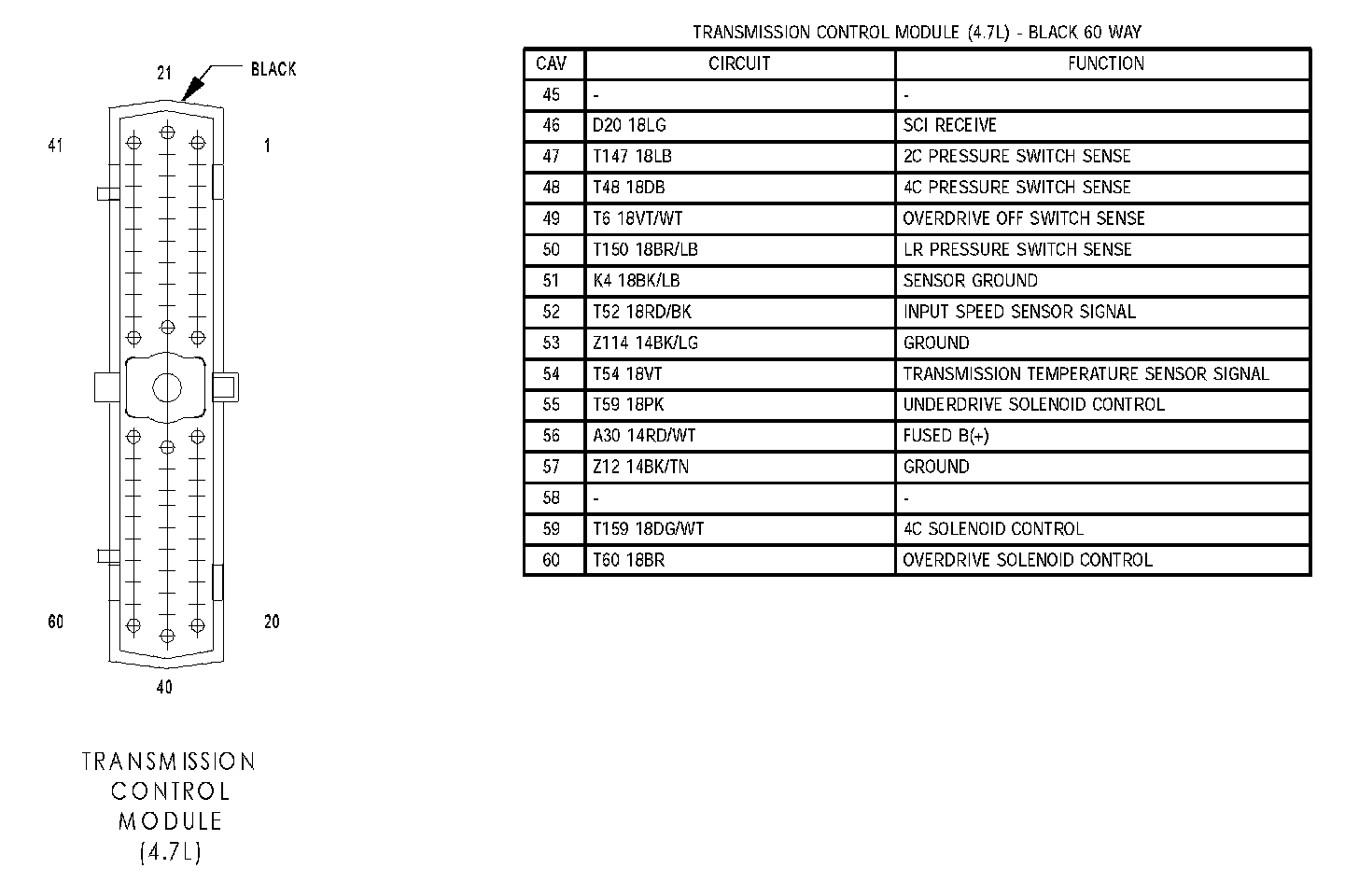

Transmission Control Module (4.7L) Part 2 Of 2:
